Home > Products > DIN Hydraulic Hose > High Tensile Wire Braided Flexible High Pressure Hose Manufacturer
High Tensile Wire Braided Flexible High Pressure Hose Manufacturer
- 600000 Meter / Meters per Month
- Xingang Qingdao port
- T/T Credit Card PayPal
Product Details
| Place of Origin: | Hebei, China | Brand Name: | YATAI | Model Number: | 5-102MM |
Product Description
High Tensile Wire Braided Flexible High Pressure Hose Manufacturer
High Tensile Wire Braided Flexible High Pressure Hose Manufacturer
Application:
Ideally Suited for High Pressure Hydraulic Oil Lines, Return Lines, Grease Lines, Water Lines and Power Steering Hoses
Rubber Hose Tube: Oil resistant Synthetic Rubber
Rubber Hose Reinforcement: High Tensile Steel Wire
Rubber Hose Cover: Abrasion, Ozone & Weather resistant Synthetic Rubber.
Working Temperature range: -40 °c to 121 °c.
Flexible High Pressure Hose Manufacturer (SAE 100R1AT DIN EN 853 1SN)
DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | m | |
5 | 3/16 | 4.8 | 9.5 | 11.8 | 25.0 | 3630 | 100 | 14280 | 89 | 0.19 | 50/100 |
6 | 1/4 | 6.4 | 11.1 | 13.4 | 22.5 | 3270 | 90 | 12840 | 102 | 0.21 | 50/100 |
8 | 5/16 | 7.9 | 12.7 | 15.0 | 21.5 | 3120 | 85 | 12280 | 114 | 0.24 | 50/100 |
10 | 3/8 | 9.5 | 15.1 | 17.4 | 18.0 | 2615 | 72 | 10280 | 127 | 0.33 | 50/100 |
13 | 1/2 | 12.7 | 18.3 | 20.6 | 16.0 | 2320 | 64 | 9180 | 178 | 0.41 | 50/100 |
16 | 5/8 | 15.9 | 21.4 | 23.7 | 13.0 | 1890 | 52 | 7420 | 203 | 0.45 | 50/100 |
19 | 3/4 | 19.0 | 25.4 | 27.7 | 10.5 | 1530 | 42 | 6000 | 241 | 0.58 | 50/100 |
25 | 1 | 25.4 | 33.3 | 35.6 | 8.8 | 1280 | 35.0 | 5020 | 305 | 0.88 | 50 |
32 | 1 1/4 | 31.8 | 40.5 | 43.5 | 6.3 | 920 | 25.0 | 3600 | 419 | 1.23 | 20/40 |
38 | 1 1/2 | 38.1 | 46.8 | 50.6 | 5.0 | 730 | 20.0 | 2860 | 508 | 1.51 | 20/40 |
51 | 2 | 50.8 | 60.2 | 64.0 | 4.0 | 580 | 16.0 | 2280 | 635 | 1.97 | 20/40 |
Flexible High Pressure Hose Manufacturer (SAE 100 R2AT DIN EN 853 2SN)
DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | m | |
5 | 3/16 | 4.8 | 11.1 | 14.1 | 41.4 | 6000 | 160 | 23720 | 89 | 0.32 | 50/100 |
6 | 1/4 | 6.4 | 12.7 | 15.7 | 40 | 5800 | 160 | 22840 | 102 | 0.36 | 50/100 |
8 | 5/16 | 7.9 | 14.3 | 17.3 | 36 | 5250 | 140 | 20000 | 114 | 0.45 | 50/100 |
10 | 3/8 | 9.5 | 16.7 | 19.7 | 33.1 | 4800 | 132 | 18840 | 127 | 0.54 | 50/100 |
13 | 1/2 | 12.7 | 19.8 | 23.1 | 27.6 | 4000 | 110 | 15720 | 178 | 0.68 | 50/100 |
16 | 5/8 | 15.9 | 23 | 26.3 | 25 | 3630 | 100 | 14280 | 203 | 0.8 | 50/100 |
19 | 3/4 | 19.0 | 27 | 30.2 | 21.5 | 3120 | 85 | 12280 | 241 | 0.94 | 50/100 |
25 | 1 | 25.4 | 34.9 | 38.9 | 16.5 | 2400 | 65 | 9420 | 305 | 1.35 | 50 |
32 | 1 1/4 | 31.8 | 44.5 | 49.6 | 12.5 | 1820 | 50 | 7140 | 419 | 2.15 | 20/40 |
38 | 1 1/2 | 38.1 | 50.8 | 56.0 | 9 | 1310 | 36 | 5140 | 508 | 2.65 | 20/40 |
51 | 2 | 50.8 | 63.5 | 68.6 | 8 | 1160 | 32 | 4560 | 635 | 3.42 | 20/40 |
Flexible High Pressure Hose Manufacturer Drawing:
Flexible High Pressure Hose Manufacturer Processing Procedures:
Flexible High Pressure Hose Manufacturer Related Products:
Flexible High Pressure Hose Manufacturer Equipment:

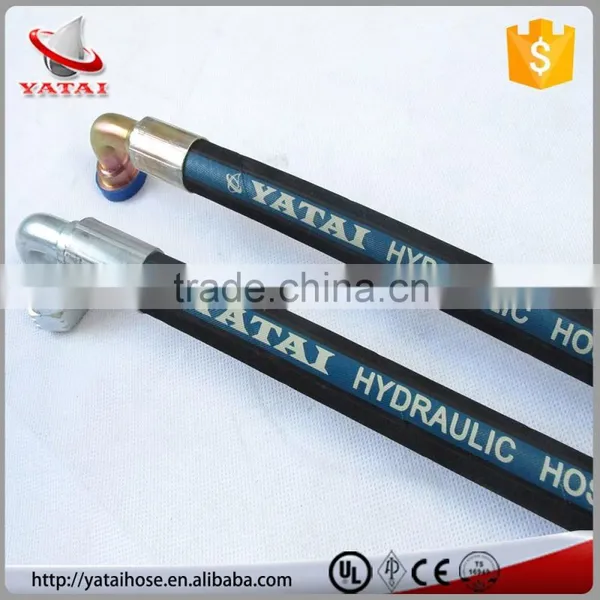

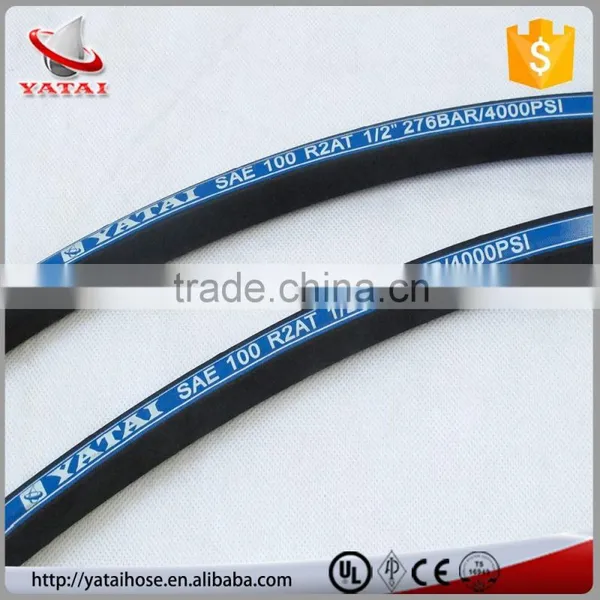

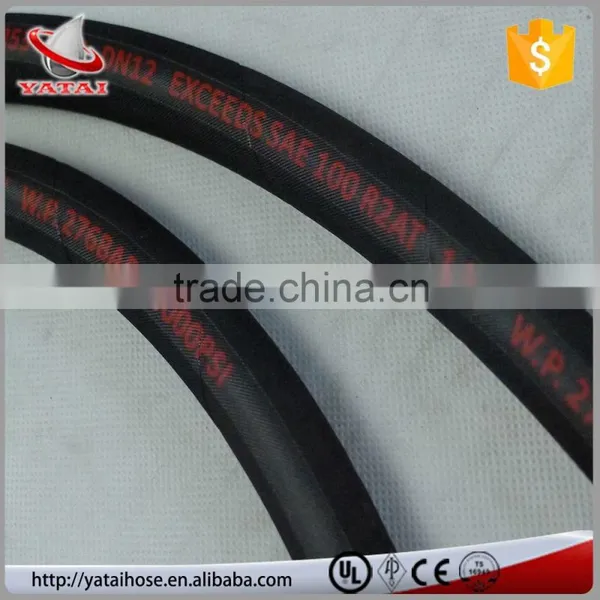

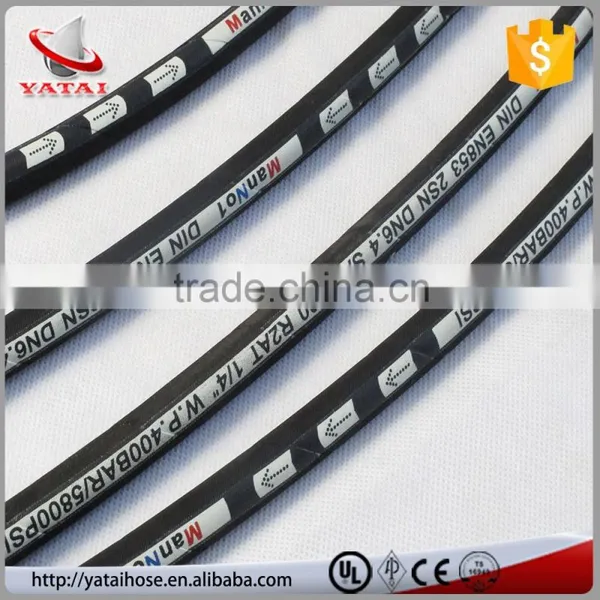

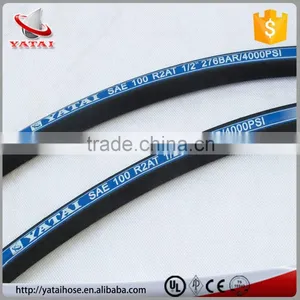

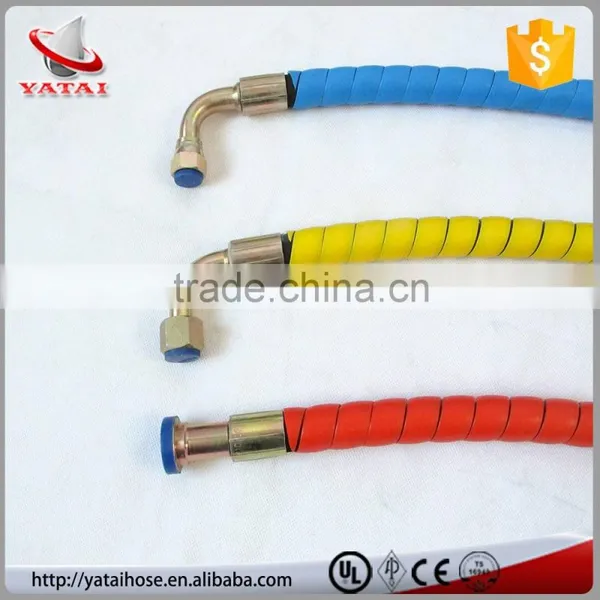

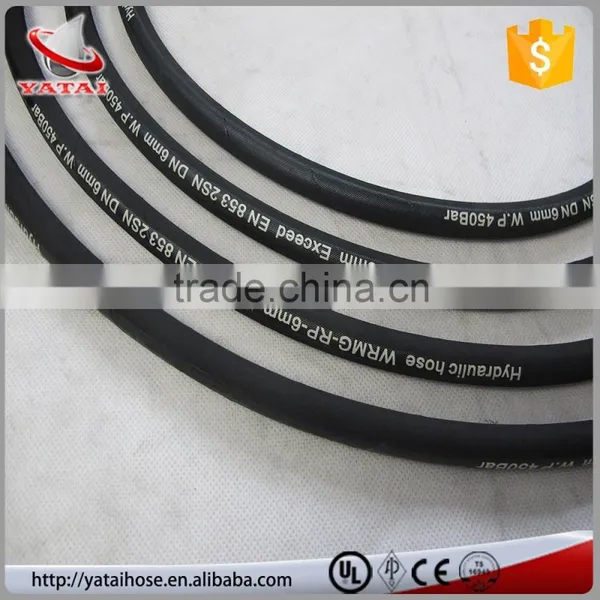

Flexible High Pressure Hose Manufacturer Pictures:
Flexible High Pressure Hose Manufacturer Feedback and Ceitification:
Flexible High Pressure Hose Manufacturer Material :
High Tensile Wire Braided Flexible High Pressure Hose Manufacturer
HENGSHUI YATAI ESPECIAL RUBBER PRODUCTS CO.,LTD is established in 2001 year.
HIGH QUALITY IS OUR COMPANY SOUL!!!
we specialized in rubber hoses for more than 15 years, there are near 100 workers and
technology staff .10 person with many years experience.
Italy VP high speed braided machine of 6 sets improve production capacity and quality .
Flexible High Pressure Hose Manufacturer Exhibition:
Our Factory:
Welcome to Inquiry for High Tensile Wire Braided Flexible High Pressure Hose Manufacturer:
:
A:Usually, 30%T/T in advanced, balance be paid against scan copy of B/L within 7 days for High Tensile Wire Braided Flexible High Pressure Hose Manufacturer.
Q2: How many do you accept for min order?
A:Yes. only for $100 min order.
Q3:Can you produce the hose with our own brand?
A:Yes.it is available for High Tensile Wire Braided Flexible High Pressure Hose Manufacturer.
Q4:What is the warrantee period?
A:There is 1 year warranty from date of EX-factory.
