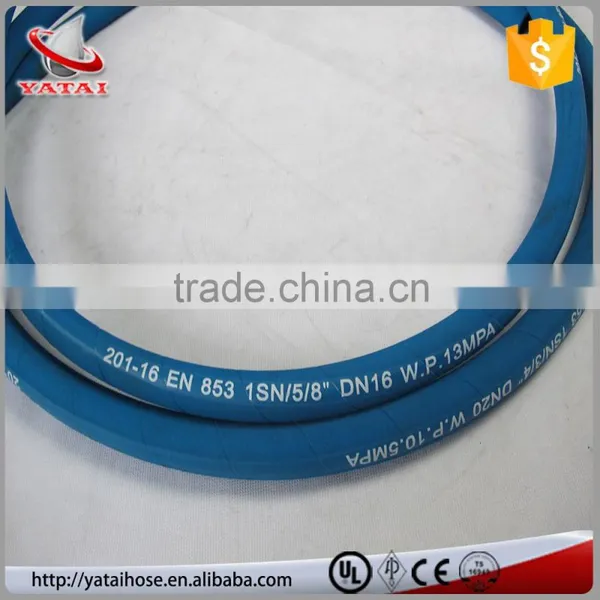

High Quality Wire Braided Oil Resistant Flexible Rubber Hose Manufacturer
- 600000 Meter / Meters per Month
- Xingang Port
- T/T Credit Card PayPal
Product Details
| Place of Origin: | Hebei, China | Brand Name: | YATAI | Model Number: | 6-102mm |
Product Description
High Quality Wire Braided Oil Resistant Flexible Rubber Hose Manufacturer
High Quality Wire Braided Oil Resistant Flexible Rubber Hose Manufacturer
R1 AT HYDRAULIC TUBE:Oil resistant synthetic rubber
rubber hose Reinforcement:One or two steel wire braided layer
rubber hose Cover:Oil, abrasion and weather resistant synthetic rubber. MSHA approved
rubber hose Temperature Range:-40° to 100°C (-40° to 212°F), petroleum base fluids intermittent to 125°C (257°F).
rubber hose Application:For medium pressure hydraulic oil lines, return lines, grease lines, water lines and power steering hoses.
Flexible Rubber Hose Manufacturer (SAE 100R1AT, EN 853 1SN)
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
| 5 | 3/16 | 4.8 | 9.5 | 11.8 | 25.0 | 3630 | 100.0 | 14280 | 89 | 0.19 | 50/100 |
| 6 | 1/4 | 6.4 | 11.1 | 13.4 | 22.5 | 3270 | 90.0 | 12840 | 102 | 0.21 | 50/100 |
| 8 | 5/16 | 7.9 | 12.7 | 15.0 | 21.5 | 3120 | 85.0 | 12280 | 114 | 0.24 | 50/100 |
| 10 | 3/8 | 9.5 | 15.1 | 17.4 | 18.0 | 2615 | 72.0 | 10280 | 127 | 0.33 | 50/100 |
| 13 | 1/2 | 12.7 | 18.3 | 20.6 | 16.0 | 2320 | 64.0 | 9180 | 178 | 0.41 | 50/100 |
| 16 | 5/8 | 15.9 | 21.4 | 23.7 | 13.0 | 1890 | 52.0 | 7420 | 203 | 0.45 | 50/100 |
| 19 | 3/4 | 19.0 | 25.4 | 27.7 | 10.5 | 1530 | 42.0 | 6000 | 241 | 0.58 | 50/100 |
| 25 | 1 | 25.4 | 33.3 | 35.6 | 8.8 | 1280 | 35.0 | 5020 | 305 | 0.88 | 50 |
| 32 | 1 1/4 | 31.8 | 40.5 | 43.5 | 6.3 | 920 | 25.0 | 3600 | 419 | 1.23 | 20/40 |
| 38 | 1 1/2 | 38.1 | 46.8 | 50.6 | 5.0 | 730 | 20.0 | 2860 | 508 | 1.51 | 20/40 |
| 51 | 2 | 50.8 | 60.2 | 64.0 | 4.0 | 580 | 16.0 | 2280 | 635 | 1.97 | 20/40 |
Flexible Rubber Hose Manufacturer (SAE 100 R2AT/DIN EN 853 2SN)
DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
5 | 3/16 | 4.8 | 11.1 | 14.1 | 41.4 | 6000 | 160 | 23720 | 89 | 0.32 | 50/100 |
6 | 1/4 | 6.4 | 12.7 | 15.7 | 40 | 5800 | 160 | 22840 | 102 | 0.36 | 50/100 |
8 | 5/16 | 7.9 | 14.3 | 17.3 | 36 | 5250 | 140 | 20000 | 114 | 0.45 | 50/100 |
10 | 3/8 | 9.5 | 16.7 | 19.7 | 33.1 | 4800 | 132 | 18840 | 127 | 0.54 | 50/100 |
13 | 1/2 | 12.7 | 19.8 | 23.1 | 27.6 | 4000 | 110 | 15720 | 178 | 0.68 | 50/100 |
16 | 5/8 | 15.9 | 23 | 26.3 | 25 | 3630 | 100 | 14280 | 203 | 0.8 | 50/100 |
19 | 3/4 | 19.0 | 27 | 30.2 | 21.5 | 3120 | 85 | 12280 | 241 | 0.94 | 50/100 |
25 | 1 | 25.4 | 34.9 | 38.9 | 16.5 | 2400 | 65 | 9420 | 305 | 1.35 | 50 |
32 | 1 1/4 | 31.8 | 44.5 | 49.6 | 12.5 | 1820 | 50 | 7140 | 419 | 2.15 | 20 to 40 |
38 | 1 1/2 | 38.1 | 50.8 | 56.0 | 9 | 1310 | 36 | 5140 | 508 | 2.65 | 20 to 40 |
51 | 2 | 50.8 | 63.5 | 68.6 | 8 | 1160 | 32 | 4560 | 635 | 3.42 | 20 to 40 |
Flexible Rubber Hose Manufacturer Processing Procedures:
Flexible Rubber Hose Manufacturer Related Products:
Flexible Rubber Hose Manufacturer Equipment:
Flexible Rubber Hose Manufacturer Pictures:
Flexible Rubber Hose Manufacturer Feedback and Ceitification:
Flexible Rubber Hose Manufacturer Material :
High Quality Wire Braided Oil Resistant Flexible Rubber Hose Manufacturer
HENGSHUI YATAI ESPECIAL RUBBER PRODUCTS CO.,LTD is established in 2001 year.
HIGH QUALITY IS OUR COMPANY SOUL!!!
we specialized in rubber hoses for more than 15 years, there are near 100 workers and
technology staff .10 person with many years experience.
Italy VP high speed braided machine of 6 sets improve production capacity and quality .
Flexible Rubber Hose Manufacturer Exhibition:
Our Factory:
Welcome to Inquiry for High Quality Wire Braided Oil Resistant Flexible Rubber Hose Manufacturer:
Contact Us
- Hengshui Yatai Especial Rubber Products Co., Ltd.
- Contact nameJulie Ren
- Phone86-318-2129985
- AddressNo.1449,Yongan Road Hengshui,Hebei
-
