Wire Spiral EN 856 4SP High Tensile Flexible Hydraulic Hose
Wire Spiral EN 856 4SP High Tensile Flexible Hydraulic Hose
Tube : Oil resistant synthetic rubber
Reinforcement : Two,Four Six high tensile steel wire spiral layers
Cover : Abrasion and weather resistant synthetic rubber
Temperature range : -40 °c to 100 °c
Flexible Hydraulic Hose DIN EN 856 4SP
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | |
| 10 | 3/8 | 9.5 | 17.5 | 21.4 | 45.0 | 6500 | 180.0 | 26000 | 180 | 0.78 |
| 13 | 1/2 | 12.7 | 20.2 | 24.6 | 41.5 | 6000 | 166.0 | 24000 | 230 | 0.93 |
| 16 | 5/8 | 15.9 | 23.8 | 28.2 | 35.0 | 5000 | 140.0 | 20000 | 250 | 1.17 |
| 19 | 3/4 | 19.0 | 28.2 | 32.2 | 35.0 | 5000 | 140.0 | 20000 | 300 | 1.48 |
| 25 | 1 | 25.4 | 35.5 | 39.7 | 28.0 | 4000 | 112.0 | 16000 | 340 | 2.02 |
| 32 | 1-1/4 | 31.8 | 46.0 | 50.8 | 21.0 | 3000 | 84.0 | 12000 | 460 | 3.05 |
| 38 | 1-1/2 | 38.1 | 52.4 | 57.2 | 18.5 | 2700 | 74.0 | 10800 | 560 | 3.52 |
| 51 | 2 | 50.8 | 65.3 | 69.8 | 16.5 | 2400 | 66.0 | 9600 | 660 | 5.20 |
Flexible Hydraulic Hose DIN EN 856 4SH
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | |
| 19 | 3/4 | 19 | 29.2 | 33 | 42 | 6090 | 168 | 24360 | 280 | 1.61 |
| 25 | 1 | 25.4 | 36 | 39.9 | 38 | 5510 | 152 | 22040 | 340 | 2 |
| 32 | 1-1/4 | 31.8 | 42.9 | 47.1 | 32.5 | 4710 | 130 | 19850 | 460 | 2.64 |
| 38 | 1-1/2 | 38.1 | 49.8 | 55.1 | 29 | 4205 | 116 | 16820 | 560 | 3.36 |
| 51 | 2 | 50.8 | 64.2 | 69.7 | 25 | 3625 | 100 | 14500 | 700 | 4.98 |
Flexible Hydraulic Hose Sectional Drawing:
Flexible Hydraulic Hose Processing Procedures:
Flexible Hydraulic Hose Related Products:
Flexible Hydraulic Hose Equipment:

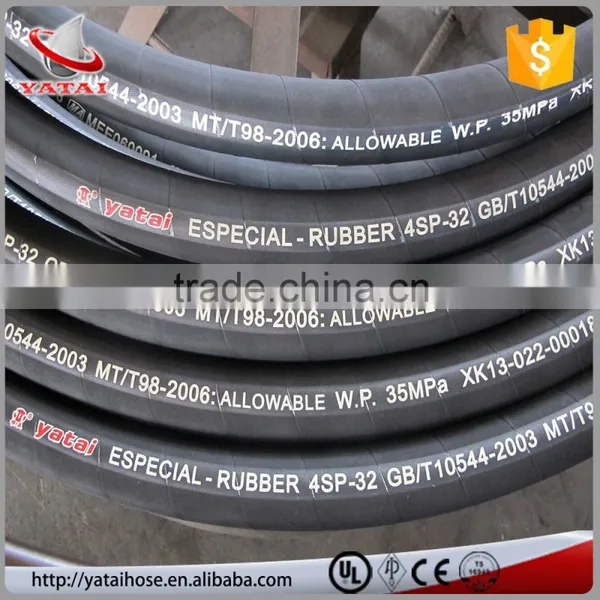

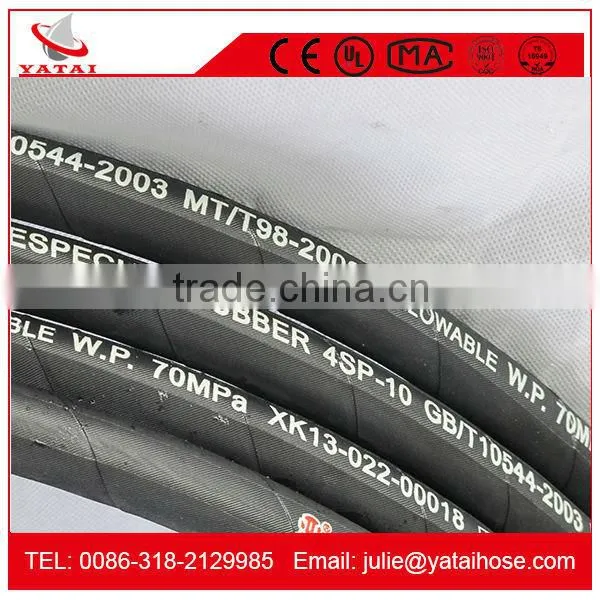

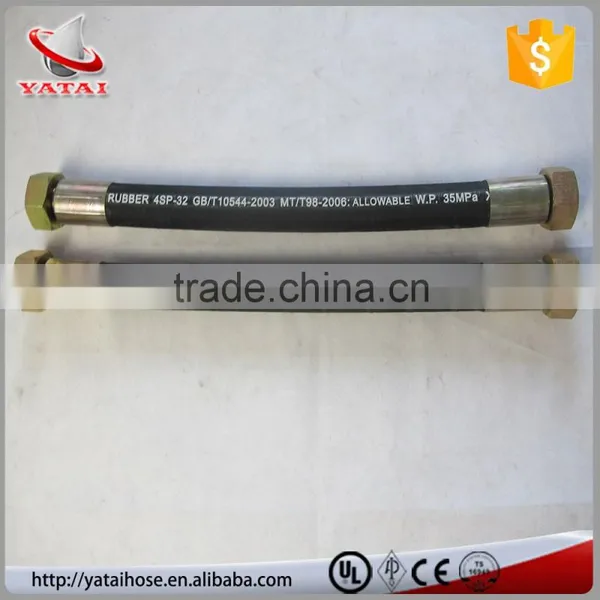

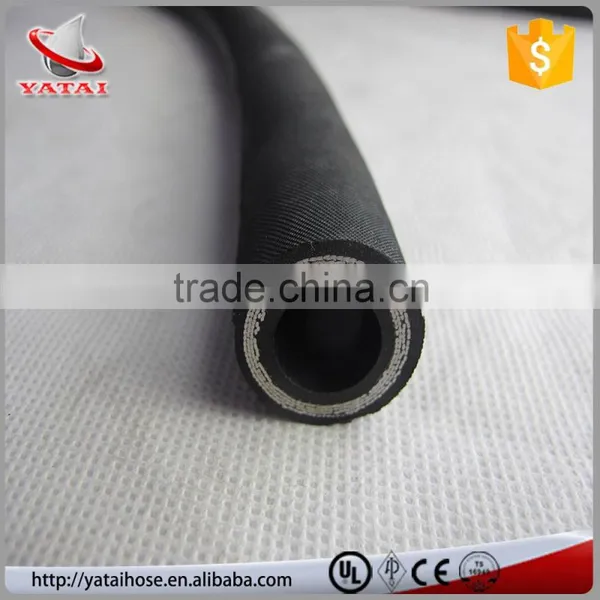

Flexible Hydraulic Hose Pictures:
Flexible Hydraulic Hose Feedback and Certification:
Flexible Hydraulic Hose Raw Material :
Wire Spiral EN 856 4SP High Tensile Flexible Hydraulic Hose
HENGSHUI YATAI ESPECIAL RUBBER PRODUCTS CO.,LTD is established in 2001 year.
QUALITY IS OUR COMPANY SOUL!!!
MAIN PRODUCT TYPE |
PRODUCT DETAILS |
Hydraulic Hose and Fitting |
Steel Wire Braided Reinforcement Hose(R1 R2 1SN 2SN 1SC 2SC R16 R17) |
Steel Wire Spiral Reinforcement Hose(2SP 4SP 4SH 6SP R9 R12 R13 R15) | |
Fibre Braided Covered Hose (R5) | |
Acid and Alkali Resistant Rubber Hose | |
Air Screw Compressor Hose | |
Middle Pressure Fibre Reinforcement Hose(R3 R6 1TE 2TE 3TE) | |
Thermoplastic Hose(SAE100R7 SAE100R8) | |
Nylon Hose(Single and Double Hose) | |
Industrial Hose |
Air/Water/Oil/Fuel/Steam/Chemical Suction and Discharge Hose |
Special Hose |
Concrete Pump Hose, High Pressure Drilling Hose, Inflatable Packers |
Machine Equipment |
Crimping Machine, Cutting Machine |
Flexible Hydraulic Hose Exhibition:
Our Factory:
Welcome to Inquiry for Wire Spiral EN 856 4SP High Tensile Flexible Hydraulic Hose:
