PPGI, RAL Color Coated Galvanized Steel Coil
<<WHAT IS PPGI PPGL COILS
1) Introduction: PPGI Coils PPGI Steel Coil PPGI Prepainted Galvanized Steel Coil
PPGI is pre-painted galvanised iron, also known as pre-coated steel, coil coated steel, color coated steel etc., typically with a hot dip zinc coated steel substrate.
The term is an extension of GI which is a traditional abbreviation for Galvanised Iron. Today the term GI typically refers to essentially pure zinc (>99%) continuously hot dip coated steel, as opposed to batch dip processes. PPGI refers to factory pre-painted zinc coated steel, where the steel is painted before forming, as opposed to post painting which occurs after forming.
The hot dip metallic coating process is also used to manufacture steel sheet and coil with coatings of aluminium, or alloy coatings of zinc/aluminium, zinc/iron and zinc/aluminium/magnesium which may also be factory pre-painted. While GI may sometimes be used as a collective term for various hot dip metallic coated steels, it more precisely refers only to zinc coated steel. Similarly, PPGI may sometimes be used as a general term for a range of metallic coated steels that have been pre-painted, but more often refers more precisely to pre-painted zinc coated steel.
Zinc coated steel substrate for PPGI is typically produced on a continuous galvanising line (CGL). The CGL may include a painting section after the hot dip galvanising section, or more commonly the metallic coated substrate in coil form is processed on a separate continuous paint line (CPL). Metallic coated steel is cleaned, pre-treated, applied with various layers of organic coatings which can be paints, vinyl dispersions, or laminates. The continuous process used to apply these coatings is often referred to as Coil Coating.
The steel thus produced in this process is a prepainted, prefinished and ready for further processing into finished products or components. to use material.
The coil coating process may be used for other substrates such as aluminium, or aluminium, stainless steel or alloy coated steel other than "pure" zinc coated steel. However, only "pure" zinc coated steel is typically referred to as PPGI. For example PPGL may be used for pre-painted 55%Al/Zn alloy-coated steel (pre-painted GALVALUME(r) steel*)
2) steel iron sheet coil sheet Specifications:
NAME | PPGI coil | GALVANIZED coil | GALVALUME/ALUZINC |
CERTIFICATE | SGS; BV; ISO9001:2008 | ||
STANDARD
|
JIS G3302 GB/T-12754-2006 EN10142 | ASTM A653 JIS G3302 SGCC/SGCH GB/T2518 European Standard | ASTM A792 JIS G3321 JIS G3317
|
GRADE
| CGCC CGCH CGCD1-CGCD3 CGC340-CGC570 GRADE
| SS GRADE33-80 SGCC SGCH SGCD1-SGCD3 SGC340-SGC570 SGCC DX51D | GRADE33-80 SGLCC SGLCD SGLCDD SGLC400-SGLC570 SZACC SZACH SZAC340R |
MODEL NO | 0.16MM-1.5MM*1250MM OR UNDER | (0.12-1.5)*1250MM OR UNDER | 0.16MM-1.5MM*1250MM OR UNDER |
TYPE
| PPGI Steel coil Steel sheets/plates Corrugated steel sheets/plates
| gi Steel coil Steel sheets/plates Corrugated steel sheets/plates | Steel coil Steel sheets/plates Corrugated steel sheets/plates
|
TECHNIQUE | Hot rolled-cold rolled -galvalume /galvanized -PPGI/PPGL | Hot rolled-cold rolled - galvanized | Hot rolled-cold rolled -galvalume /Aluzinc
|
SURFACE TREATMENT | Mini/regular/big/zero spangle, Chromate treatment /chromate-free treatment /untreated unoile/oiled, TENSION LEVELLERT SKIN PASS anti-fingerprint/un-anti-fingerprint Coating,color | Mini/regular/big/zero spangle, Chromate treatment /chromate-free treatment /untreated unoile/oiled, TENSION LEVELLERT SKIN PASS anti-fingerprint/un-anti-fingerprint, Coating
| |
APPLICATION | Structural use ,roofing, commercial use, wall, steel fence, industry, farm, shed, etc | ||
SPECIAL APPLICATION | Wear resistant steel, high- strength - steel plate | ||
3) steel iron sheet coil sheet Color Choise: Any RAL Color
Sea Blue-Cheapest and Most Popular:
Red Color Popular in Africa, India and Dubai Market:
Brick-style Paint-Special ordered and expensive choise

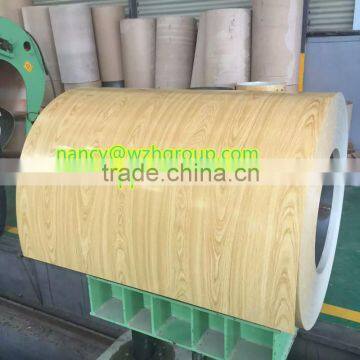

Other color for your choise:

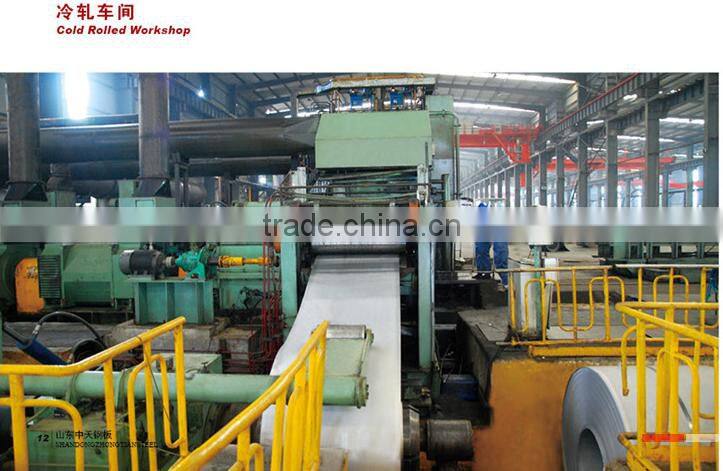

4) PPGI / PPGL Production Line it is typically produced on a continuous galvanising line (CGL)
PPGI Steel Coil Production Line & Storage:
5) Application:
PPGI coil PPGL Steel Coil can be used for corrugated roof sheet or wall cladding

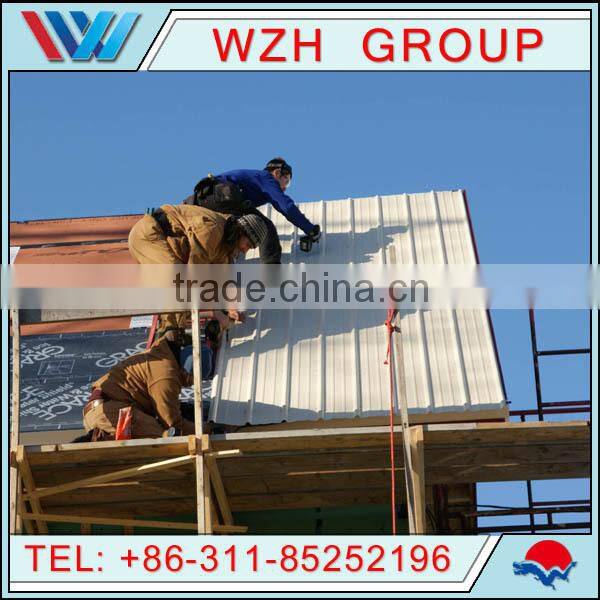

PPGI Corrugated roofing sheet
<<PACKAGING & SHIPPING
1) PPGI COIL package:

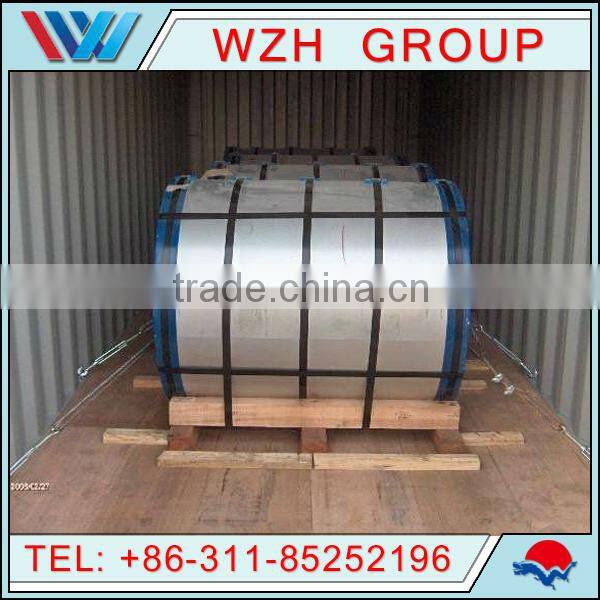

2) PPGI Coils Loading and Reinforce in container
<<WHO WE ARE??

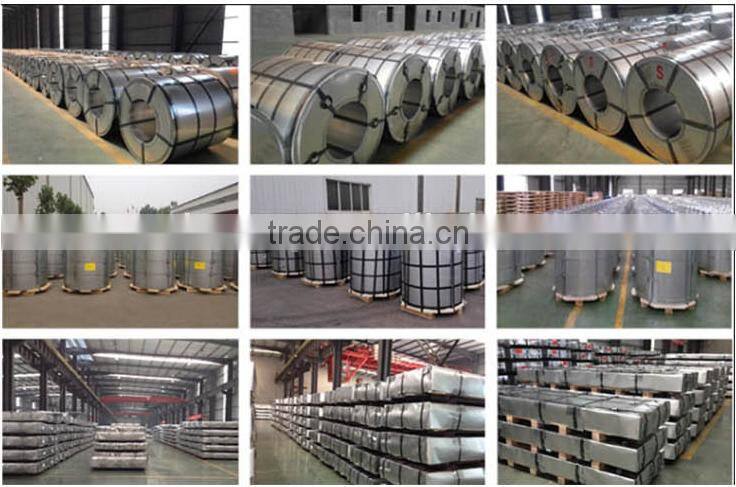

<<WAREHOUSE & STOCK
<<ANY QUESTIONS, PLEASE CONTACT WITH ME:
Nancy Zhang
email:
Mobile/Viber/Whatsapp: +8615081877521
Skype: nancyzhang0521
Company :Shijiazhuang Weizhengheng Light steel color plate Co., Ltd
Add: No55,TianGui Street,Shijiazhuang High-tech Development Zone,Shijiazhuang,Hebei,China
Tel: +86-311-85252196
FAX: +86-311-85252216
