Specifications
Floor deck1)Easy installation
2)High strength
3)Protuction environment
4)Beautiful shape
full hard steel structure gi corrugated floor decking sheet
Specifications
1)Material:Steel,Galvanized steel,Galvalume Steel
2)Thickness:0.8mm-1.2mm
3)Cover width:688/750mm
4) Length:any length
1.Breif instruction:
Galvanized steel floor decking is the permanent upholding slab used in the steel structure buildings, bearing the constrution
load and concrete weight. In using stage, it will be fixed above the steel beam and used at the bottom of the reinforcing steel bar and will generated composite effect after concrete reaches the strength..
2.specification and details:
| No | Item | Spefication | |
| 1 | Total width | 750mm | 688mm |
| 2 | Length | 1m to 11.8m | 1m to 11.8m |
| 3 | Zinc coating | 80g/m2 to 180g/m2 | 80g/m2 to 180g/m2 |
| 4 | Thickness | 0.7mm to 1.5mm | 0.7mm to 1.5mm |
| 5 | Standard | ASTM,JIS,GB,DX51D | ASTM,JIS,GB,DX51D |
| 6 | wave pitch | 51mm | 76MM |
| 7 | wave space | 250MM | 344MM |
3.Technique index:
| YX750 | ||
| Thickness | Section of inertia cm4/m | Section of resistance cm3/m |
| 0.7mm | 43.47 | 14.34 |
| 0.8mm | 46.69 | 16.39 |
| 1.0mm | 62.11 | 20.48 |
| 1.2mm | 74.53 | 24.59 |
| YX688 | ||
| Thickness | Section of inertia cm4/m | Section of resistance cm3/m |
| 0.7mm | 80.19 | 20.53 |
| 0.8mm | 91.62 | 23.46 |
| 1.0mm | 119.38 | 30.61 |
| 1.2mm | 142.01 | 36.98 |

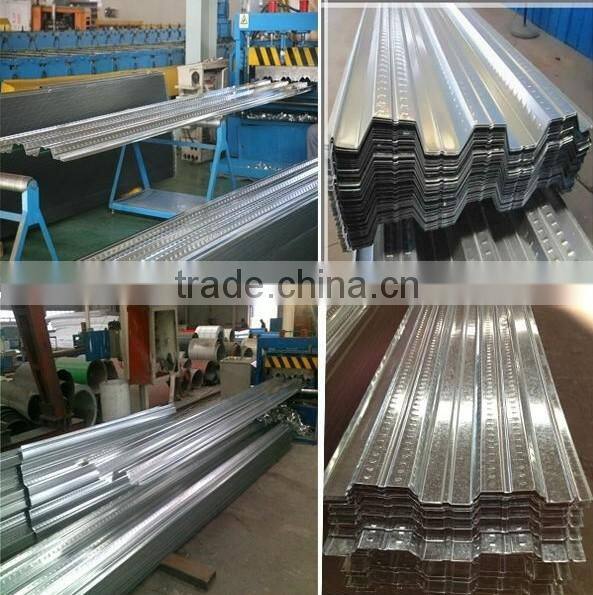

duction processing:
The galvanized steel coil is through the rolling machine to form different corrugated models

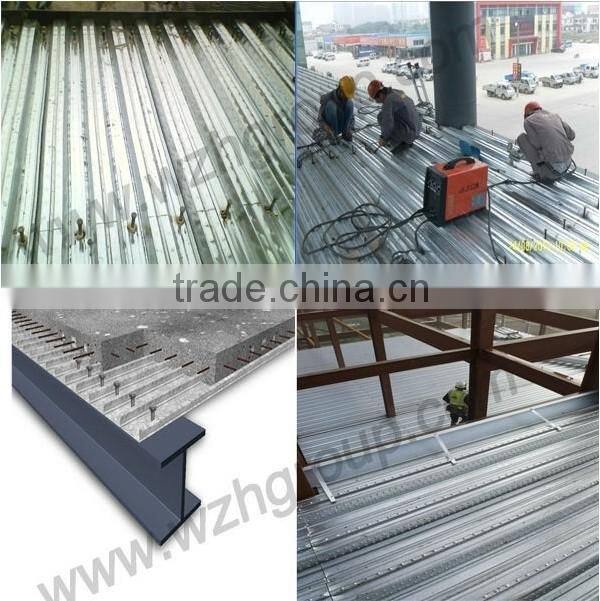

5.The installation way:
a:By weldeding procedure, the steel decking floor sheet is fusion welded on the steel beam
b:The connections of steel floor decking hseet is fixed by clamp
c: Nails is fixed on the composite wind beam by welding gun
d:Department will meet with a gun fixation nail scissors
e:colligate steelfabric as the desgin requirement
f:bolt pouring

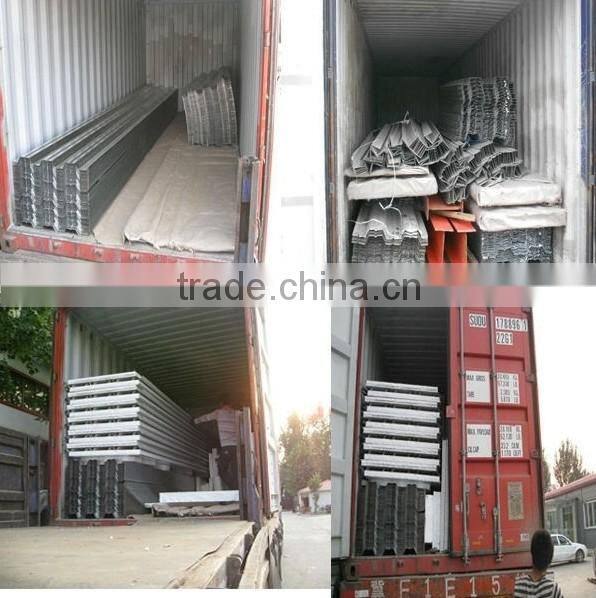

6.The loading pictures:
Our factory has exported our galvanized steel floor decking to USA,chile,Brazil,Haiti,Russia for good quality
and best price..
7.The advantage and the characteristics:
1. There are pre-processed slots between the corrugations of the profiled steel plates, available for engineering
use like electric power and communications.
2.The dead load of the entire structure is reduced, saving the basic cost of the lower part.
3.During construction, the profiled steel plate can enhance the lateral stability of the supporting steel beam.
4.It gives full play to the mechanical properties of two materials - steel and concrete.
5.It does not require formwork, getting rid of the removal and installation of formworks.
6.The profiled steel plate is equal to tensile main rib based on calculation, only moisture reinforcements are needed.
7.The profiled steel plates provide an even ceiling surface for concrete buildings.
8.After installation, the profiled steel plate can be used as a safety work platform for workers, tools, materials
and equipments..
9.strong concrete bond share resistance
10. Excellenet fireproof performance
8. The certification of our factory:
Our factory has been the golden supplers at ablibaba more than 5 years, our products have been through the
ISO9001:2008 certification,SGS,BV inspection,ISO9001:2000 certification..

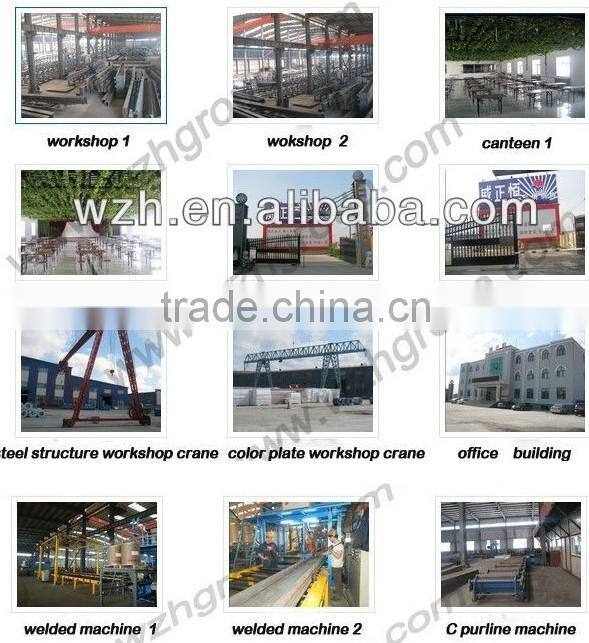

9. The following is our factory workshop and product line:
Our company is a group which has 5 factories and 3 offices more than 10 years. we mainly provide and produce galvanized/galvalume steel coil,galvanized/galvalume , corrugated steel sheet,ppgi steel sheet, corrugated prepainted
sheet,Sandwich eps/rockwool/pu sandwich panel,prefab house and prefab steel structure..
10. Other conditions:
1. Moq: 25 tons about one container
2. Payment Term: TT or L/C sight
3. Delivery Time: within 30-35 days after receiving the deposit or original L/C at sight
4. Validity: 7 days
Add: 1. We can supply you with reasonable and competitive price and good quality products.
2.If you are interested in any of products, please contact us for more information
Company :Shijiazhuang Weizhengheng Light steel color plate Co., Ltd
Cotact person: Ms Nancy Zhang
Add: No55,TianGui Street,Shijiazhuang High-tech Development Zone,Shijiazhuang,Hebei,China
Tel: +86-311-85386696
FAX: +86-311-85389656
Mobile/Viber/WhatsApp: +8615081877521

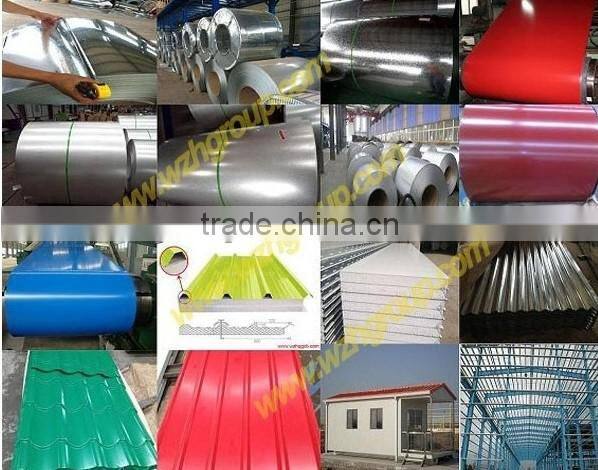

11. pictures of the other models our factory can produce :
