Carbonated Filling Machine

Carbonated Filling Machine

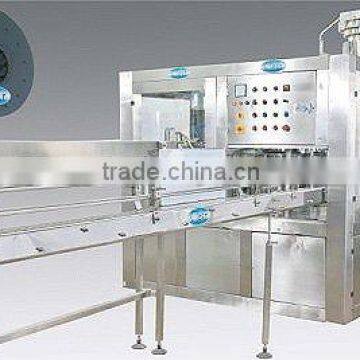

Canadian Clear is one of the members of the Canadian Clear Group of Companies. Canadian Clear incorporated the state of art technology in design engineering of the systems being manufactured. CC 1000 fully automatic bottling machine specially designed by Canadian Clear for mineral water / carbonated beverages. The entire process has provisions in the machine for rinsing, filling, capping and sealing automatically. The entire process is fully mechanical with variable speed drive and gravity / counter pressure filling system. The total system is manufactured under technology transfer and technical collaboration from US microcon Inc. California U.S.A. the whole equipment is sleek and is capable of bottling various sizes of bottles ranging from 500 ml to 2 ltrs. The  bottles are fed in to the rotary rinser, filler, capper by means of an input feed conveyor. A star wheel then transfers the bottle to the neck holding robot of the rinsing station.

The rinsing robot indexes the bottle 1800 and activates the rinsing valve. Bottles after being rinsed are automatically transferred by a star wheel to the filling station. In the filling station the bottles are picked up by the neck and are allocated individual filling valves. The state-of-art filling valve is so precise and accurate it gives even filling in bottles. The filled bottles are then transferred to the capping station via a star wheel. The bottles automatically move for the capping stage where the caps release from the vibrator on the bottles. The caps are sealed automatically using special capping heads. The CC 1000-60-200 Rotary is an unique bottling machine with in built High-Tech features. ‘No bottle no wash, no bottle no fill and no bottle no cap' are the standard features of the CC 1000-60-200 Rotary. The entire system is enclosed in a stainless steel / glass outer casing. After the capping stage the bottles are automatically ejected out to the out feed conveyor.
