Carton Bag Palletizier Machine, Automatic Single Column Palletizer
US$ 1 - 48000
MOQ: 1 Set
Key Specifications
Get Latest Price
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
-
5-25kg Rice Bean Fully Automatic Plastic Packing MachineNegotiableMOQ: 1 Set -
Big Bags 1 Ton Jumbo Bag Powder Granule Packaging Machine FIBC Weighing Filling StationUS$ 1 - 48000MOQ: 1 Set
-
Weighing FIBC Bulk Jumbo 500kg 1000kg Ton Bulk Bag Automatic Filling Packaging Machine Big Bag Packing Machine Ton Bag SystemUS$ 1 - 48000MOQ: 1 Set
-
Precision Weighing Unit Big Bag Packaging Machine Automatic FIBC Packer 1000kg Bag Filling MachineUS$ 1 - 48000MOQ: 1 Set
-
Efficient FIBC Filling and Packing Machine for Weighing Ton BagsUS$ 1 - 48000MOQ: 1 Set
Automatic Grade
Automatic
Carton Bag Palletizier Machine, Automatic Single Column Palletizer
Basic Info.
Model NO.
SMD-01C-H
Usage
Palletizing
Packaging Material
Film
Packaging
Cartons
Driven Type
Electric
Type
Packaging Production Line
Function
Transport Packaging, Storage and Packaging
Packaging Technology
Shockproof Packaging
Application
Drinks, Dairy Products, Cleaning, Detergent, Cosmetics, Skin Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning, Hair Care Products
Soft and Hardness
Semi-Rigid Package
Circulation Function
Outer Packing
Frequency of Use
One Packaging
Mode of Operation
Special Product Packaging
Color
Black with Red
Control System
Delta Servo
PLC
No
Transport Package
Wooden Package
Specification
10CBM
Trademark
TS
Origin
China
HS Code
8422400090
Production Capacity
500 Sets/ Year
Product Description
Rotary stacking is mainly used in beer, beverage, medicine and other industries production line back end stacking, with more than
180 degrees of rotation function, can be applied to multiple pallets stacking at the same time, flexible rotation, small area,
there are many dimensions, performance can be compared to robot stackingIntegrated solution packaging solution, cost effective reduction
The compact arrangement is simpler than the bus-type wiring.
Close to the control core, the communication is faster than the bus type.
Faster connection, more accurate dynamic compensation.
With rich palletizing scenarios, it can be quickly replicated.
Design a guided palletizing process setting interface, which is easy to use.
Provide palletizing instruction library, support customized development, easy to match with interface equipment, and high flexibility.
Support USB clone function, easy to adjust.
Conventional boxes can be stacked up to 9 layers, and the average stacking cycle is about 8 seconds, which can meet the needs of a few extreme high-rises and has high stacking efficiencyAdopts foreign advanced rotary column stacking robot , the appearance is exquisile and beautiful ,the adjustment of stacking method is convenient and simple, which can be carried out on the man-machine interface, and also can be controlled by teach pendant ,which is easy to operate and change.

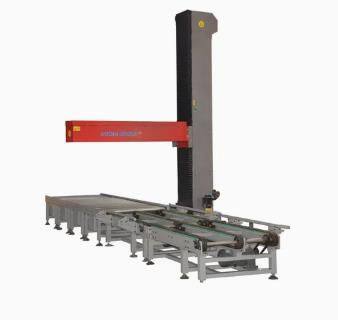

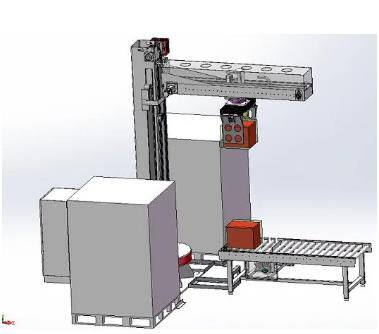

The rotate palletizer consists of the main system of the full servo palletizer by lifting Z axis, translation Y axis, rotating X
axis and gripper. At the same time, it can be combined with the pallet store station, the palletizing area conveyor line, the
feeding conveyor line, etc. to form a set Palletizing system. The palletizer puts the cartons on the pallet in a certain

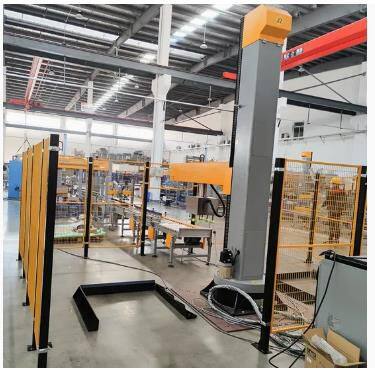

arrangement for automatic stacking. It can stack multiple layers and then output, which is convenient for forklifts to transport to the warehouse for storage. This equipment adopts motion controller + teach 3 / 94 / 9 pendant control to realize intelligent operation management, simple and easy to master. Can greatly reduce labor and reduce labor intensity. System Components: This system is composed of the rotate palletizer, the gripper, the pallet store station, the case conveyors, the pallet conveyors, the safety fence and the control system.
Main technical Parameter
| Power Supply | AC380V/50HZ 20A -1p. |
| Power | 5.5KW |
| Weight | 950Kg |
| Working capacity | 2~6 movements/min |
| Speed | 0%-100% adjustable |
| Air pressure | 0.8MPa |
| Air consumption | 1000ml/min |
Be sure to use a separate fixed power supply. It is strictly forbidden to use a temporary line or use a power supply with other equipment. The voltage should not be lower than 360V or higher than 410V. When wiring, please check the live wire, neutral wire and ground wire (electrical damage and other damage caused by incorrect power supply). not included in the repair package).

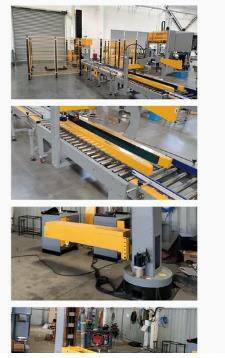

Scheme structureDebug machinePalletizing process
| Palletizing Speed(bag/h) | 500-1500 | Place of Origin | China |
| Packaging Details | According to customer requirements | Product Name | Organic Fertilizer Palletizing Machine |
| Model Number | SLD-500 | Supply Ability | 100 units per month |
| Certification | CE,ISO | Brand Name | SLD |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Palletizing Station (bag) | 4-8 |
| Lifting Height | 0-10M | Delivery Time | 5-10 days |
| Capacity | 0-100KG | Minimum Order Quantity | 1 |
| Gas Supply Pressure (Mpa) | 0.6-0.8 |
