Robotic Arm Palletizier/Palletizing Machine Robot for Carton Package

Robotic Arm Palletizier/Palletizing Machine Robot for Carton Package thumbnail-3

Robotic Arm Palletizier/Palletizing Machine Robot for Carton Package photo-1

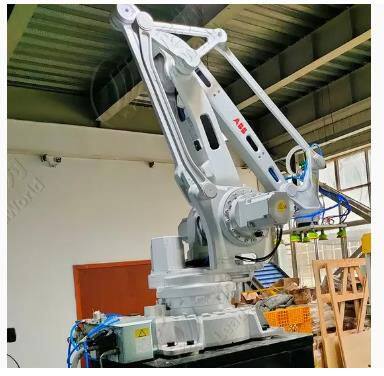

Robotic Arm Palletizier/Palletizing Machine Robot for Carton Package photo-2

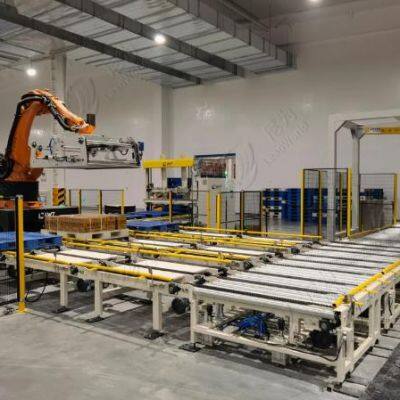

Robotic Arm Palletizier/Palletizing Machine Robot for Carton Package photo-3

US$ 1 - 48000 MOQ: 1 Set

Key Specifications

Get Latest Price

Automatic Grade:

Automatic

Contact Supplier Request Quote Chat Now

Gusu District Qiusheng Commercial Equipment Firm

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

30 days

Product Details
Company Profile
Contact Us

Automatic Grade Automatic

Robotic Arm Palletizier/Palletizing Machine Robot for Carton Package

Model			TSKW-180
Name			Palletizing Robot
Type			Vertical joint with 4 degrees of freedom
Main uses			Handling, palletizing, loadingn and unloading
Position repetition accuracy			±0.2mm
Power			11KVA
Body weight			1150KG
Installation Method			Ground
Enviromental			0-45°, 20%-80% RH
Protection Level			Equivalent to IP54
Action Rang	Basic Axis	J1	±180°
		J2	-41°+90°
		J3	-17° +115°
	Arm Axis	J4	-360°
Maximum speed	Basic Axis	J1	100° /S
		J2	95° /S
		J3	104° /S
	Arm Axis	J4	290° /S
Palletizing Speed			500-700Bags/Hour

Palletizing Speed(bag/h)	500-1500	Place of Origin	China
Packaging Details	According to customer requirements	Product Name	Organic Fertilizer Palletizing Machine
Model Number	SLD-500	Supply Ability	100 units per month
Certification	CE,ISO	Brand Name	SLD
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Palletizing Station (bag)	4-8
Lifting Height	0-10M	Delivery Time	5-10 days
Capacity	0-100KG	Minimum Order Quantity	1
Gas Supply Pressure (Mpa)	0.6-0.8

Product Description

High Productivity High Position Manipulator Organic Fertilizer Palletizing Machine

The high-position palletizer is a high-efficiency palletizing equipment with a high degree of automation and good integration. The packaging bags can be automatically palletized. According to the PLC program, the bags are transported, grouped, pushed and stacked on the pallet, and finally the full pallet is sent out of the system.

Intelligent coordinate palletizing machine is mainly used to carry, process and transfer large quantities of workpiece in automatic production process. The palletizing robot composed of it is much cheaper and more efficient than other robots, and will be widely used in more industries. Palletizing robot generally has 4 or 6 axes, which can be automatically controlled, repeatedly programmed, and multi-degree-of-freedom multi-purpose manipulator. The behavior of the palletizing robot is mainly through the linear movement along the X, Y and Z axes. With XYZ wisdom coordinate system as the basic model, with servo motor, stepping motor driven for uniaxial mechanical arm as the basic unit of work, with ball screw, synchronous belt, gear and rack for common mode of transmission the architecture of the robot system, can accomplish arrive at any point in the XYZ three-dimensional coordinate system and follow the controllable trajectory.

Model	SLD-500
Palletizing Speed	500
Mainframe Size (mm)	320022003000
Power (kw)	7
Voltage(v)	380
Palletizing Height (mm)	600-1600
Stacking Layer Number	1-10
Palletizing Station (bag)	4-8
Gas Supply Pressure (Mpa)	0.6-0.8
Weight (kg)	2000

Working principle:

The working principle of the organic fertilizer automatic palletizer is that a workpiece on the flat plate conforms to the requirements of the pallet, and the flat plate and the workpiece move forward until the vertical surface of the pallet. The upper bar is lowered, and the other three positioning bar starts to clamp, and the plate is reset. Each workpiece is lowered to the plane of the pallet, and the plane of the pallet is 10 mm away from the bottom surface of the panel, and the pallet is lowered by one workpiece height. Reciprocate the above until the pallet stacking code meets the set requirements.

FAQ:

Q1: Are you trading company or manufacturer?
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% of total prices should be paid by T/T as down payment; 70% balance payment should b paid by T/T before delivery.
Q4: How long is the warrenty of your equipments? Does your company supply the spare parts?
A: The warranty period of fertilizer equipments is one year. And we will supply the spare parts for you at lowest cost.
Q5: If I need the complete fertilizer production line can you help us to build it?
A: Yes, we can help you set up a fertilizer production line and give you related professional advices as long as you need. We had already build many fertilizer production line projects in China & Oversea.

About us

SLD is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. SLD has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.
