Helical Gear Reducer

Helical Gear Reducer photo-1
US$ 600 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HUAYUN, HUAYUN
Model Number:
H-Y, QY3D
Payment & Shipping
Payment Methods:
Port of Shipment:
China New Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name HUAYUN, HUAYUN
Model Number H-Y, QY3D

Helical Gear Reducer

Pictures of TXL QY3D reducer

Helical Gear Reducer

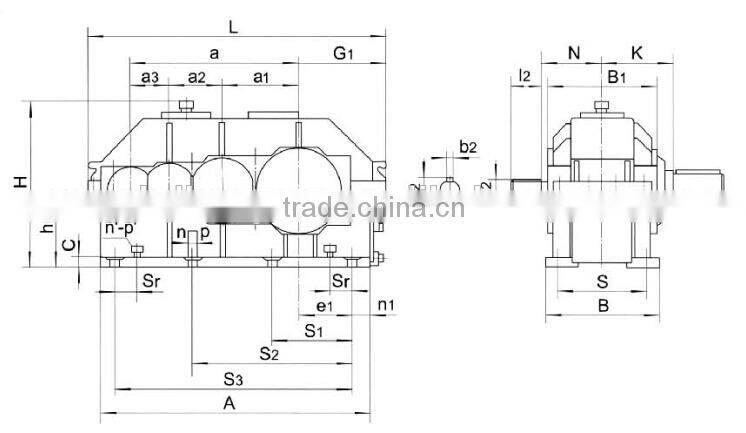

 Outview drawing & dimensions of TXL QY3D reducer

Helical Gear Reducer





 Helical Gear Reducer







 Installing forms of TXL QY3D reducer



Helical Gear Reducer



Nominal input power of TXL QY3D reducer

 Helical Gear Reducer


Helical Gear Reducer



Features of TXL QY3D reducer
(1)Higher carring capacity.the gear wheel is treated with carbonization,quenching ,geargrinding to get much higher carring capacity than face and medium hard tooth face decelerator,the decelerator with hardening ,tempering and hobbing;



(2)Compact and light-weighted.Compared with soft tooth face and medium hard tooth face decelerator, the decelerator with the same carrying capacity will have decreased pedestal number by 24 equivalent



(3)Higher efficiency ,lower noise,and lower vibration.Gear grinding is introduced to increase grade of precision,and also the brim of gear wheel is trimmed,so the general efficiency of each step of hoist is 0.98,with much lower viberation and noise



(4)Multiple steps are introduced to decrease single step transmission ratio so as to widen the center distance,to decrease the overall height of the decelerator is up to 400 to meet the requirement of slow speed hoist.



(5)3-supportining-point decelerator can be installed vertically,horizontally,or in deflection by certain degrees,with much convenience and flexibility.



(6)This series of decelerator has 3and 4-step combide type.
transmission stage 3
applicate for crane | hoist
material of gears 20CrMnMo
treatment carburization & quenching
ambient temperature -40 °C ~45 °C
Helical Gear Reducer



Questions & Answers TXL QY3D reducer

Q: If you can help on selecting a right model for me ?

A: Yes. Pls kindly provide the data of the MOTOR POWER , INPUT SPEED , RATIO ,SF .

Q: What about your products' quality ?

A:  Don't worry about the quality ! There're advanced testing equipments and professional QCs in our company . The testing actions are taken during every procedure from material to the finished products .

 Q: How long is the guarentee time ?

A:  1 year

Package & transportation of TXL QY3D reducer

Helical Gear Reducer



Helical Gear Reducer

If you have any question, please contact with us. May I help you, it's our pleasure to answer.
