Mining Conveyor Belt High Strength Belt Clamps

FOB Price

US$ 0.5 - 2 / Piece

50 Pieces(Min. Order)

Port Xingang/Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	Huayun, Huayun
Model Number	Diameter from 50mm to 219mm, tooth

Product Description

Baoding Huayun Conveyor Machinery Co.,Ltd is a manufacture of conveyor roller .

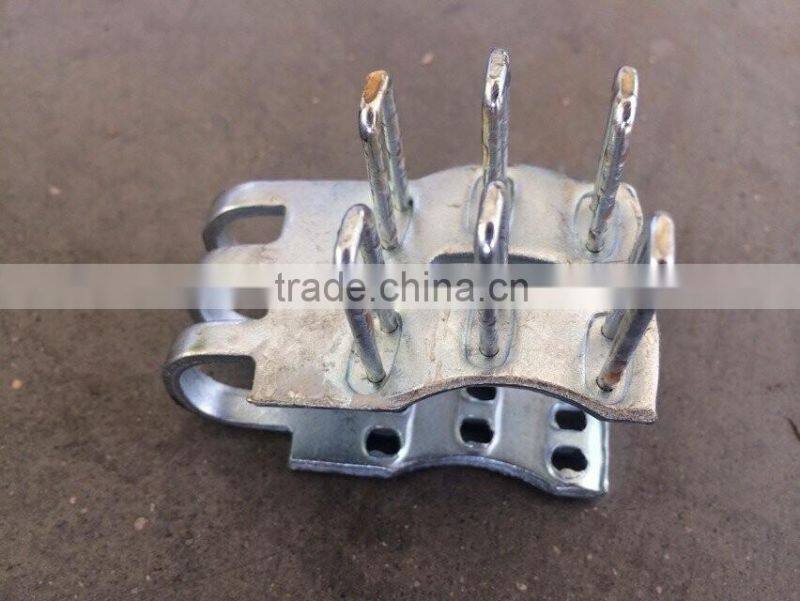

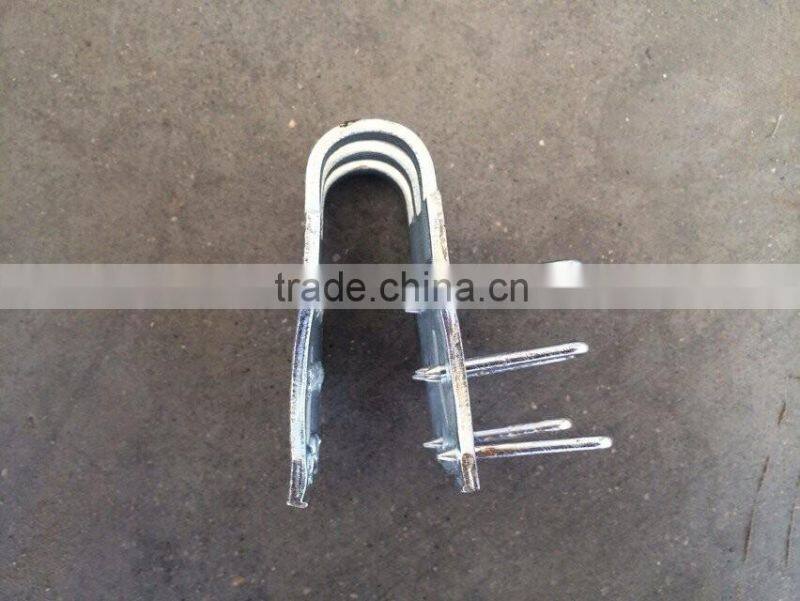

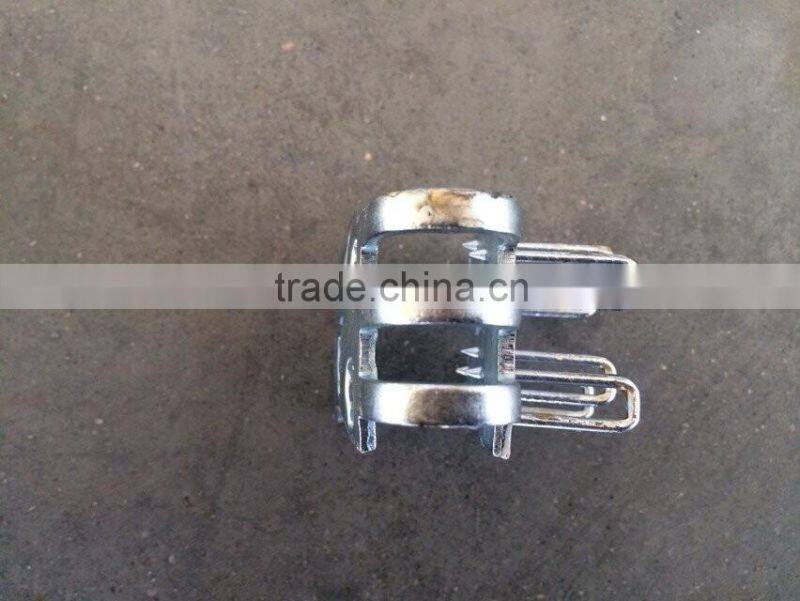

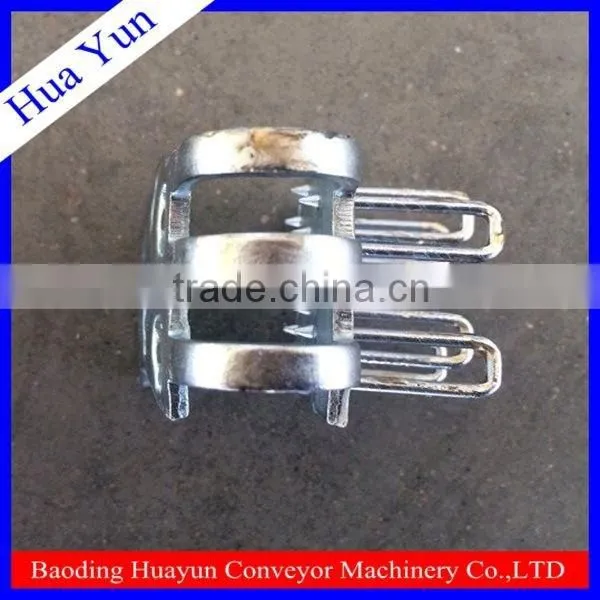

mining conveyor belt high strength belt clamps

Name: conveyor belt clamps

Material: carbon Steel/Mild Steel, and could be zinc

Size: 1.5inch and 2inch

Plate Fastener G1 (25Sets/box) one carton has 8 boxes

Each set consists of 1 Top & Bottom Plate, 2pcs bolts&1pcs nuts and rubber washer Design.

Technical parameters of ordinary conveyor belt clamps:

	HY-1000	HY-1400	HY-2000	HY-V6-800mm	HY-RV6-1M
Fastener Length	1000mm	1000mm		800mm	1000mm
Applying strength	n/mm≤1000	n/mm≤1400	n/mm≤1400	n/mm≤1000	n/mm≤1200
Belt thickness scope	5-12mm	8-15mm	13-16mm	6-12mm	6-12mm
Suitable belt grade	≤6grade	≤8grade	≤15grade	≤6grade	≤6grade
Belt with	any(mm)	any(mm)	any(mm)	any(mm)	any(mm)
Min rotary diameter	≥Φ230mm	≥Φ250mm	≥Φ500mm	≥Φ230mm	≥Φ230m

HY-V1
System pressure	0.3-0.7MPa
Pressure scope	0.0 5-0.1MPa
Air supplying scope	30-55L/min
Air suppling way	from ground or pump
Reducing noise	<85dB(A)
Weight	13kg
Protect way	self-absorb filtering mouth mask
Structure	hook type
Out size	800×385×180 mm

Packaging & Shipping

Packing:boxes or cartons
HY-1000:10boxes as one carton,10pcs fastener in one box ,20cm per piece
HY-1400:10boxes as one carton,10pcs fastener per box,Per pcs is 20cm
HY-2000:5boxes as one carton,10pcs per box,20cm per pcs
HY-V6-800mm:10 boxes in one carton,2 pcs per box
HY-RV6-1M:10 boxes per carton,2pcs per box

conveyor belt clamps certificate:

About us conveyor belt clamps customers:

Baoding Huayun Conveyor Machinery Co., Ltd, steel roller with high quality, certificated by the ISO9001/2008 and Safety Certificate of Approval for Mining Products, exported to USA, Russia, Belgium, Australia, New Zealand, South Africa, and so on.

Welcome all companies to contact us for business negotiation. It is my honour to serve you.
