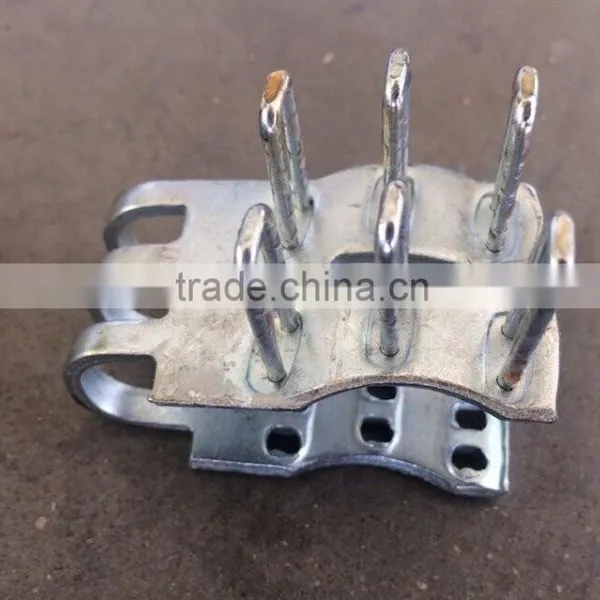

baoding steel conveyor belt steel belt clasp fasteners

HY-1000

HY-1400

HY-2000

HY-V6-800mm

HY-RV6-1M

Fastener Length

1000mm

1000mm

800mm

1000mm

Applying strength

n/mm≤1000

n/mm≤1400

n/mm≤1400

n/mm≤1000

n/mm≤1200

Belt thickness scope

5-12mm

8-15mm

13-16mm

6-12mm

6-12mm

Suitable belt grade

≤6grade

≤8grade

≤15grade

≤6grade

≤6grade

Belt with

any(mm)

any(mm)

any(mm)

any(mm)

any(mm)

Min rotary diameter

≥Φ230mm

≥Φ250mm

≥Φ500mm

≥Φ230mm

≥Φ230m

HY-V1

System pressure

 0.3-0.7MPa

Pressure scope

0.0 5-0.1MPa

Air supplying scope

30-55L/min

Air suppling way

from ground or pump

Reducing noise

<85dB(A)

Weight

13kg

Protect way

self-absorb filtering mouth mask

Structure

hook type

Out size

800×385×180 mm
