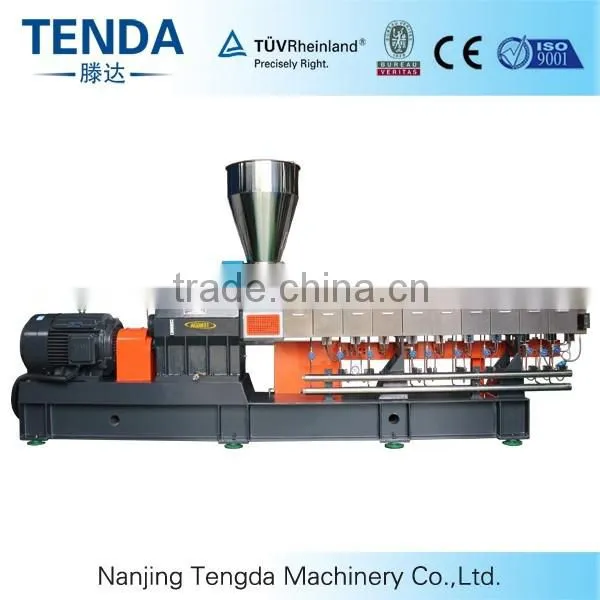

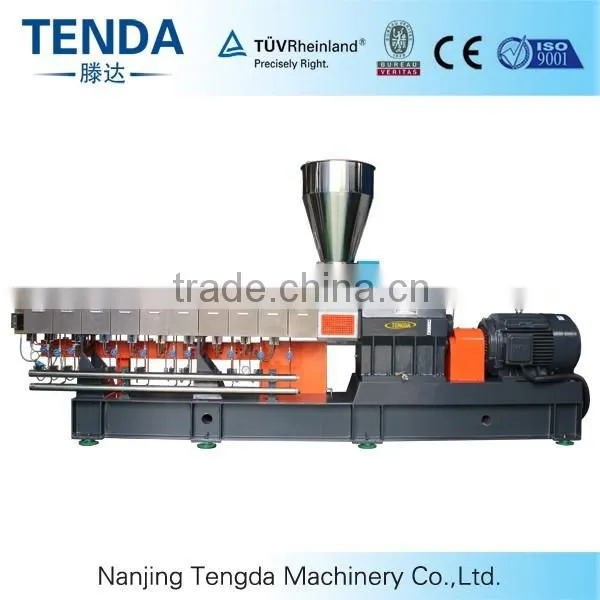

High Quality TSH-65 Strand Pelletizing Extruder

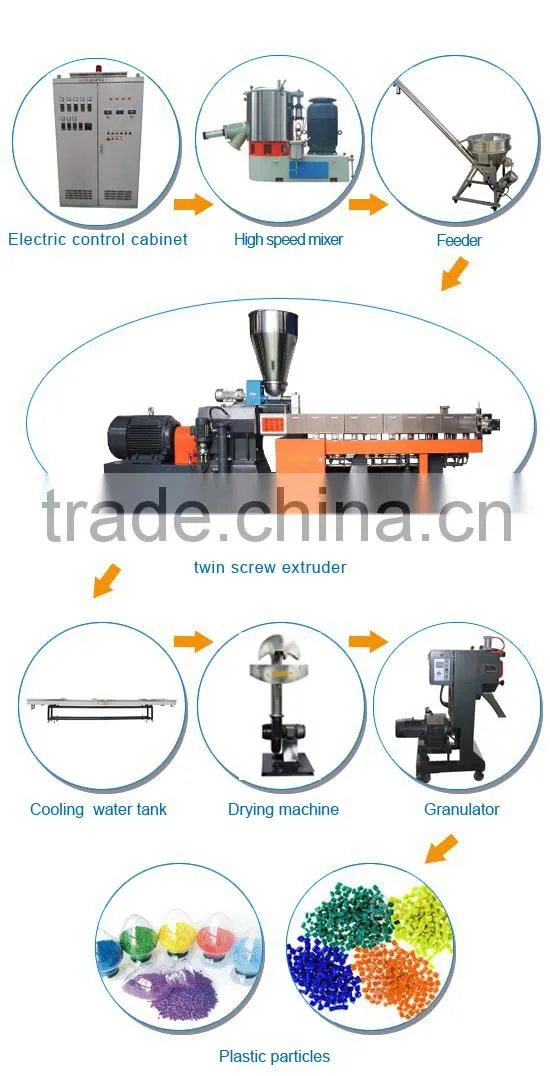

Main twin screw extruder
Electric Control system
Paraments :
| TYPE | Dia(mm) | L/D | Speed(rpm) | Motor(kw) | Torque(N.M) | Output(Kg/H) |
|
TSH-20
|
22 | 32-60 | 400 | 3 | 4.8 | 2-10 |
| 600 | 4 | 4.8 | 2-10 | |||
|
TSH-30 |
30 | 32-56 | 400 | 7.5 | 4.8 | 5-30 |
| 500 | 11 | 4.8 | 5-40 | |||
| 600 | 15 | 6.6 | 15-55 | |||
|
TSH-35 |
35.6 | 32-60 | 400 | 11 | 4.6 | 20-60 |
| 500 | 15 | 4.2 | 30-70 | |||
| 600 | 22 | 6.1 | 40-95 | |||
|
TSH-40 |
41 | 32-60 | 400 |
22 | 6.0 | 40-110 |
| 500 | 30 | 5.5 | 70-150 | |||
| 600 | 37 | 6.8 | 90-170 | |||
| TSH-52 | 51.4 | 32-60 |
400 |
45 | 5.1 | 120-220 |
| 500 | 55 | 5.2 | 155-275 | |||
| 600 | 75 | 7.1 | 200-355 | |||
| TSH-65 | 62..4 | 32-64 | 400 | 55 | 4.8 | 160-280 |
| 500 | 75 | 4.8 | 220-380 | |||
| 600 | 90 | 5.9 | 220-400 | |||
| TSH-75 | 71 | 32-64 | 400 | 110 | 4.6 | 330-550 |
| 500 | 132 | 4.6 | 330-660 | |||
| 600 | 160 | 5.5 | 500-850 | |||
| TSH-85 | 81 | 32-64 | 500 | 200 | 5.8 | 600-1000 |
| 600 | 220 | 5.3 | 650-1100 | |||
| 600 | 280 | 6.7 | 850-1400 | |||
| TSH-95 | 93 | 32-64 | 500 | 250 | 4.7 | 750-1250 |
| 600 | 315 | 5.0 | 950-1600 | |||
| 600 | 450 | 7.1 | 1350-2250 | |||
| TSH-120 | 116 | 32-56 | 400 | 315 | 4.4 | 950-1600 |
| 500 | 450 | 5.0 | 1350-2250 | |||
| 500 | 550 | 6.1 | 1800-3000 | |||
| TSH-135 | 133 | 32-48 | 400 | 550 | 4.4 | 1650-2750 |
| 500 | 750 | 5.0 | 2250-3750 | |||
| 500 | 900 | 6.1 | 3000-5000 |
Our advantages of twin screw extruder :
1.High output ,superior quality,low powder pollution
2.Famous brand parts and our own processing lathe
3.Long term service
4.CE & ISO & TUV certification
TSH Series Co-rotating Twin Screw Extruder are widelyused in the compounding modification field, like the
filling, reinforcement, toughening of plastics, engineerplastics and thermoplastics, and also for the special
fibers and adhesive process according to the max screw rpm and its torque rating,main products are classified as TSH & TDH series.
Applications:Fiber Reinforcement:glass fiber, carbon fiber reinforced PP. PA, PBT. ABS. AS, PC, POM, PPS,
PET. etc.
Polymer Blending :blending of PC/A BS, PA/ABS,CP E/ABS, PP/EPDM, PAJEPDM.PP/SBS,etc .
Incorporation of Fillers:CaC03, Talc. Ti02, carbon black filled PE. PP, or EVA etc.
Cable Compounds:cable sheath, cable insulation compounds of LDPE, HDPE. LLDPE, MDPE: radiation-
crosslinkable compounds. optical fiber protection compounds, heat-shrinkable polymer
compounds.
Special Compounds: PPR pipe compounds, PE compounds for crosslinked pipes, tobacco filter compounds
etc.Manufacture of Masterbatches.
High Concentration Color Masterbatches:PE, ABS, PS. EVA, PET, PP etc.with high concentration of
pigments and other processing aids.
Masterbatches with Flame-Retardants:PP. PA ABS, EVA, PBT, etc. with flame retardants
and other additives.
Special Functional Masterbatches:Masterbatches with anti-static. anti-bacteria. or other special functional
fillers.
Masterbatches for Degradable Polymers:PP, EP, PS, etc. blended with high concentration of starch and other
processing aids.

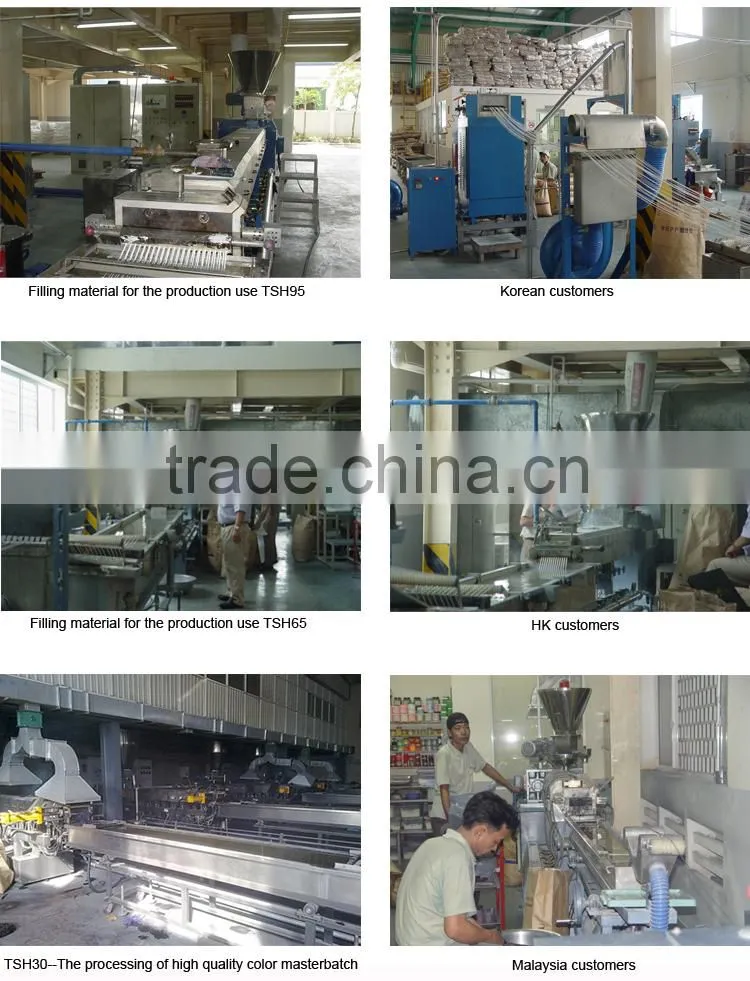

Customer Stories
Our machine is fisrt painted with anticorrosive oil, and then wrapped in the plastic film before it is finally packed in the wooden case.
Packing :Wooden case for export, fit for multiple handing and long distance marine shipping.
Delivery time: Within 30 Days.

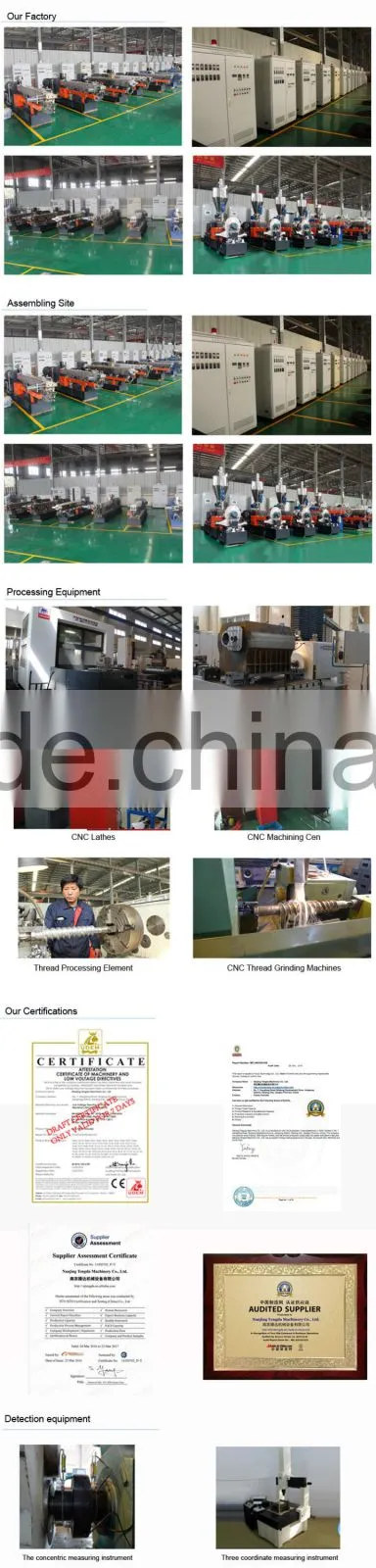

Tengda , headquartered in Nanjing, China, is a global manufacturing and trading company in the field of high
performance plastics and rubber processing equipment , extrusion solutions, masterbatch and compounding
, etc. Its unit Nanjing Tengda Extrusion Company is a professional manufacturer of twin screw extruder, single
screw extruder ,two stage extruder and its related auxiliaries.We tailor solutions from raw materials, materials
processing equipment, to injection for different customers. Each Tengda solution is designed ,manufactured,
and commissioned by experienced teams of professionals engineers and after sales staffs.
Presales service:
>introducing in detail features and application of the products to customer
>Selecting economical and practical machine & equipment for customer
>Providing operation data of the related machine & equipment
>Providing means of trial performance for customer
Sales service:
>Recommending engineering conditions required for installation of the machine & equipment
>Communicating in time the manufacturing progress of the machine with user
>Providing assistance in technical conditions, screw combination and barrel disposition needed for product
After-sales service:
>Providing on-the-spot technical assistance in installation, commission and training
>Filling in detail customer’s information
>Providing long-term maintenance service and spare parts
>Giving technical support to customer for developing new product
>Providing free maintenance for a year
