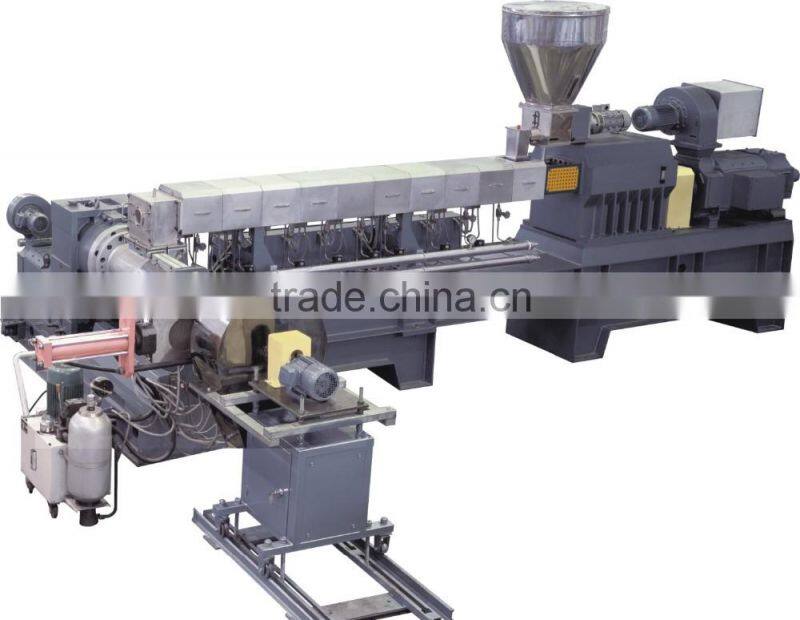

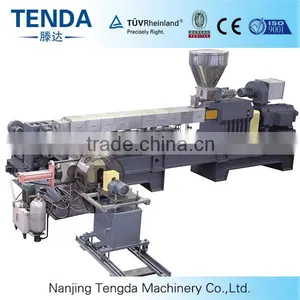

TSC-65/SE-150 Two Stage Pelletizing Extruder
TSC Series Two Stage Extruder Set
1. First stage is TSC high speed co-rotating twin screw extruder.
2. Second stage is SE low speed single screw extruder.
It combines the advantage of first stage extruder and second stage extruder.
Principle:
Take advantage of twin screw extruder and single screw extruder.
Twin screw extruder force in transportation, powerful compounding and good dispersion, make the material high effective plastizing.
Single screw extruder can effectively cool the material, so this kind structure of machine will have higher capacity.
Application:
Used for different kinds of thermo-sensitive material, like PVC, XLPE, LSHF flame retardant cable material, shielding material etc.
TSC/SE Series Technical Data
| Type | Dia.(mm) | L/D | Speed(rpm) | Motor(kw) | Output(kg/hr) | |
| TSC-52/SE-120 | TSC-52 | 51.4 | 24~48 | 500 | 37/45 | 100~300 |
| SE-120 | 120 | 7~20 | 85 | 30/37 | ||
| TSC-65/SE-150 | TSC-65 | 62.4 | 24~48 | 500 | 55/75 | 200~500 |
| SE-150 | 150 | 7~20 | 85 | 37/45 | ||
| TSC-75/SE-180 | TSC-75 | 71 | 24~48 | 500 | 90/110 | 400~800 |
| SE-180 | 180 | 7~20 | 85 | 45/55 | ||

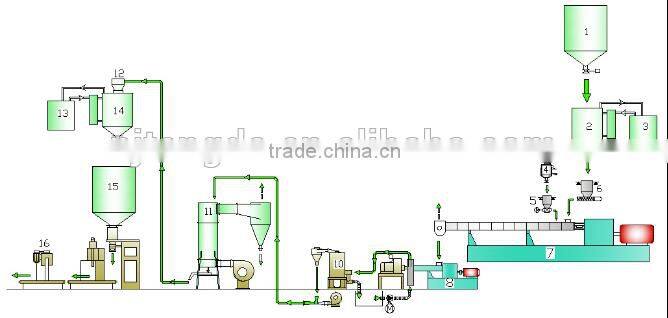

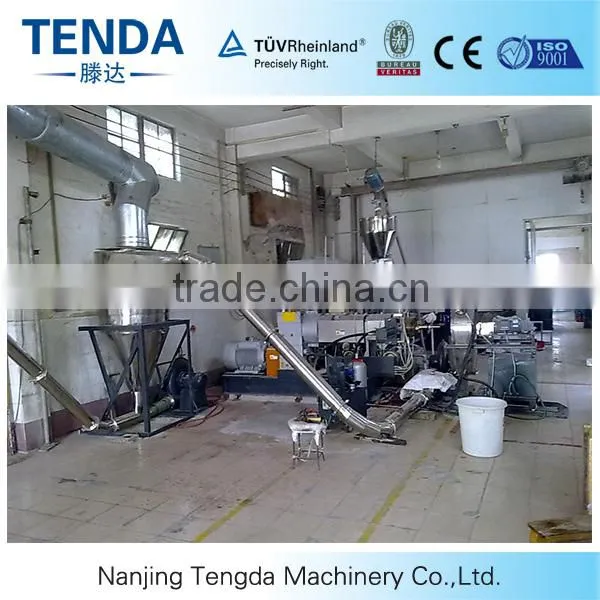

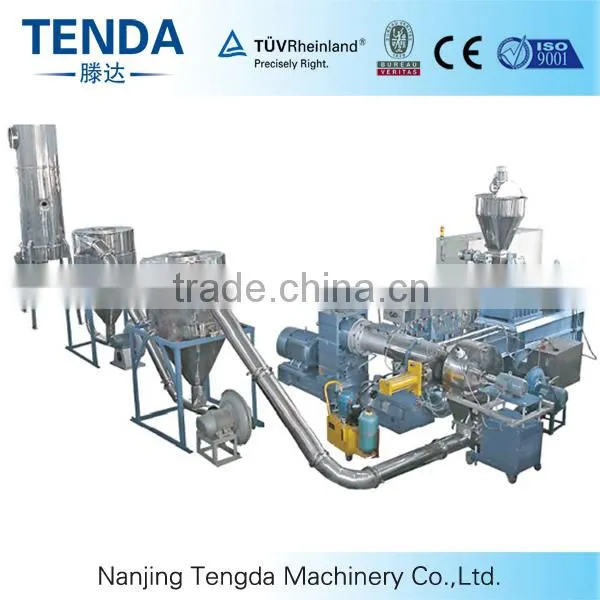

Processed Flow
1. raw materials stock 2. drying hopper 3. molecular-sieve dryer 4. raw materials tank 5. weightlessness metering pump
6. weightlessness electronic scales 7. twin screw extruder 8. single screw extruder 9. water-ring pelletizer 10. centrifugal dewatering machine
11. fluidizing bed 12. vacuum conveyer 13. molecular-sieve dryer 14. drying hopper 15. product container 16. vacuum packaging machine.
Advantages:
Functional steps of material plasticating /mixing and silane-graffing are carried out in a long L/D co-rotating twin screw extruder,
while single screw extruderi5 used for low temperature pressure buildup and pelletizing.This tandem line has a larger processing window than any single line.

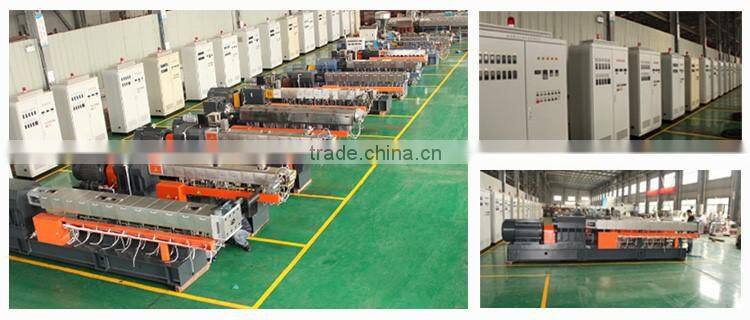

Tenda , headquartered in Nanjing, China, is a global manufacturing and trading company in the field of high performance plastics and rubber processing equipment ,
extrusion solutions, masterbatch and compounding, etc. It's unit Nanjing Haisi Extrusion Company is a professional manufacturer of twin screw extruder,
single screw extruder ,two stage extruder and its related auxiliaries. We tailor solutions from raw materials, materials processing equipment,
to injection for different customers. Each Kairong solution is designed , manufactured, and commissioned by experienced teams of professionals engineers and after sales staffs.
Packaging & Delivery
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.We have the technical production team,and the workers are all very experienced.
Q: Why choose you?
A:You can get a very fair price from us and our price can make you beat your competitors in the market.
Q: What kind of certification do you have?
A: Our products have obtained ISO9001 and CE certification,the quality can be guaranteed.We focus on the field of extrusion machine,and aim to be the best manufacturer of this field.
Q:What’s the payment?
A:L/C, T/T, Western Union, Paypal, Money Gram.
