Customized Flexible Roller Conveyor for Airport Used
- Tianjin Port Shanghai Port
- T/T Credit Card
You May Like
-
1000mm Belt Width PU Primary Conveyor Belt Scraper Polyurethane Belt Cleaner
-
30 Inch PU Primary Belt Scraper Poly Urethane Primary Conveyor Belt Cleaner
-
24 Inch Poly Urethane Conveyor Belt Scraper PU Primary Belt Cleaner
-
42 Inch Poly Urethane Primary Belt Scraper PU Primary Conveyor Belt Cleaner
-
Material Transfer Roller Conveyor
-
Galvanized Steel Roller End Cap Plastic Cover Ends for Rollers With Precision Ball Bearing
Product Details
| Place of Origin | Hebei, China | Brand Name | Huayun | |
| Model Number | flexible roller conveyor, 50mm diameter |
Product Description

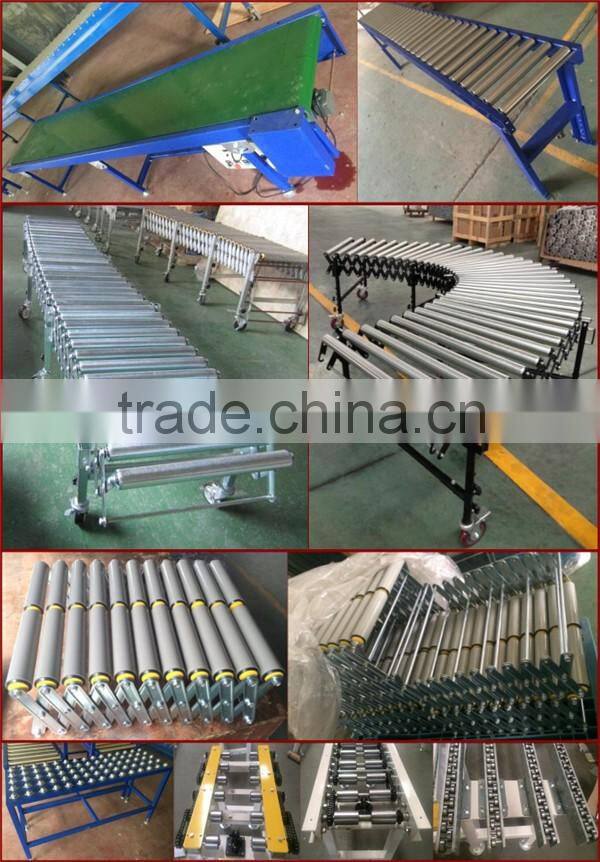

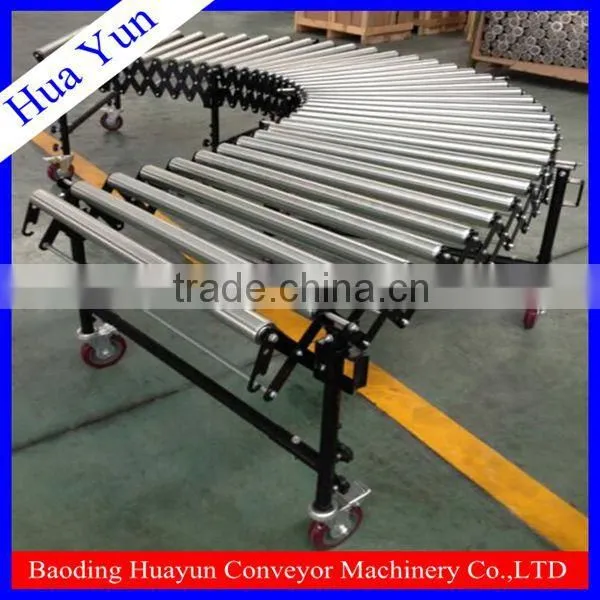

flexible roller conveyor
HuaYun brand flexible roller conveyor have been certificated by the TUV, ISO9001/2008
and Safety Certificate for Mining Products. With high quality and competitive prices, our
products enjoy a good reputation both in home and the abroad.
1. Detail show for flexible roller conveyor
| Description | flexible roller conveyor |
| Cover end type | galvanized steel / plastic |
| Installation method | Spring loaded/female thread/flat milling |
| Tube material | Steel, zinc-plated, stainless steel, aluminium |
| Tube diameter | 18/25/38/50/60mm |
| Shaft material | high quality carbon steel |
| Shaft diameter | 6/8/12/15mm |
| Bearing housing | steel/galvanized steel |
| Bearing type | Precision ball bearing |
| Ground sleeve | polyamide |
| Temperature | -0 ~ +80 centigrate degree |
| Appliation | Used for airport conveyor parts |
Roller Feature:
a. The basic requirement of the gravity conveying is to make the conveying easy and simple;
the specially designed semi-precision stamping bearing solves it well.
b. Its ample clearance could effectively disperse the axial force on the bearing.
c. The operation noise is a little louder than rollers, but could fully meet the requirement of
the common gravity conveying.
d. Not suitable in high speed application, not suggest to be the supporting roller of the belt
conveyor.
g. Temperature range: 0 to +80 centigrade degree.
Advantage of stainless steel roller:
1. Nice appearance.
2. Corrosion resistance is good, much more durable than common steel tube.
3. High-temperature resistance, oxidation resistance, intension is high.
4. No requirement of surface treatment, esy maintenance.
5. Smooth and easy cleaning.
Our two types stainless steel below:
| Matreral | J4-201 | 304 |
| Magnetic | Yes | No |
| Corrosion resistance | Corrosion resistance is so so, could work for long time in the common air polluted environment witout chloride pollution and basically keep non-rust | Good capacity of corrosion resistance to aqueous alkali and most organic acid and mineral acid. |
| Decorative | Good | Good |
| Main application | Mainly as decoration, or replacement of zinc plated tube for some high temperature requirement | Kitchen appliance, automobile parts, building materials, food production facility, hospital tools |

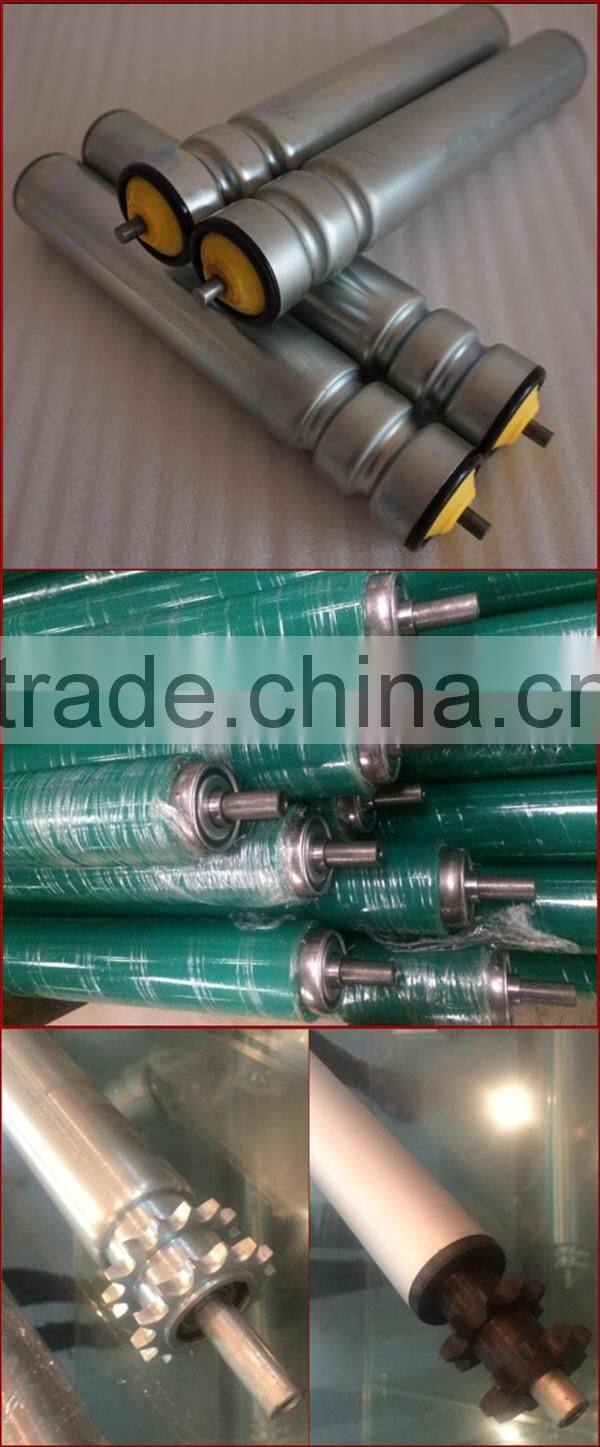

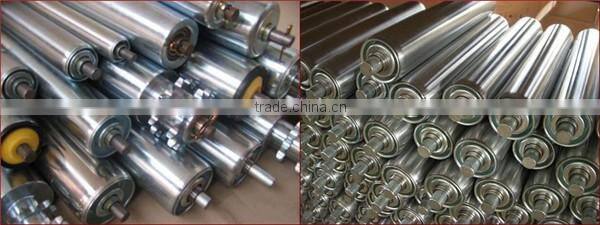

2. Here are some types of gravity conveyor rollers we made.

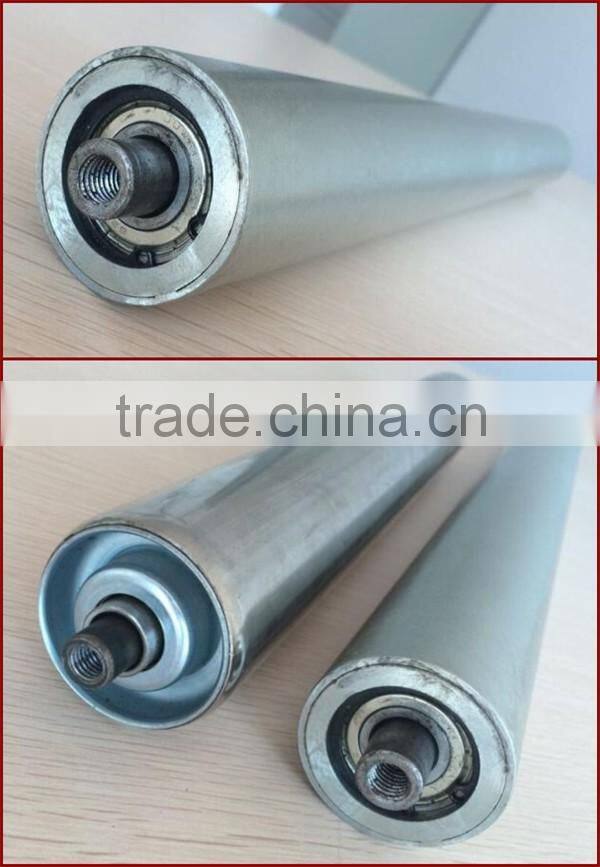

1) female thread gravity conveyor rollers

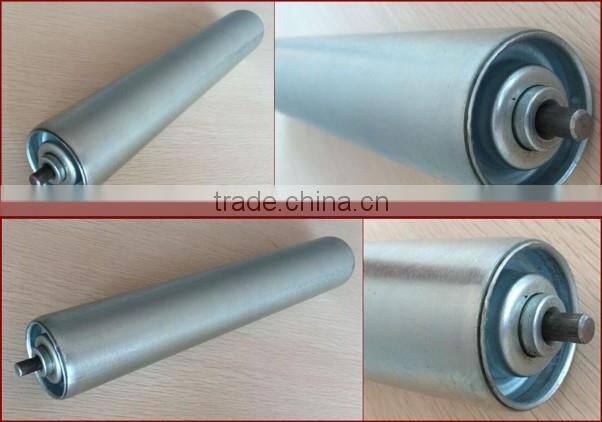

2) spring loaded conveyor roller
3) Other type conveyor rollers

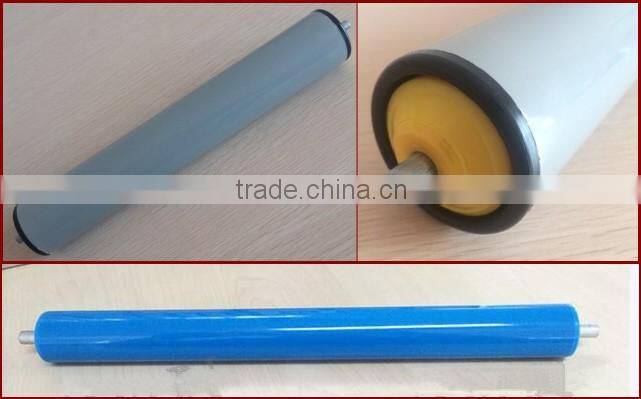

4) PVC graivty spring loaded conveyor rollers
Advantages of HuaYun manufactured gravity conveyor rollers
(1)Easy installation and nice flexibility;
(2)Low friction coefficient;
(3)Dust- and water-proof;
(4)Fine welding technique ensure roller with low vibration and noise;
(5)Electrostatic spraying technic makes the roller more durable and good-looking;
(6)Strict inspection standard ensures our high quality product.
3. Besides we can manufacture the conveyor rollers and conveyor
idlers according to the buyers' requirements
1) return conveyor idler roller - used for transporting whole pieces material and supporting
returning belt
2) carrying conveyor idler roller - used for transporting bulk materials
3) impact conveyor idler roller - reduce the impact of blanking on conveyor belt
4) guide/friction/tapered/crown face conveyor idler roller - adjust the conveyor belt deviation
5) rubber sprial conveyor idler roller - to prevent corrosion, sticky rollers, belt, tear
6) conveyor idler roller with rubber discs/steel sprial conveyor idler roller - clear conveyor belt
7) suspension conveyor idler roller - auto-adjusting, slow the impact of bulk materials, as well
as to facilitate disassembly and assembly

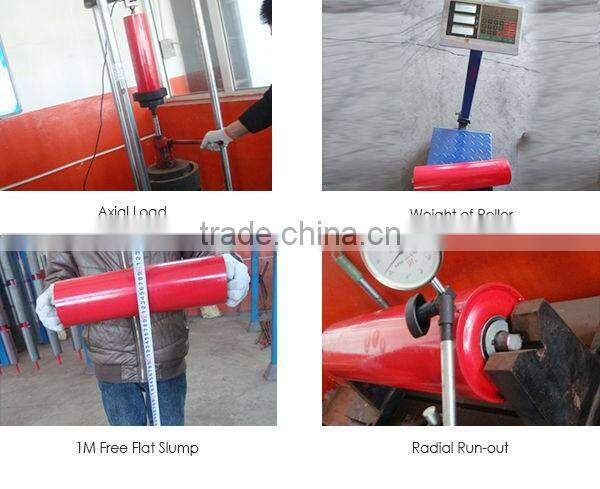

4. Comprehensive and rigorous quality control is our speciality:
5. The certificates we have achieved:

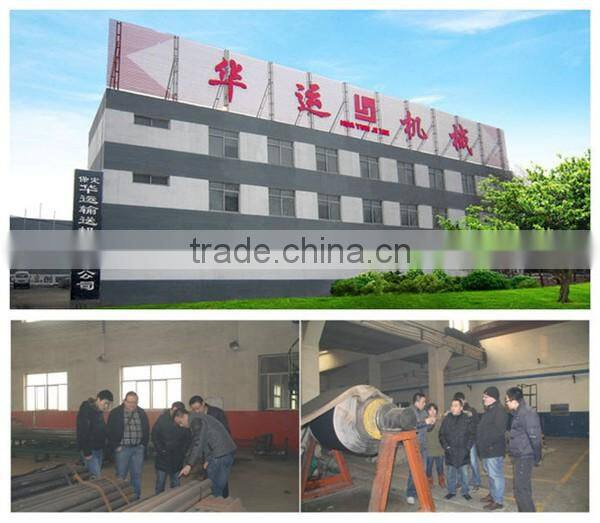

6. About us - Baoding Huayun Conveyor Machinery Co., Ltd.
five reasons to choose us:
1) manufacturer of belt conveyor idler rollers, conveyor pulleys,
conveyor brackets;
2) with most advanced production equipment;
3) with exquisite craft with CEMA DIN standard;
4) with TUV, ISO9001:2008 and Safety of Approval for Mining Products;
5) with high quality material purchasing channel and excellent
after-sale service.
Know more information about the roller end cap, pls contact us via
the following ways:
