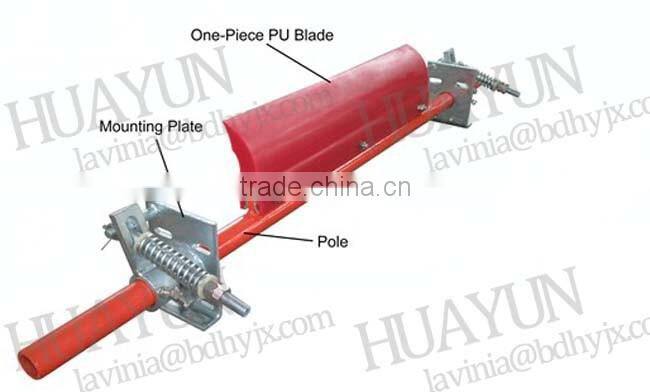

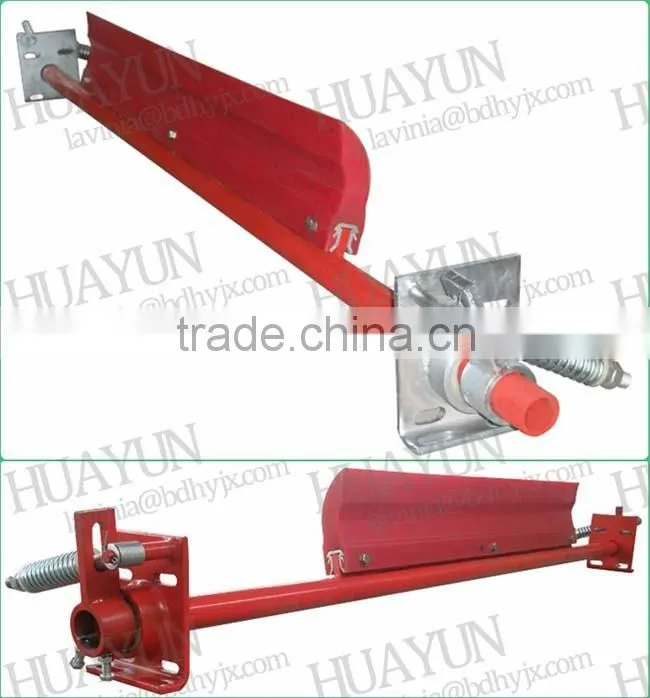

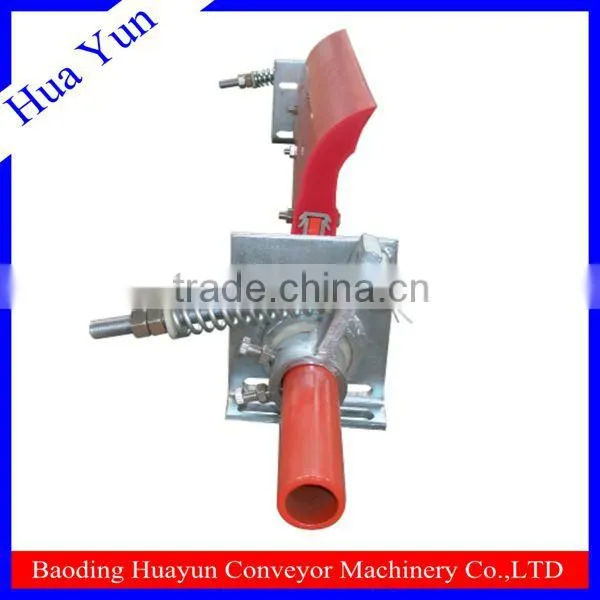

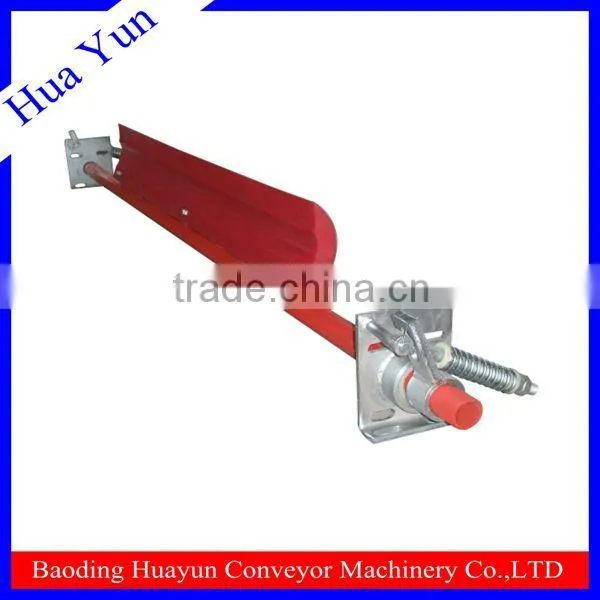

24 inch poly urethane conveyor belt scraper pu primary belt cleaner
Huayun can offers a wide range of primary, secondary and tertiary belt cleaners of different types, as well as very effective belt plows, pulley cleaners etc.
Designed to keep the conveyor belt, and pulleys and rollers as clean as possible, thus prolonging service life, improving belt tracking, minimizing spillage, raising performance and improving safety and economy, they are of quality, compact and efficient design and easy to maintain.
Installed on the head pulley to provide effective cleaning.
1. Appliation for the primary belt cleaner
1) belt width: 500 ~ 2000 mm
2) belt speed: ≤ 3.5m/s
3) temperature: -40 ~ 90 ℃
4) material humidity: ≤15%
2.Feature for the conveyor belt scraper
1) replaceable pu blade
2) easy installation
3) low maintenance
4) self-adjusting tensioner
5) extend belt life

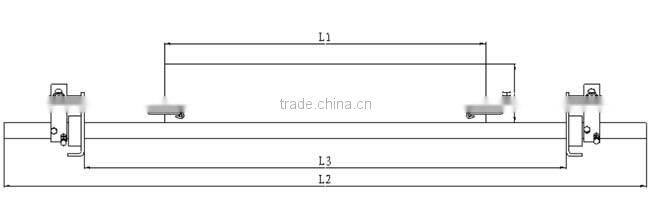

3. Standard dimensions for primary belt cleaner
| Model | Belt width (mm) | Blade width (mm) - L1 | L2 (mm) | H (mm) | L3 |
| ZE-HPU-50 | 500 | 500 | 1400 | 182 | According to condition of the side |
| ZE-HPU-65 | 650 | 650 | 1600 | 182 | |
| ZE-HPU-80 | 800 | 800 | 1800 | 182 | |
| ZE-HPU-100 | 1000 | 1000 | 2000 | 182 | |
| ZE-HPU-120 | 1200 | 1200 | 2200 | 182 | |
| ZE-HPU-140 | 1400 | 1400 | 2400 | 182 | |
| ZE-HPU-160 | 1600 | 1600 | 2600 | 182 | |
| ZE-HPU-180 | 1800 | 1800 | 2800 | 182 | |
| ZE-HPU-200 | 2000 | 2000 | 3000 | 182 |
Note:
1) belt cleaners could be made as customers's belt width and blade width;
2) blade width, pole length could be made as customer's requirement.

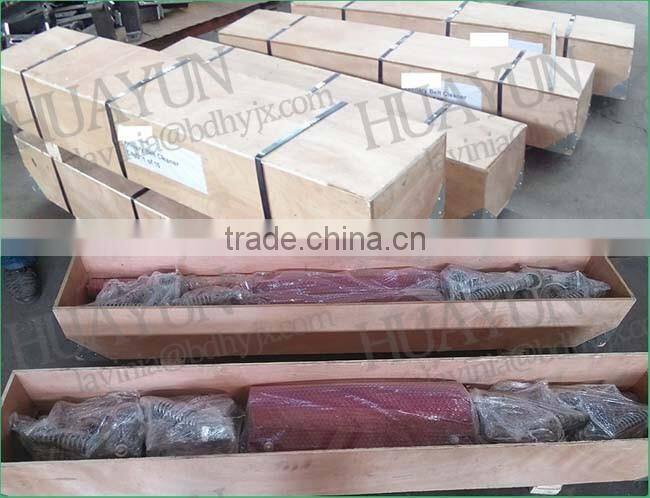

4. Packing for pu coveyor belt scraper
5. Should you have any questions about the primary belt cleaner, please contact us via the following ways:
