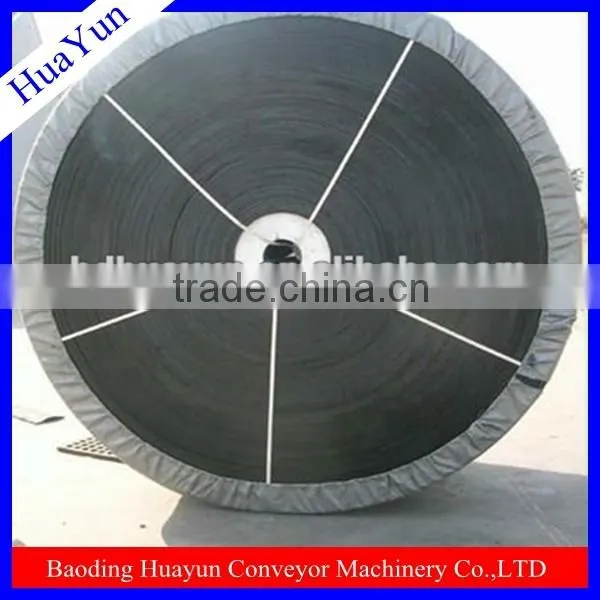

EP Conveyor Belt
Rubber EP conveyor belt Standards:
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etcTypes:
Besides General Nylon Belt, there are Fire-resistant type, Cold-resistant type, Wear-resistant type,
Heat-resistant type, Acid and alkaline resistant type, Oil-resistant type, Antistatic electricity type,
High-grade type and etc.
1) high abrasion resistance, high tensile strength and good fatigue resistance;
2) Conveyor belt with nylon canvas inside has the characteristics of thin belt body, high tensile strength,
|
Fabric type |
Fabric structure
|
Fabric specs |
Ply Thickness (mm/p) |
strength (N/mm) |
Cover thickness (mm) |
Width (mm) |
Length (m) |
||||||
|
Wrap |
Weft |
2ply |
3ply |
4ply |
5ply |
6ply |
Upper |
Lower |
|||||
|
Nylon (NN)
|
Nylon (N) |
Nylon (N) |
NN-100 |
0.75 |
200 |
300 |
400 |
500 |
600 |
1.5 ~ 12 |
0 ~ 4.5 |
400 ~ 2200 |
≤300 |
NN-150 |
0.80 |
300 |
450 |
600 |
750 |
900 |
|||||||
NN-200 |
0.90 |
400 |
600 |
800 |
1000 |
1200 |
500 ~ 2200 |
||||||
NN-250 |
1.15 |
500 |
750 |
1000 |
1250 |
1500 |
|||||||
NN-300 |
1.25 |
-- |
900 |
1200 |
1500 |
1800 |
|||||||
NN-400 |
1.45 |
-- |
-- |
1600 |
2000 |
2400 |
800 ~ 2200 |
||||||
NN-500 |
1.55 |
-- |
-- |
2000 |
2500 |
3000 |
|||||||
Adhesion and elongation of EP conveyor belt
Belt carcass |
Adhesion strength |
Elongation |
|||
|
Between plies N/mm |
N/mm Between rubber and carcass |
Longitudinal elongation elongation at break%≥
|
Longitudinal elongation at reference load%≤
|
||
|
Cover thickness ≤1.5mm |
Cover thickness ≥1.5mm |
||||
Nylon canvas |
≥4.50 |
≥3.20 |
≥3.50 |
10 |
4.0 |
According to the customer’s requirements, the belts could be made into endless belt,
and the covering rubber could be made into pit, chevron and level type etc.

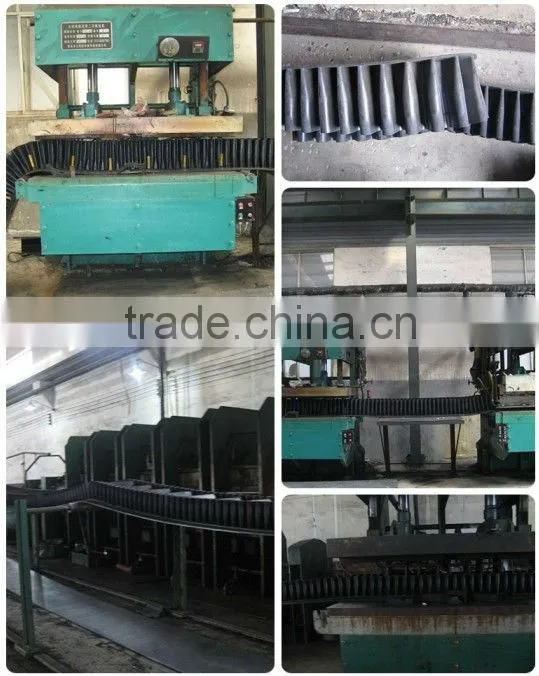

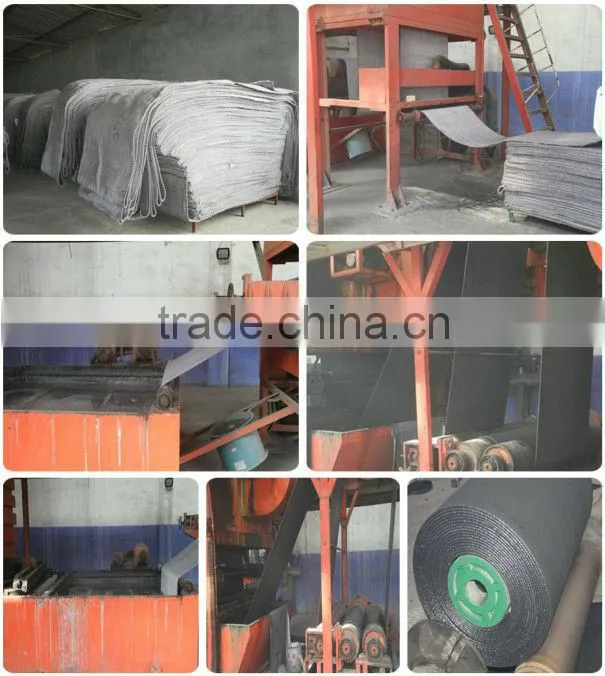

Kinds of EP coveyor belt product process
Certification of HuaYun Brand EP conveyor belt
HuaYun brand Rubber conveyor belt have been certificated by the ISO9001/2008 and Safety
Certificate for Mining Products.
EP conveyor belt Useage
It is suitable for conveying materials at medium or long distance and under conditions of heavy
load and high speed.
EP conveyor belt Research Centre
Our company and our client
HuaYun People are adhering to the philosophy of "with integrity
and innovation to achieve development". Strive to build leading enterprise in our industry and provide the most satisfactory
products and best service for customers. With high quality and competitive prices, our products enjoy a good reputation both in
home and the abroad.
