800mm belt width 24 Mpa NN rubber belt nylon industrial conveyor belt manufacturers
Used in mine, cement plant, steel and iron factory, metallurgy, construction, ports, suitable for medium amd long-distance,large capacity, high speed transportation.

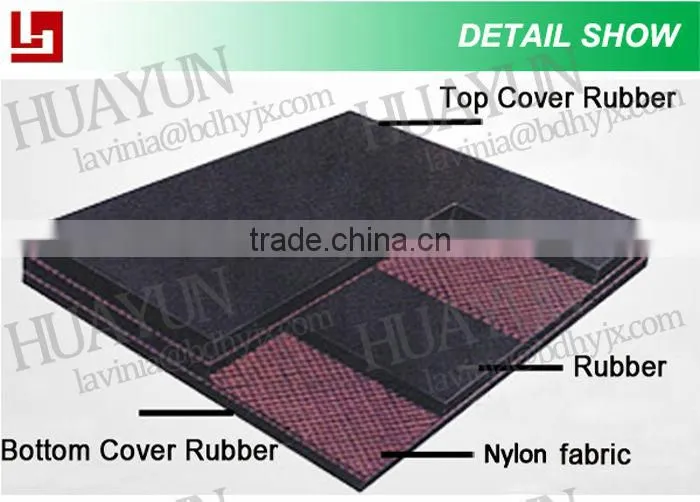

1.Detail show for nylon industrial conveyor belt

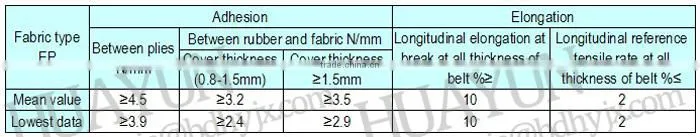

1) specification of NN rubber belt
| Fabric | Fabric structure | Fabric type | Fabric thickness (mm/p) | Strength (N/mm) | Cover thickness | Width | |||||||
| Warp | Weft | 2 ply | 3 ply | 4ply | 5ply | 6ply | Top cover | Bottom cover | Cut edged | Round edged | |||
| Nylon (NN) | Nylon (NN) | Nylon (NN) | NN100 | 0.85 | 200 | 300 | 400 | 500 | 600 | 1.5-8 | 0-4.5 | 400-2200 | 76-2200 |
| NN125 | 0.90 | 250 | 375 | 500 | 625 | 750 | |||||||
| NN150 | 1.00 | 300 | 450 | 600 | 750 | 900 | |||||||
| NN200 | 1.10 | 400 | 600 | 800 | 1000 | 1200 | |||||||
| NN250 | 1.15 | 500 | 750 | 1000 | 1250 | 1500 | |||||||
| NN300 | 1.25 | 900 | 1200 | 1500 | 1800 | ||||||||
| NN400 | 1.45 | 1600 | 2000 | 2400 | |||||||||
| NN500 | 1.55 | 2000 | 2500 |
3000 |
|||||||||
Cover thickness (0.8mm-1.6mm):tensile strength and elongation at break can be 15% below the above table is allowable.
2) Feature
1)High adhesion, small elongation;
2)Good trough ability;
3)Anti-impact;
4)lighter and shock resistant
3) Standard
DIN22131, EN ISO 15236, SANS1366 and AS1333
2. General product process for NN industrial conveyor belt
a. fabric type: NN100 NN125 NN150 NN200 NN250 NN300 NN400 NN500;
b. ply: 2, 3, 4, 5, 6;
c. tensile strength: 15Mpa, 18Mpa, 24Mpa;
d. cut edged or round edged.
3. Quality control for NN rubber conveyor belt
1) test equipment
2) ISO9001:2008
3) TUV qualified factory for industrial conveyor belt manufacturers

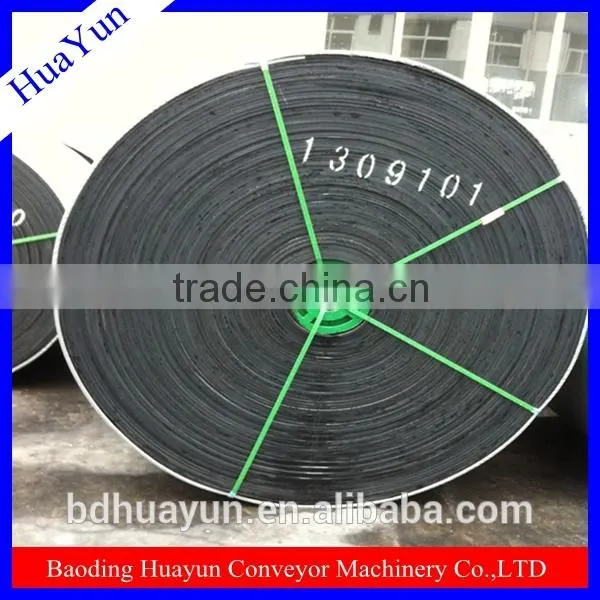

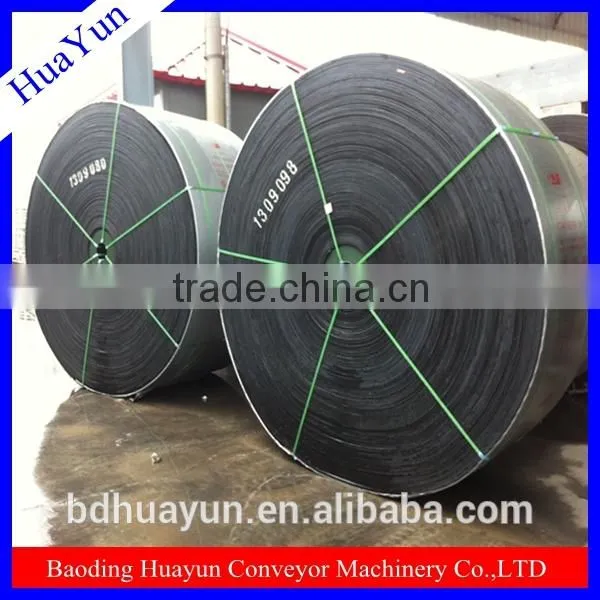

4. Well packed NN conveyor belt and kinds of conveyor belt you can choose
Packed in pvc waterproof cloth or as require.
Shipment within 7-15 working days according to the quantity.
the conveyor belt we can supply:
steel cord conveyor belt, heat resistant conveyor belt, sidewall endless conveyor belt, corrugated sidewall conveyor belt, chevron v conveyor belt, fire resistant conveyor belt, ep conveyor belt, nylon conveyor belt, etc.
5. About us - Baoding Huayun Conveyor Machinery Co., Ltd.
Five reasons to choose us:
1. the manufacturer of conveyor belts, conveyor rollers, conveyor pulleys, conveyor brackets, etc.;
2. most advanced production equipment;
3. exquist craft with CEMA DIN JIS standard;
4. passed the TUV, ISO9001:2008 and Safety of Approval for Mining Products;
5. high quality material purchasing channel and excellent after-sale service.
Know more information about industrial conveyor belt manufacturer, pls contact us via the following ways:
