Belt Conveyor Driving Pulley/ Tail Pulley
- Tianjin Port
- T/T Credit Card
You May Like
-
Hot Sales Dustproof Waterproof Conveyor Roller
-
Reliable Steel Roller Idlers for Belt Conveyors for Working Line
-
Rubber Conveyor Roller Bearing Housing/used Conveyor Belt Steel Pipe Rollers
-
Aluminum Roller/ball Bearing Roller/ball Transfer Unit
-
Ball Bearing Conveyor Roller/boilie Machine
-
China Belt Conveyor Pulley Design/timing Pulley
Product Details
| Place of Origin | Hebei, China | Brand Name | HuaYun | |
| Model Number | HY | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

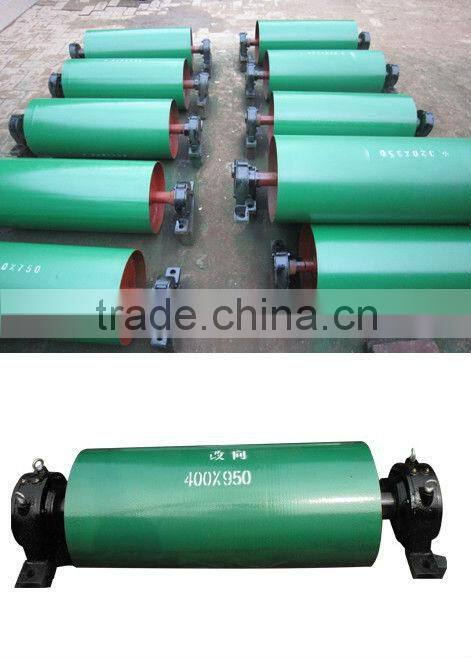

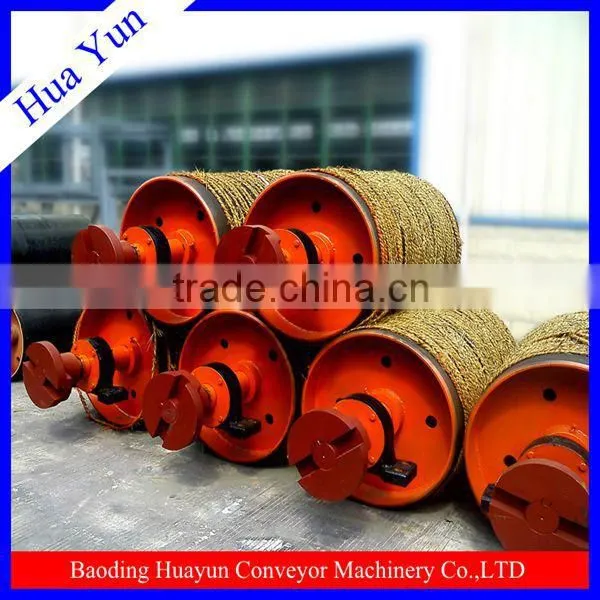

Rubberized bend pulleys for belt conveyor system
Drive drum pulley for belt conveyor is used with electric motor to drive the belt to moving.

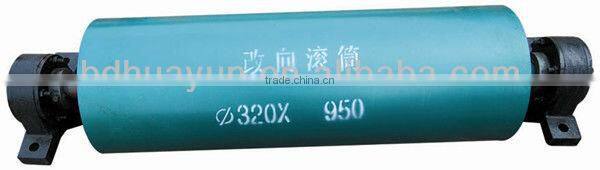

Bend drum pulley is used to change the direction of the belt.
Key Features of conveyor pulleys
1. Steady running, reliable quality and reduce maintenance;
2. Less movement longitudinally, rotating smoothly, extends the life span;
3. Various bearing housing and sealing structure are available for the customers choice;
4. Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;
5. Manufacturing by steel pipe specially for of high precision roller, ensuring the strong load, low shaking and less noise
Components of drum pulley:
1. High quality raw material: Q235 / Q 245 / Mn steel plate.
2. Bearing: LYC, HRB, NTN, etc.
3. Long service life (about 8 years).
4. It can work in the dusty, wet, muddy or other harsh environments.
5. Welding: Mixed gas TIG.
6. Painting: ordinary painting, hot-dip galvanizing, electrostatic spray, baking varnish
7. Lubrication: Lithium grease, rust inhibitor.
Parameter for reference:
Parameter of conveyor drum pulley | |||
| Type | Belt width(mm) | Standard diameter(mm) | Length(mm) |
| Driving pulley, Bend pulley | 500 | 500 | Length of pulley depends on the width of conveyo belt |
| 650 | 500~630 | ||
| 800 | 630~1000 | ||
| 1000 | 800~1150 | ||
| 1200 | 800~1150 | ||
| 1400 | 1000~1350 | ||
| 1600 | 1150~1600 | ||
| 1800 | 1150~1800 | ||
| 2000 | 1350~2000 | ||
| 2200 | 1600~2200 | ||
| 2400 | 1800~2400 | ||
Certificate: ISO, CE
Type conveyor DTII, TD75
Bearing NO: 6204/6205//6306/6307/6308 etc
Material: carbon steel, Rubber , nylon etc.
Belt width: from 300mm to 2400mm
The international Market: Middle east, South America, Africa, Southeast Asia. Etc.

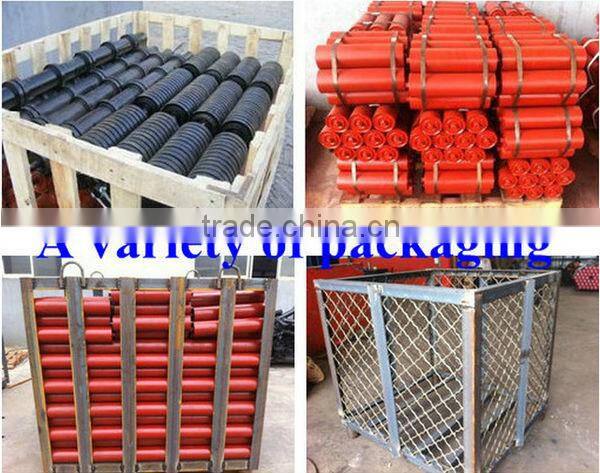

About our conveyor roller unique package

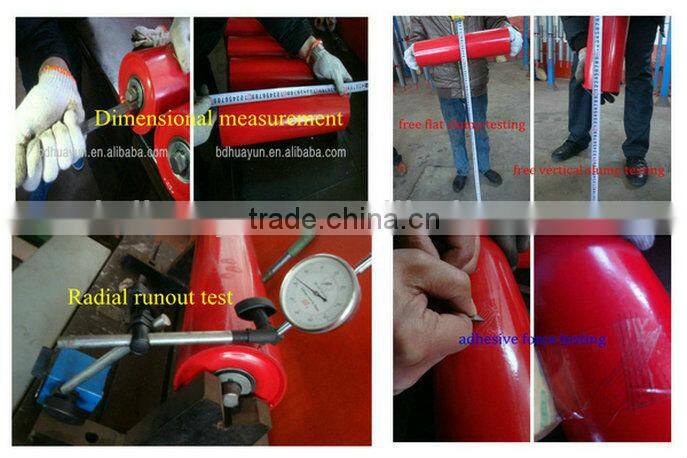

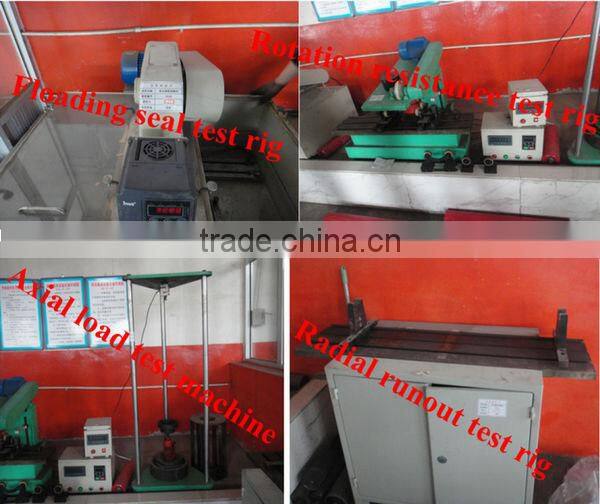

Testing measures
We have strict quality testing and performance testing to ensure the quality of our belt conveyor idler
Testing standard
1.End travel<0.5
2.Axial application of force(15KN) cudgel and axle don’t come away
3.1M free flat slump: Weld joint without harm
Axial displacement ≤1.5
4.180/KG(cm) free vertical slump:Weld joint without harm
Axial displacement ≤1.5

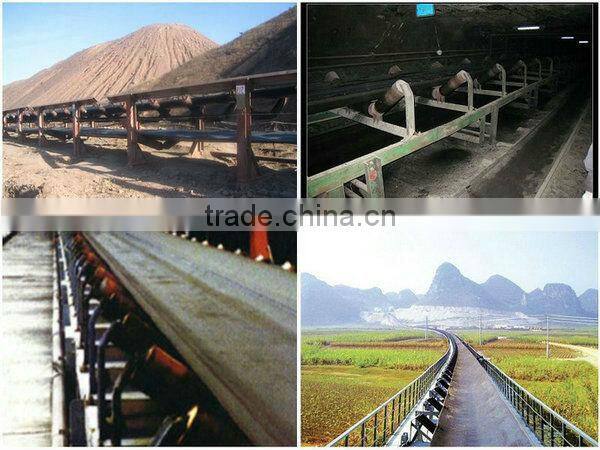

HuaYun conveyor roller and pulley are widely used in mines, caves, cement works, coal-fired
electric utilities and dock installations.
The Certification
Standard: GB, ISO, CEMA, DIN, JIS, ETC
Production capacity: as usual 100 pieces/ week, but urgent order is acceptable
Certificate: CE, ISO, BV, SGS, IKA, ETC

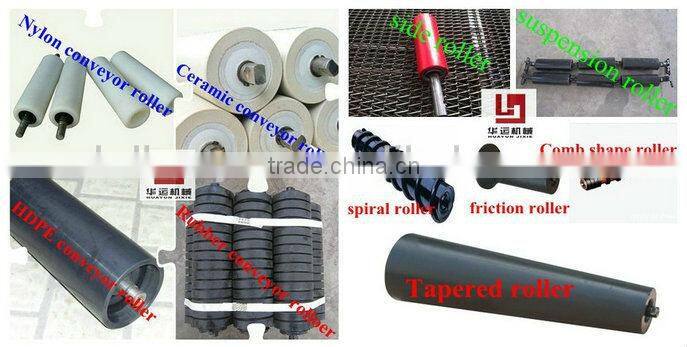

Our other kinds of conveyor idler roller

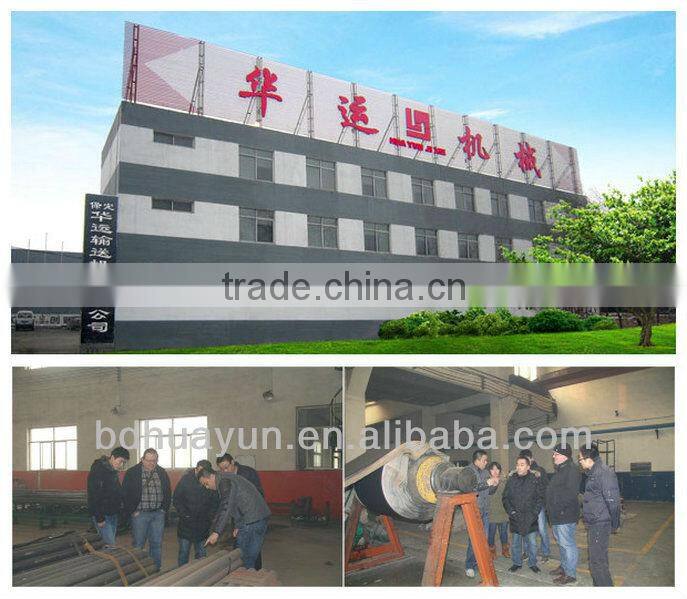

Our factory and client
We are read to cooperate with our friends both at home and abroad to buidl a bright future!
We sincerely welcome any cooperation with you in the future.
