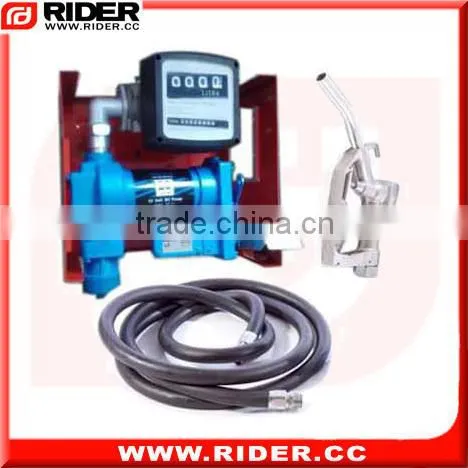

190W 1/4hp 24v 10amp 3600rpm fuel pump gas station

Specifications

24 Volt DC rotary vane pump
Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane.



24 Volt DC rotary vane pump. Anti-explosion design.
Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane.
ball-bearing design for the pump, unnecessary lubrication.
Cast iron material for pump body.
Thermal protection for the motor.
Bypass valve efficiently protect the motor when overload.
Filter screen in the inlet adapter.
Inlet Fitting: 1" NPT, Outlet Fitting:1" NPT
Drum Adapter Thread: 2" NPT
3/4" x 4m oil resistant rubber hose with static discharge core,1" x 2m steel core PVC suction hose with filter
Inleter 3/4' aluminium manual nozzle. (Optional self-closing nozzle)
Mechanical meter with aluminium die-casting body.
Easy to assemble, adjust and return to zero.











Model	Specification	Packing info.	Feature
GS-EP-P12	Voltage DC 12V Power 190W  1/4hp Amps 20 amp Duty cycle 30min Max suction lift (Dry)  2.1m for Petrol,  2.5m for diesel Max flow 20GPM (75LPM) Motor Speed 2800rpm Motor Speed (No-loading) 3600rpm Discharge pressure 14psi Min Liquid Temp -15 °F (-26 °C) Max Liquid Temp 150 °F (66 °C)	Overall View Size: 37x38x38cm G.W./N.W: 10/9kgs Packing  1pcs/carton Carton size 38x39x39cm	12 Volt DC rotary vane pump. Anti-explosion design. Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane. ball-bearing design for the pump, unnecessary lubrication. Cast iron material for pump body. Thermal protection for the motor. Bypass valve efficiently protect the motor when overload. Filter screen in the inlet adapter. Inlet Fitting: 1" NPT, Outlet Fitting:1" NPT Drum Adapter Thread: 2" NPT
GS-EP-P24	Voltage DC 24V Power 190W  1/4hp Amps 10 amp Duty cycle 30min Max suction lift (Dry)  2.1m for Petrol,  2.5m for diesel Max flow 20GPM (75LPM) Motor Speed 2800rpm Motor Speed (No-loading) 3600rpm Discharge pressure 14psi Min Liquid Temp -15 °F (-26 °C) Max Liquid Temp 150 °F (66 °C)	Overall View Size: 37x38x38cm G.W./N.W: 10/9kgs Packing  1pcs/carton Carton size 38x39x39cm	24 Volt DC rotary vane pump. Anti-explosion design. Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane. ball-bearing design for the pump, unnecessary lubrication. Cast iron material for pump body. Thermal protection for the motor. Bypass valve efficiently protect the motor when overload. Filter screen in the inlet adapter. Inlet Fitting: 1" NPT, Outlet Fitting:1" NPT Drum Adapter Thread: 2" NPT
GS-EP-PKS12	Voltage DC 12V Power 190W  1/4hp Amps 20 amp Duty cycle 30min Max suction lift (Dry)  2.1m for Petrol,  2.5m for diesel Max flow 20GPM (75LPM) Motor Speed 2800rpm Motor Speed (No-loading) 3600rpm Discharge pressure 14psi Min Liquid Temp -15 °F (-26 °C) Max Liquid Temp 150 °F (66 °C)	Overall View Size: G.W./N.W: 14.5/14kgs Packing  1set/carton Carton size 43x40x31cm	12 Volt DC rotary vane pump. Anti-explosion design. Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane. ball-bearing design for the pump, unnecessary lubrication. Cast iron material for pump body. Thermal protection for the motor. Bypass valve efficiently protect the motor when overload. Filter screen in the inlet adapter. Inlet Fitting: 1" NPT, Outlet Fitting:1" NPT Drum Adapter Thread: 2" NPT 3/4" x 4m oil resistant rubber hose with static discharge core,1" x 2m steel core PVC suction hose with filter Inleter 3/4' aluminium manual nozzle. (Optional self-closing nozzle)
GS-EP-PKS24	Voltage DC 24V Power 190W  1/4hp Amps 10 amp Duty cycle 30min Max suction lift (Dry)  2.1m for Petrol,  2.5m for diesel Max flow 20GPM (75LPM) Motor Speed 2800rpm Motor Speed (No-loading) 3600rpm Discharge pressure 14psi Min Liquid Temp -15 °F (-26 °C) Max Liquid Temp 150 °F (66 °C)	Overall View Size: G.W./N.W: 14.5/14kgs Packing  1set/carton Carton size 43x40x31cm	24 Volt DC rotary vane pump. Anti-explosion design. Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane. ball-bearing design for the pump, unnecessary lubrication. Cast iron material for pump body. Thermal protection for the motor. Bypass valve efficiently protect the motor when overload. Filter screen in the inlet adapter. Inlet Fitting: 1" NPT, Outlet Fitting:1" NPT Drum Adapter Thread: 2" NPT 3/4" x 4m oil resistant rubber hose with static discharge core,1" x 2m steel core PVC suction hose with filter Inleter 3/4' aluminium manual nozzle. (Optional self-closing nozzle)
GS-EP-PK12	Voltage DC 12V Power 190W  1/4hp Amps 20 amp Duty cycle 30min Max suction lift (Dry)  2.1m for Petrol,  2.5m for diesel Max flow 20GPM (75LPM) Motor Speed 2800rpm Motor Speed (No-loading) 3600rpm Discharge pressure 14psi Min Liquid Temp -15 °F (-26 °C) Max Liquid Temp 150 °F (66 °C) Meter flow rate 20-120 L/min Meter precision ±1%	G.W./N.W.: 23/21kg Packing  1set/carton Outer Carton 43x40x31cm	12 Volt DC rotary vane pump. Anti-explosion design. Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane. ball-bearing design for the pump, unnecessary lubrication. Cast iron material for pump body. Thermal protection for the motor. Bypass valve efficiently protect the motor when overload. Filter screen in the inlet adapter. Inlet Fitting: 1" NPT, Outlet Fitting:1" NPT Drum Adapter Thread: 2" NPT 3/4" x 4m oil resistant rubber hose with static discharge core,1" x 2m steel core PVC suction hose with filter Inleter 3/4' aluminium manual nozzle. (Optional self-closing nozzle) Mechanical meter with aluminium die-casting body. Easy to assemble, adjust and return to zero.
GS-EP-PK24	Voltage DC 24V Power 190W  1/4hp Amps 10 amp Duty cycle 30min Max suction lift (Dry)  2.1m for Petrol,  2.5m for diesel Max flow 20GPM (75LPM) Motor Speed 2800rpm Motor Speed (No-loading) 3600rpm Discharge pressure 14psi Min Liquid Temp -15 °F (-26 °C) Max Liquid Temp 150 °F (66 °C) Meter flow rate 20-120 L/min Meter precision ±1%	G.W./N.W.: 23/21kg Packing  1set/carton Outer Carton 43x40x31cm	24 Volt DC rotary vane pump. Anti-explosion design. Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane. ball-bearing design for the pump, unnecessary lubrication. Cast iron material for pump body. Thermal protection for the motor. Bypass valve efficiently protect the motor when overload. Filter screen in the inlet adapter. Inlet Fitting: 1" NPT, Outlet Fitting:1" NPT Drum Adapter Thread: 2" NPT 3/4" x 4m oil resistant rubber hose with static discharge core,1" x 2m steel core PVC suction hose with filter Inleter 3/4' aluminium manual nozzle. (Optional self-closing nozzle) Mechanical meter with aluminium die-casting body. Easy to assemble, adjust and return to zero.
GS-EP-PK12-1	Voltage DC 12V Power 190W  1/4hp Amps 20 amp Duty cycle 30min Max suction lift (Dry)  2.1m for Petrol,  2.5m for diesel Max flow 20GPM (75LPM) Motor Speed 2800rpm Motor Speed (No-loading) 3600rpm Discharge pressure 14psi Min Liquid Temp -15 °F (-26 °C) Max Liquid Temp 150 °F (66 °C) Meter flow rate 20-120 L/min Meter precision ±1%	G.W./N.W.: 17.5/17kg Packing  1set/carton Outer Carton 43x40x31cm	12 Volt DC rotary vane pump. Anti-explosion design. Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane. ball-bearing design for the pump, unnecessary lubrication. Cast iron material for pump body. Thermal protection for the motor. Bypass valve efficiently protect the motor when overload. Filter screen in the inlet adapter. Inlet Fitting: 1" NPT, Outlet Fitting:1" NPT Drum Adapter Thread: 2" NPT 3/4" x 4m oil resistant rubber hose with static discharge core,1" x 2m steel core PVC suction hose with filter Inleter 3/4' aluminium manual nozzle. (Optional self-closing nozzle) Mechanical meter with aluminium die-casting body. Easy to assemble, adjust and return to zero.
GS-EP-PK24-1	Voltage DC 24V Power 190W  1/4hp Amps 10 amp Duty cycle 30min Max suction lift (Dry)  2.1m for Petrol,  2.5m for diesel Max flow 20GPM (75LPM) Motor Speed 2800rpm Motor Speed (No-loading) 3600rpm Discharge pressure 14psi Min Liquid Temp -15 °F (-26 °C) Max Liquid Temp 150 °F (66 °C) Meter flow rate 20-120 L/min Meter precision ±1%	G.W./N.W.: 17.5/17kg Packing  1set/carton Outer Carton 43x40x31cm	24 Volt DC rotary vane pump. Anti-explosion design. Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane. ball-bearing design for the pump, unnecessary lubrication. Cast iron material for pump body. Thermal protection for the motor. Bypass valve efficiently protect the motor when overload. Filter screen in the inlet adapter. Inlet Fitting: 1" NPT, Outlet Fitting:1" NPT Drum Adapter Thread: 2" NPT 3/4" x 4m oil resistant rubber hose with static discharge core,1" x 2m steel core PVC suction hose with filter Inleter 3/4' aluminium manual nozzle. (Optional self-closing nozzle) Mechanical meter with aluminium die-casting body. Easy to assemble, adjust and return to zero.
GS-EO-PK220	Voltage AC230V 50HZ (±10%) Rated Power  600W  Speed Range 2800rpm Pump flow rate 40 L/min Max suction 5m Max lift 20m Meter precision ±1% Inlet & Outlet pipe dia BSPT/NPT1" Suction hose 2m Delivery hose especially fuel hose 4m	Packing  1set/carton Outer Carton 46 x 28 x 47 cm G.W./N.W. 14/13KG	Self-priming Pump AC 230V for diesel and kerosene Binding Fittings in brass Backstop to not primed
