Help Center190W Diesel Transfer Pump 12 Volt 24 Volt
Related Products
-
New 12V Pump for Oil and Gas IndustryUS$ 7 - 15MOQ: 100 Pieces -
12v Submersible Pump dc Diesel PumpUS$ 3 - 6MOQ: 1 Piece
-
24V DC Diesel Injector Pumps Diesel Fuel Pump Diesel Generator Fuel PumpUS$ 100 - 200MOQ: 1 Piece
-
AC220V Fuel Dispensing Pump PriceUS$ 50 - 120MOQ: 50 Pieces
-
12v Diesel Transfer Pump 12v Diesel Electric Fuel Pump Electric Diesel Transfer PumpNegotiableMOQ: 50 Pieces

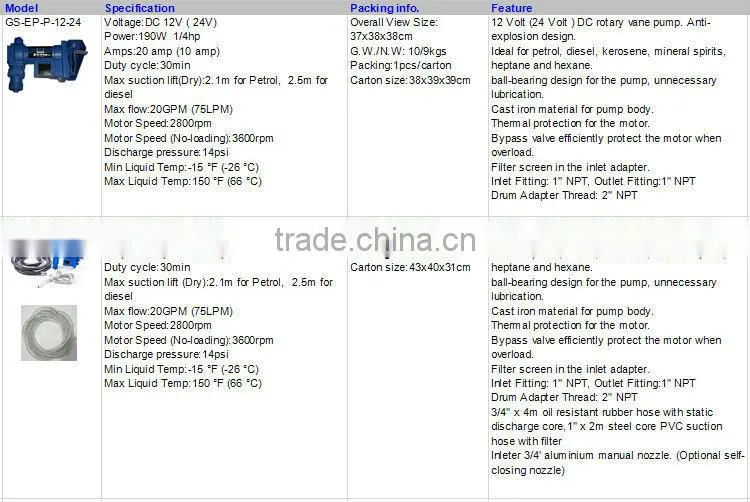

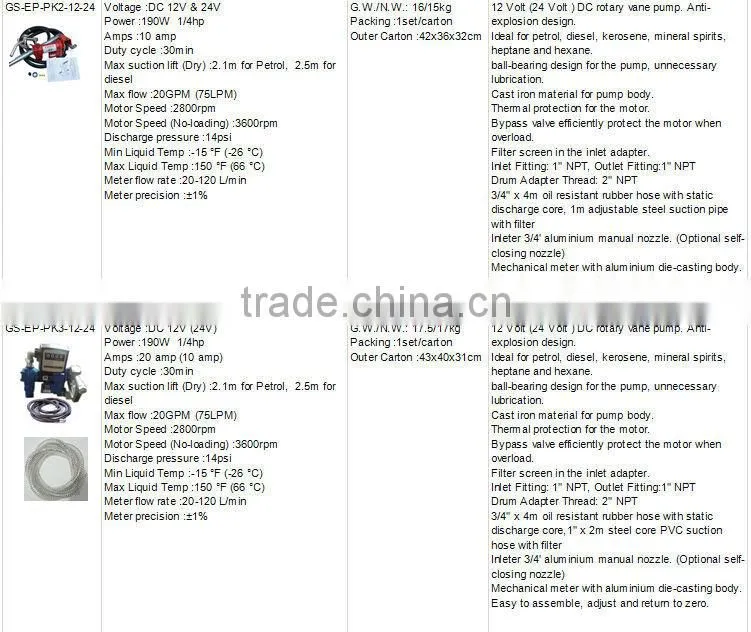

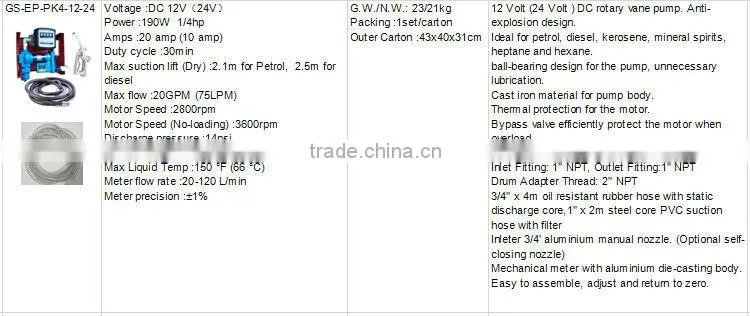

Specifications
Voltage :DC 12V & 24VPower :190W 1/4hp
Amps :10 amp
Duty cycle :30min
Voltage :DC 12V & 24V
Power :190W 1/4hp
Amps :10 amp
Duty cycle :30min
Max suction lift (Dry) :2.1m for Petrol, 2.5m for diesel
Max flow :20GPM (75LPM)
Motor Speed :2800rpm
Motor Speed (No-loading) :3600rpm
Discharge pressure :14psi
Min Liquid Temp :-15 °F (-26 °C)
Max Liquid Temp :150 °F (66 °C)
Meter flow rate :20-120 L/min
Meter precision :±1%
12 Volt (24 Volt ) DC rotary vane pump. Anti-explosion design.
Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane.
ball-bearing design for the pump, unnecessary lubrication.
Cast iron material for pump body.
Thermal protection for the motor.
Bypass valve efficiently protect the motor when overload.
Filter screen in the inlet adapter.
Inlet Fitting: 1" NPT, Outlet Fitting:1" NPT
Drum Adapter Thread: 2" NPT
3/4" x 4m oil resistant rubber hose with static discharge core, 1m adjustable steel suction pipe with filter
Inleter 3/4' aluminium manual nozzle. (Optional self-closing nozzle)
Mechanical meter with aluminium die-casting body.
Easy to assemble, adjust and return to zero.
G.W./N.W.: 16/15kg
Packing :1set/carton
Outer Carton :42x36x32cm
