Home > Electrical & Electronics > Electric Motor > AC Motor > YC , YCL Series 1 Phase/ Single Phase Electric Motor With Cast Iron Housing

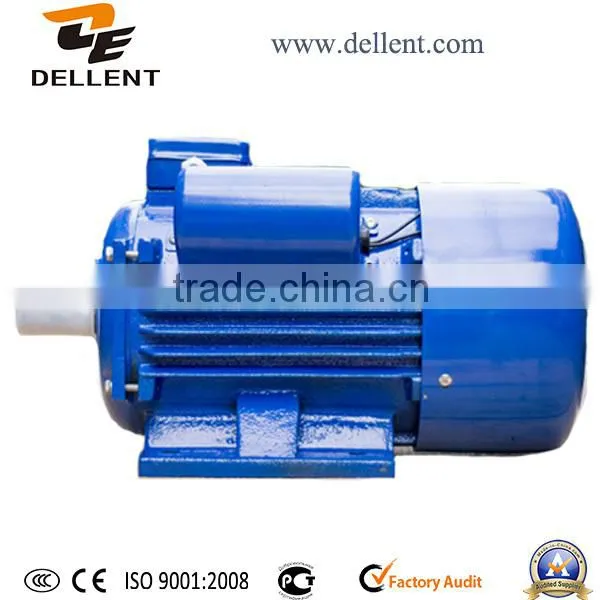

YC , YCL Series 1 Phase/ Single Phase Electric Motor With Cast Iron Housing
US$ 10.5 - 300
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
DELLENT
Model Number:
YC series single phase ac electric motors
Type:
Asynchronous Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YL Series 1 Phase Dual-Valued Electric MotorUS$ 10 - 300MOQ: 50 Pieces -
JY Series 1 Phase / Single Phase Capacitor Start Electric MotorUS$ 10.5 - 68MOQ: 50 Pieces
-
Y Series Cast Iron Housing Three-phase MotorUS$ 5 - 500MOQ: 50 Sets
-
ML Series Single-phase Capacitor Start Asynchronous Two Capacitor MotorUS$ 5 - 500MOQ: 50 Sets
-
MY Series Single-phase Capacitor Start Asynchronous Two Capacitor MotorUS$ 5 - 500MOQ: 50 Sets
Brand Name
DELLENT
Model Number
YC series single phase ac electric motors
Type
Asynchronous Motor
Frequency
50HZ , 60HZ, 50HZ , 60HZ
Output Power
0.75 KW to 3.7KW
Protect Feature
Waterproof
Phase
Single-phase
Certification
CCC, CE, CCC, CE, Other, CCC, CE, CCC, CE , SGS, ISO
AC Voltage
Other, 220, 110-240V
Place of Origin
Fujian, China
Efficiency
Other, IEC ,IE1 , IE2
Specifications
YCL Series 1 Phase/ Single phase Electric Motor1, reliable performance
2, factory directly
3, CCC CE
YC , YCL Series 1 Phase/ Single phase Electric Motor with cast iron housing CE , CCC
Introduction and Application
| YCL series electric motor is used to drive small size machine, especially for household and workshop where only need single phase power supply. | |
| 1. Low noise | |
| 2. lower temperature raising and starting current | |
| 3. higher starting torque | |
| 4. reliable operation | |
| 5. easy maintenance | |
| 6.pretty appearance | |
| Contruction Materials | |
| Frame – Cast iron | |
| End shields- Cast iron | |
| Fan cowl- steel | |
| Fan-Plastic | |
| Shaft- Medium carbon steel(stainless available on request) | |
| Operating Conditions: | |
| Power Range | 0.75 ~ 3.7KW |
| Frame Size | 90S ~ 132S |
| Enclosure: | IP44,IP54 |
| Insulation | Class B , F |
| Voltage | 220, 110 ~ 240V |
| Frequency: | 50Hz/60Hz |
| Working duty | S1 |
| Speed: | 2 Pole , 4 Pole |
|
Note: |
|
| The voltage and frequency could be made according to your request. | |
|

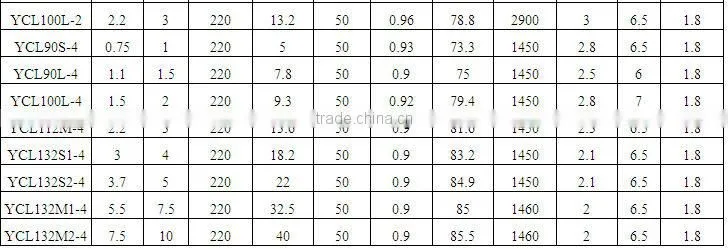

YCL Single Phase Electric Motors Technical Data | |
| Type | Out put | Voltage | Current | Freq. | Power | Eff(%) | Speed | Tstart/Tn | Ist/In | Tmax/Tn | |
| kW | HP | (V) | (A) | (Hz) | factor | (r/min) | |||||
| YCL90S-2 | 1.1 | 1.5 | 220 | 7.2 | 50 | 0.95 | 73.2 | 2880 | 2.8 | 6 | 1.8 |
| YCL90L-2 | 1.5 | 2 | 220 | 8.9 | 50 | 0.97 | 76 | 2900 | 2.8 | 7 | 1.8 |
WHY CHOOSE US (OUR ADVANTAGE)
| WHAT WE DO AT DELLENT |
| • Having self-own plants producing for stators ,rotors and some related die-casting parts since from 1995 |
| • Stamping of lamination |
| • Rotor die-casting |
| • Winding and inserting – both manual and semi-automatically |
| • Vacuum varnishing |
| • Machining shaft, housing, end shields, etc… |
| • Rotor balancing |
| • Painting – both wet paint and powder coating |
| • Motor assembly |
| • Packing |
| • Inspecting spare parts every processing |
| • 100% test after each process and final test before packing. |
|
WHAT DELLENT CAN DO FOR CUSTOMERS |
| • Dellent supplies standard products to customers. |
| • Dellent supplies standard products under customers’ brands and packaging, etc |
| • Dellent develops any new products together with the customers. |
