JY Series 1 Phase / Single Phase Capacitor Start Electric Motor

Name: JY Series 1 Phase / Single Phase Capacitor Start Electric Motor
Brand: DELLENT
SKU: 101012991
Availability: InStock

US$ 10.5 - 68 MOQ: 50 Pieces

Key Specifications

Brand Name:

DELLENT

Model Number:

JY series

Type:

Asynchronous Motor

Fuan Dellent Electric & Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou China

Delivery Detail:

Delivery time depends on order quantity.

Brand Name DELLENT

Model Number JY series

Type Asynchronous Motor

Frequency 50HZ , 60HZ, 50HZ , 60HZ

Output Power 0.12 KW to 1.1KW

Protect Feature Waterproof

Phase Single-phase

Certification CCC, CE, CCC, CE, Other, CCC, CE, CCC, CE , SGS, ISO

AC Voltage Other, 220, 110-240V

Place of Origin Fujian, China

Efficiency Other, IEC ,IE1 , IE2

Specifications

JY Series 1 Phase Capacitor Start Electric Motor
1, reliable performance
2, factory directly
3, CCC CE

JY Series 1 Phase Capacitor Start Electric Motor

Introduction and Application

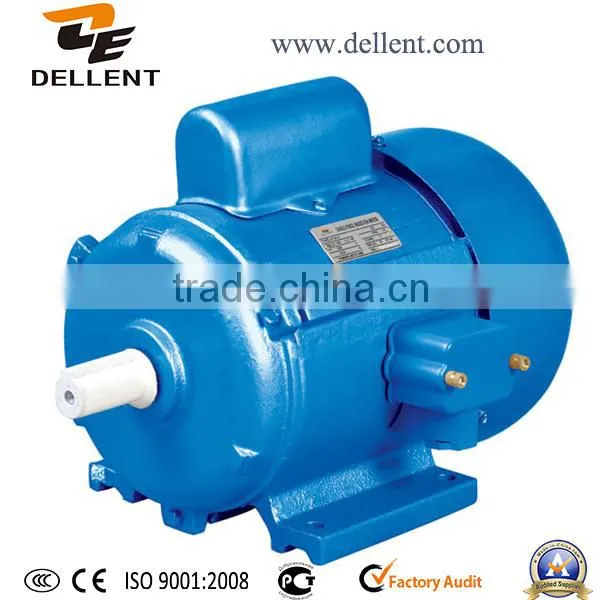

JY series motors are totally enclosed fan cooled single phase squirrel cage capacitor start induction motor.
This series motor has 3 frame sizes such as 09, 1, and 2. The frames are made of cast iron.
JY motor is suitable for any places where a larger starting torque and the starting current to be limited are required. It is used as driving motor of air compressors, refrigerators, medical apparatus and other small machines in which full-load starting is demanded.
Contruction Materials

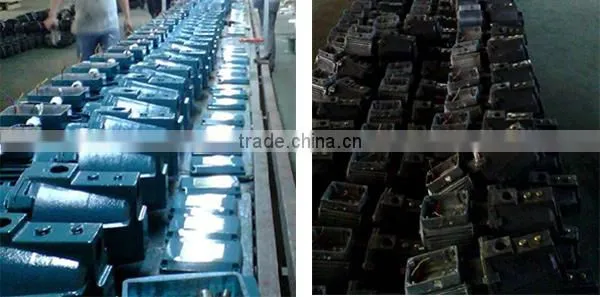

Frame – Cast iron
End shields- Cast iron
Fan cowl- steel
Fan-Plastic
Shaft- Medium carbon steel(stainless available on request)
Operating Conditions:
Power Range	0.12 ~ 1.1KW
Enclosure:	IP44,IP54
Insulation	Class B , F
Voltage	220, 110 ~ 240V
Frequency:	50Hz , 60Hz
Working duty	S1
Speed:	2 Pole , 4 Pole
Note:
The voltage and frequency could be made according to your request.
JY single phase ac motors Technical Data
Type	Input Power		Current(A)	Power Factor	EFF(%)	Speed(r/min)
Type	KW	HP	Current(A)	Power Factor	EFF(%)	Speed(r/min)
JY09B-2	0.18	1/4	2.15	0.76	50	2800
JY09A-2	0.25	1/3	2.82	0.76	53	2800
JY1B-2	0.37	1/2	3.74	0.75	60	2800
JY1A-2	0.55	3/4	5.36	0.74	63	2800
JY2B-2	0.75	1	6.81	0.77	65	2800
JY2A-2	1.1	1.5	9.45	0.79	67	2800
JY09B-4	0.12	1.6	1.7	0.63	48	1400
JY09A-4	0.18	1.4	2.52	0.65	50	1400
JY1B-4	0.25	1.3	3.2	0.67	53	1400
JY1A-4	0.37	1.2	4.03	0.72	58	1400
JY2B-4	0.55	3.4	5.12	0.74	66	1400
