Home > Products > AC Alternator > 3 phase alternator STC 20KW 400V alternators

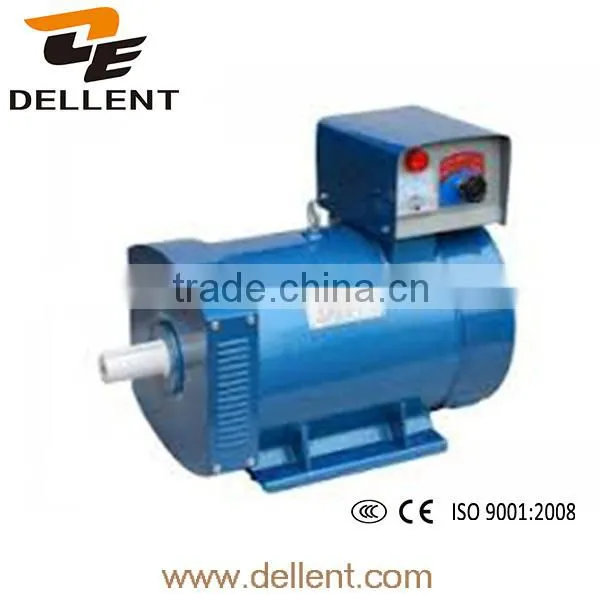

3 phase alternator STC 20KW 400V alternators
- 5000 Piece / Pieces per Month
- Fuzhou China
- T/T L/C D/P D/A Credit Card
Product Details
Place of Origin: | Fujian, China | Brand Name: | DELLENT | Model Number: | china alternator STC Series |
Output Type: | AC Three Phase | Speed: | 1500RPM ,1800RPM | Frequency: | 50HZ ,60HZ |
Rated Power: | 3KW to 50KW | Rated Voltage: | 380V | Rated Current: | 5.4A--90.2A |
Product Description
Specifications
3 phase alternators STC 20KW 400V1, 100% copper
2, factory directly
3, ISO CE SGS CQC
4, reliable
3 phase alternator STC 20KW 400V alternators
Product Description
This series generators are to be used in town, countryside, worksites, mountain and pasture as electric power source for lighting purpose, it can also he used as reserved power source for emergent case using.
The generators with rotary field type and adopt harmonic excitation system, easy operation and maintenance. china cheap generators, china alternators, alibaba
The generators are three-phase, four-wire type, adopting star connection with neutral point. The rated line voltage is 400V, phase voltage 230V, frequency 50Hz. power factor 0.8(lag). We can provide 60Hz and the other voltage's generator according to the customer's request.
They can be coupled with a prime mover directly or through v-belt making right or reverse continuous rotation at the rated speed. When the rotation speed of prime mover changs 3% or so and load varies in the range of 0~100% cos j 0.8~1.0, the generators offer constant voltage, when sudden change (increase or decrease) of load, the generator will soon return to their normal working state, at the same time, without any starting device the generator can directly start an unloaded squirrel cage induction motor. 3 phase alternator STC 20KW 400V alternator 3 phase alternator STC 20KW 400V alternator | |||||||||||||||
Operating Conditions
|
Three phase alternator STC Series Technical Datas
Model | Output (kW) | Voltage(V) | Current (A) | Power factor | Speed | Pole number | |
KVA | kW | (cos) | (r.p.m) | ||||
STC-3 | 3.8 | 3 | 400 | 5.4 | 0.8 | 1500 | 4 |
STC-5 | 6.3 | 5 | 400 | 9 | 0.8 | 1500 | 4 |
STC-7.5 | 9.4 | 7.5 | 400 | 13.5 | 0.8 | 1500 | 4 |
STC-8 | 10 | 8 | 400 | 14.4 | 0.8 | 1500 | 4 |
STC-10 | 12.5 | 10 | 400 | 18.1 | 0.8 | 1500 | 4 |
STC-12 | 15 | 12 | 400 | 21.7 | 0.8 | 1500 | 4 |
STC-15 | 18.8 | 15 | 400 | 27.1 | 0.8 | 1500 | 4 |
STC-20 | 25 | 20 | 400 | 36.1 | 0.8 | 1500 | 4 |
STC-24 | 30 | 24 | 400 | 43.3 | 0.8 | 1500 | 4 |
STC-30 | 37.5 | 30 | 400 | 54.1 | 0.8 | 1500 | 4 |
STC-40 | 50 | 40 | 400 | 72.2 | 0.8 | 1500 | 4 |
STC-50 | 62.5 | 50 | 400 | 90.2 | 0.8 | 1500 | 4 |
WHAT WE DO AT DELLENT |
• Having self-own plants producing for stators ,rotors and some related die-casting parts since from 1995 |
• Stamping of lamination |
• Rotor die-casting |
• Winding and inserting – both manual and semi-automatically |
• Vacuum varnishing |
• Machining shaft, housing, end shields, etc… |
• Rotor balancing |
• Painting – both wet paint and powder coating |
• Assembling |
• Packing |
• Inspecting spare parts every processing |
• 100% test after each process and final test before packing. |
WHAT DELLENT CAN DO FOR CUSTOMERS |
• Dellent supplies standard products to customers. |
• Dellent supplies standard products under customers’ brands and packaging, etc |
• Dellent develops any new products together with the customers. |
CERTIFICATION
Contact Us
- Fuan Dellent Electric & Machinery Co., Ltd.
- Contact nameVincent Lin
- Phone0086-593-6608788
- AddressNo. 1, Dayangdang, Qinxiyang, Chengyang Town
