Three Phase Stamford Alternator Used for Diesel Generator
US$ 360 - 9,500
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
DELLENT
Model Number:
DHG Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Directly ! Single Phase Alternator Used for Diesel Generator ST SeriesUS$ 30 - 800MOQ: 5 Pieces -
600kw Stamford AC Alternator Three Phase From ChinaUS$ 360 - 9,500MOQ: 5 Pieces
-
ST Series Single-phase A.C. Synchronous Alternative Energy GeneratorUS$ 35 - 800MOQ: 10 Sets
-
AC Brushless Alternator Generator From 6KW to 2000kwUS$ 360 - 9,500MOQ: 5 Pieces
-
STC Series Three-phase A.C. Synchronous Generator Most Popular China Supplier Quality ChoiceUS$ 35 - 800MOQ: 10 Sets
Place of Origin
Fujian, China
Brand Name
DELLENT
Model Number
DHG Series
Output Type
AC Three Phase
Speed
1500RPM ,1800RPM
Frequency
50HZ ,60HZ
Rated Power
6KW to 2000KW
Rated Voltage
380V
Rated Current
10.8A--3600A
Specifications
Three Phase Stamford alternator used for diesel generator1, 100% copper
2, factory directly
3, ISO CE SGS CQC
4, reliabel

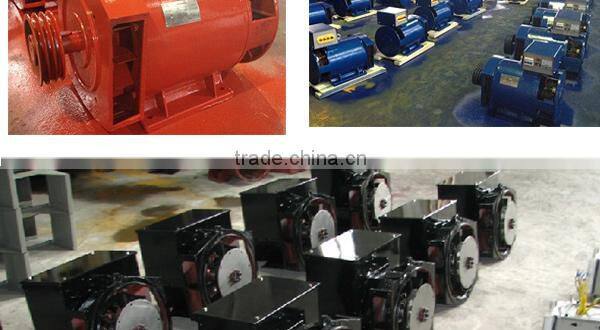

Three Phase Stamford alternator used for diesel generator
Product Description
Features:
1) Any permanent magnetic generators, providing invariable excitation on all occasions.
2) Easy to be connected with power network or other generators. Standard 2/3 pitches windings check excessive midline current.
3) Balanced rotor with single or two sealed ball bearings
4) Convenient installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
Copy Stamford Alternator Technical Datas
| TYPE | Rated Power(1500rpm 50HZ 400V) | KG | ||||||
| Continuous/40 | Stand by/40 | Stand by/27 | ||||||
| H125K | H150K | H163K | ||||||
| KVA | KW | (%) | KVA | KW | KVA | KW | ||
| DHG164B | 9.4 | 8 | 78.8 | 11 | 8.8 | 12 | 9.6 | 90 |
| DHG164C | 12.5 | 10 | 80.6 | 13.8 | 11 | 15 | 12 | 96 |
| DHG164D | 15 | 12 | 81.2 | 17.5 | 14 | 20 | 16 | 100 |
| DHG184E | 20 | 16 | 84.5 | 22.5 | 18 | 25 | 20 | 120 |
| DHG184F | 25 | 20 | 86 | 27.5 | 22 | 30 | 24 | 150 |
| DHG184G | 30 | 24 | 86.3 | 32.5 | 26 | 35 | 28 | 160 |
| DHG184H | 37.5 | 30 | 86.6 | 40 | 32 | 41.3 | 33 | 216 |
| DHG224B | 42.5 | 34 | 87 | 45 | 36 | 47.5 | 38 | 250 |
| DHG224C | 50 | 40 | 88 | 52.5 | 42 | 55 | 44 | 270 |
| DHG224D | 60 | 48 | 88.6 | 62.5 | 50 | 65 | 52 | 290 |
| DHG224E | 72.5 | 58 | 90 | 77.5 | 62 | 80 | 64 | 320 |
The Power Range We Can Make Is from 6KW to 1000KW.
WHY CHOOSE US (OUR ADVANTAGE)
| WHAT WE DO AT DELLENT |
| • Having self-own plants producing for stators ,rotors and some related die-casting parts since from 1995 |
| • Stamping of lamination |
| • Rotor die-casting |
| • Winding and inserting – both manual and semi-automatically |
| • Vacuum varnishing |
| • Machining shaft, housing, end shields, etc… |
| • Rotor balancing |
| • Painting – both wet paint and powder coating |
| • Assembling |
| • Packing |
| • Inspecting spare parts every processing |
| • 100% test after each process and final test before packing. |
WHAT DELLENT CAN DO FOR CUSTOMERS |
| • Dellent supplies standard products to customers. |
| • Dellent supplies standard products under customers’ brands and packaging, etc |
| • Dellent develops any new products together with the customers. |

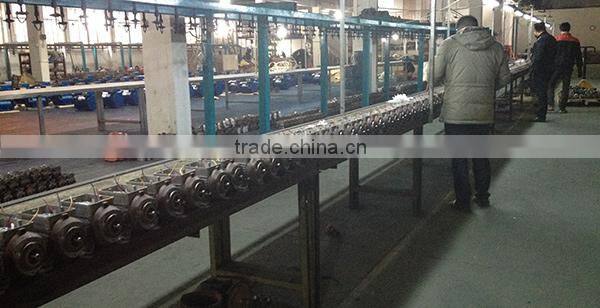

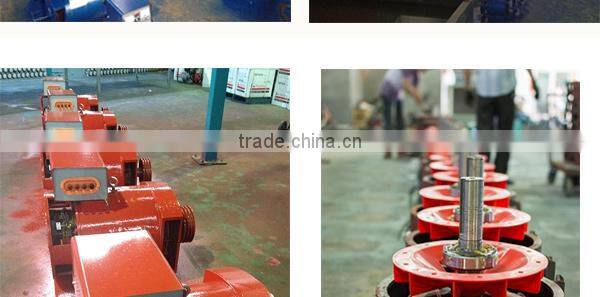

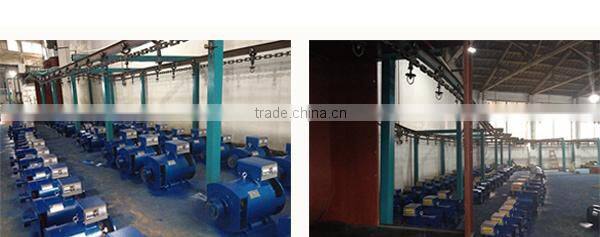

Company View

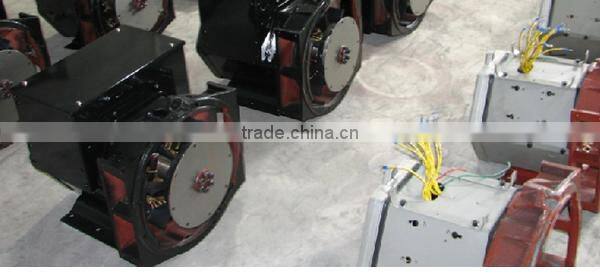

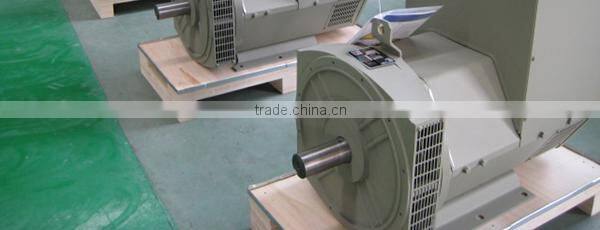

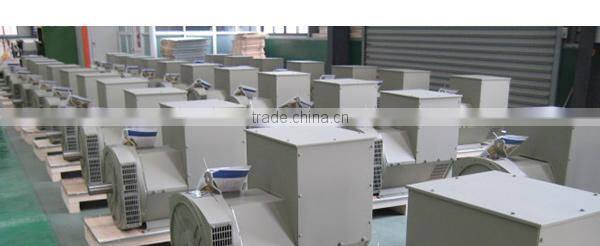

DELLETN PRODUCTS PACKING
CERTIFICATION
/ http://dellent-motor.en.china.cn
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer
Year Established
2010
Factory Size
5,000-10,000 square meters
Total Employees
11 - 50 People
