Specifications
rotary label die cutting machine can die cut materialSelf-adhesive lable,anti-false lable,film lable,AL foil,paper,etc

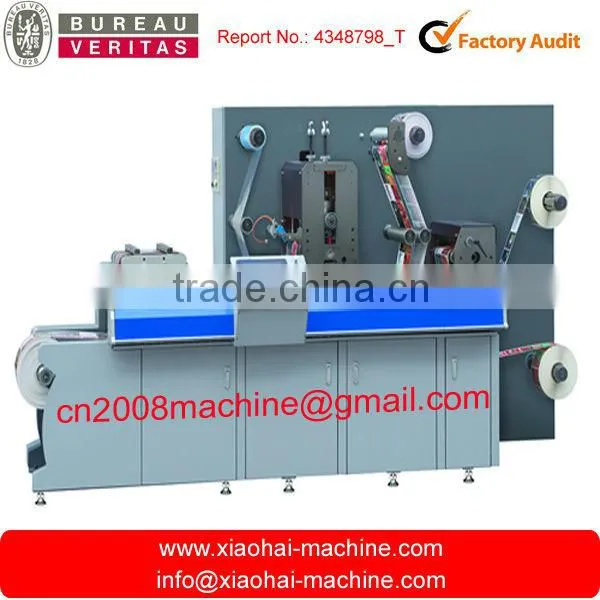

ZM-320 rotary label die cutting machine
ZM-320 rotary/semi-rotary label die-cutting machine is new developed converting machine equips with inline slitter.

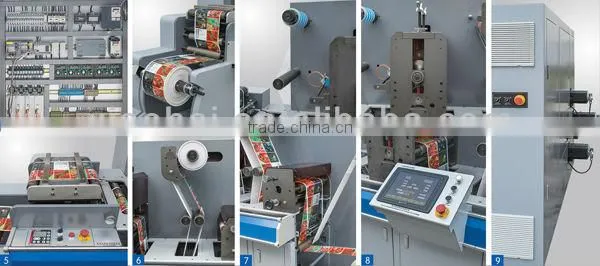

This machine adopts latest Rexrtoh-Bosch (Germany) servo and control system, include: unwinder, web-guider, lamination, register die-cutter, slitter and rewinder.
The register die-cutting system is our patent product, it can be full rotary or semi-rotary die-cutter according to the production requirement.
When semi-rotary die-cutter, the tension among unwinder, web-guider and rewinder will be the same (different from traditional intermittent type), the material will not run away during the die-cut.
Semi-rotary die-cutting unit adopts one big magnetic cylinder, if you have different applications, the only job is to change the flexible die.
ZM-320 machine has the characteristic of fast speed, super accurate, easy operation, high efficiency and less cost. It’s good for all kind of label die-cutting jobs, include shrot run to long run.
If the job is large quantity, then you can change the magnetic roller acccordingly, it will highly increase the die-cutting quality and output.
ZM-320 rotary/semi-rotary label die-cutting machine committes to make the maximum profit for you, it’s an ideal converting machine for the printing house.

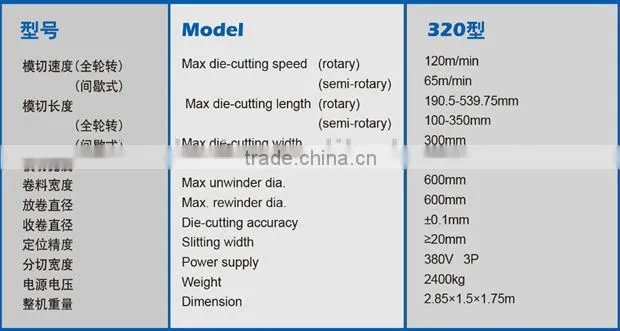

Main technical parameters:
Max die-cutting speed (rotary): |
120m/min |
Max die-cutting speed (semi-rotary): |
65m/min |
Max die-cutting length (rotary): |
190.5-539.75mm |
Max die-cutting length (semi-rotay): |
100-350mm |
Max die-cutting width: |
300mm |
Max web width: |
320mm |
Max unwinder dia.: |
700mm |
Max. rewinder dia.: |
600mm |
Die-cutting accuracy: |
+-0.1mm |
Slitting width: |
>=20mm |
Power supply: |
380V 3P |
Weight: |
2400Kg |
Dimension: |
3.22x1.68x1.66m |
