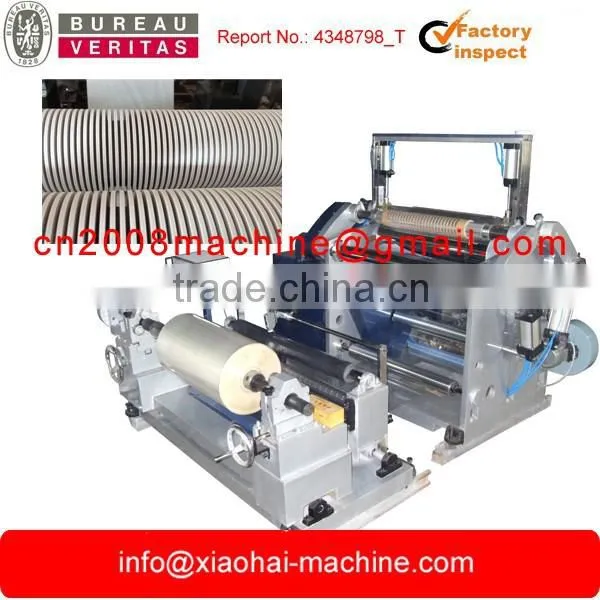

Help Center5mm-50mm Surface Rolling Slitting and Rewinding Machine
Related Products
-
Two Ply Thermal Till Roll Fax Paper SlitterUS$ 1 - 2MOQ: 1 Set -
Auto Two-layer Thermal Paper Slitter and Rewinder MachineUS$ 1 - 2MOQ: 1 Set
-
Dual Axis ATM Receipt Paper Slitting Machine/Thermal Paper Roll Slitter RewinderUS$ 1 - 2MOQ: 1 Set
-
Full Automatic Thermal Paper Slitting Machine (Thermal Paper Slitting Rewinder)US$ 14,500 - 15,200MOQ: 1 Set
-
ATM Cash Paper Rolling Slitting MachineUS$ 14,500 - 15,200MOQ: 1 Set
Specifications
The machine is applicable for slitting of BOPP, PET, PE, PP, PVC, aluminum foil, paper and isolating material.5mm-50mm Surface rolling Slitting and rewinding Machine
Ⅰ. Application
The machine is applicable for slitting of BOPP, PET, PE, PP, PVC, aluminum foil, paper and isolating material.
Ⅱ.Feature
1. This machine adopts center-winding and surface-contacting and winding.
2.It is equipped with photoelectric automatic deviation-rectifying device, invariable tension magnetic powder arrester and clutch.
3.It is equipped with automatic meter-calculating measures and automatic stopping device.
- 4. Frequency variable and spped adjustable for mainframe.
5.Retractable roll-axis use of inflatable.
Ⅲ.Main Technical Parameter
Model |
ZKF-700 |
ZKF-1100 |
Suitable material |
PET,PP, BOPP, PE, aluminum foil,etc |
|
Max. Width of unwind material |
700mm |
1100mm |
Min. Width of product |
5mm |
10mm |
Slitting speed |
120-180m/min |
120180m/min |
Unwind diameter |
1000mm/600mm |
1000mm/600mm |
Rewind diameter |
2×450mm |
2×450mm |
Rewind powder clutch |
50N.M |
50N.M |
Main motor |
2.2kw |
3.5kw |
Waste edge motor |
0.35kw |
0.55kw |
Total power |
3kw |
4.5kw |
Weight |
1800kg |
2200kg |
Overall size |
1.8×1.4×1.2m |
1.8×1.6×1.2m |
,0,0); mso-border-right-alt:0.5000pt solid rgb(0,0,0); border-top:none; ; mso-border-top-alt:0.5000pt solid rgb(0,0,0); border-bottom:0.5000pt solid rgb(0,0,0); mso-border-bottom-alt:0.5000pt solid rgb(0,0,0); " >
1.8×1.6×1.2m
