PP Film Making Machine

Specifications

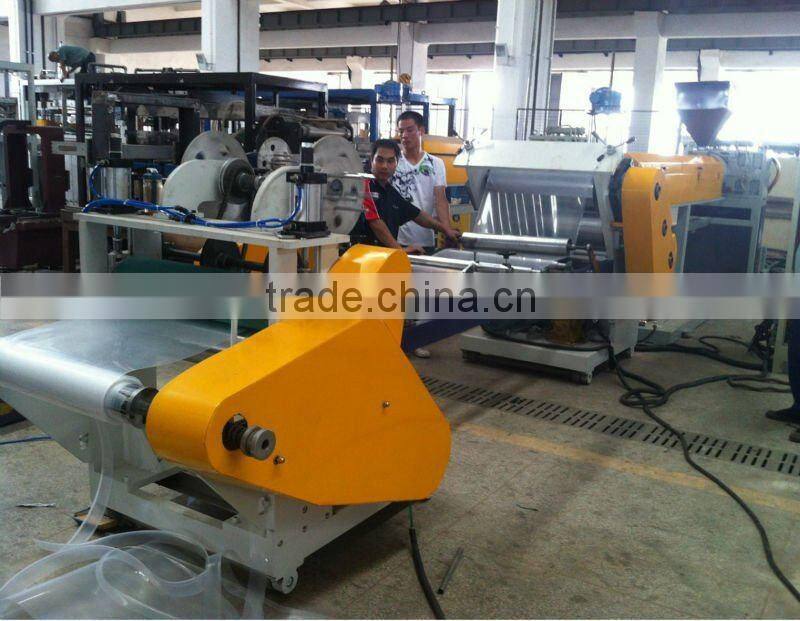

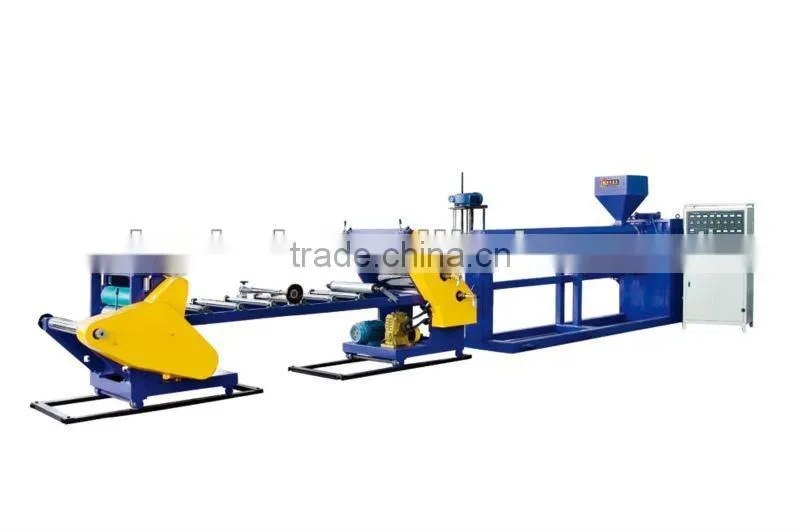

PP film making machine

1. working procedure

feeding→extruder→ filter(screen changing)→ forming(die head) → three roller polishing →edge cutting(after cooling)→ drawing→rewinding→inspection→storage

2:machine Feature

1)The screw of extruder adopts suitable ratio of length and diameter.

 2) Nice formed effect.

 3)Equal thickness of sheet.

 4)Same running speed.

 5)Use advanced hydraulic pressure net changing fitting without stopping the machine.

 6)Convenient operation and excellent function improve the production efficiency.

 7)use the aluminum heating ,good for keeping temperature .

I:GENERAL INTRODUCTION

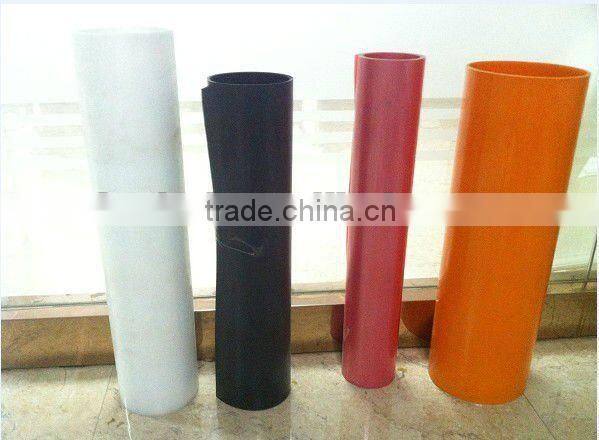

1) Mainly used to produce PP, PS(HIPS),PE plastic sheets for beverage mugs, ice cream cups, jelly cups and other packing containers

2)Max. Sheet width: 700mm

 3) Sheet thickness is 0.3-2.0mm

 4)24 HOURS production capacity is 3500kg

 5) Output: 150kg/hour

 6) Total start power: 120kw

 7)average consumption :80kw

 8) Overall dimensions: 13m x 2.5m x 2 m

 9)weight of machine 5(ton)

 II:MAIN PART OF SHEET EXTRUDER MACHINE

 1)gearbox model: hardface model 250 ,speed rato:14:1(made in china xiaoshan)

 2) Screw diameter: 100mm,L/D ration 32:1(zhoushan)

 3)Screw rotating speed: 0—90rpm

 4)Screw material: 38CrMOALA

 5)Screw heat treatment Nitriding hardness≥HV85,depth:0.5—0.7mm

 6)Barrel heat treatment Nitriding hardness≥HV950,depth: 0.5—0.7mm

 7) Main motor power: 55kw(made in china)

 8)screw heating power:6area x7kw/area=42kw

 9)Tee joint heating and net change device heating power is :2area x3power/area=6kw

10) T-die Runner: clothes-hanger pattern

11)t-die width :800mm,heating power=15kw( 5area x3 kw/area=15kw)

 12)motor net change device , motor power:2.2kw

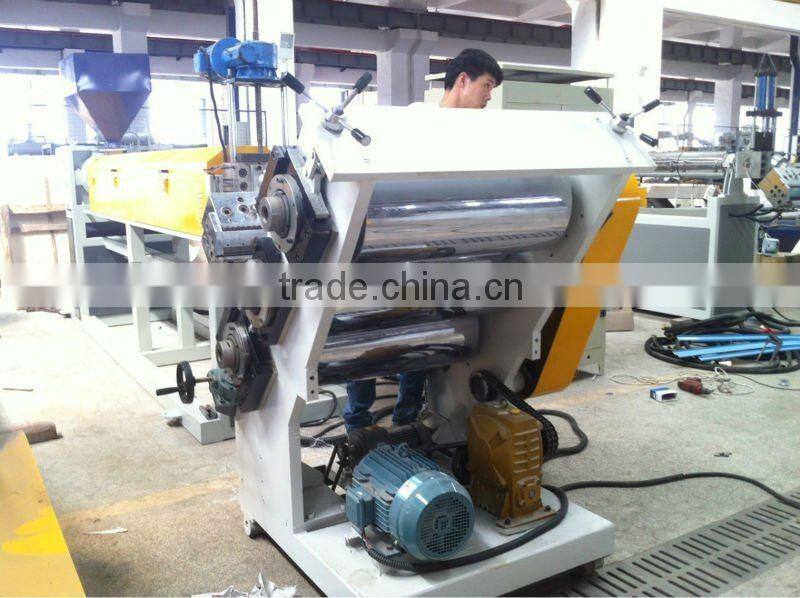

III:THREE ROLLER PART

1)three roller size :diameter 350x770mm(made in china )

2) Three roller material: No.45 seamless steel tube, inner surface of

3)Three roller motor:5.5kw

4)Three roller reduction box:wpa-120 speed ratio :120-A

5)Three roller model :45degree arrange(the same as above picture)

  6) Three rollers bounce: ≤0.011mm

7) Three rollers surface roughness≤Ra 0.025

8) Three rollers transmission: one motor control three roller simultaneous transmission

9) Three rollers linear speed: 20 m/min

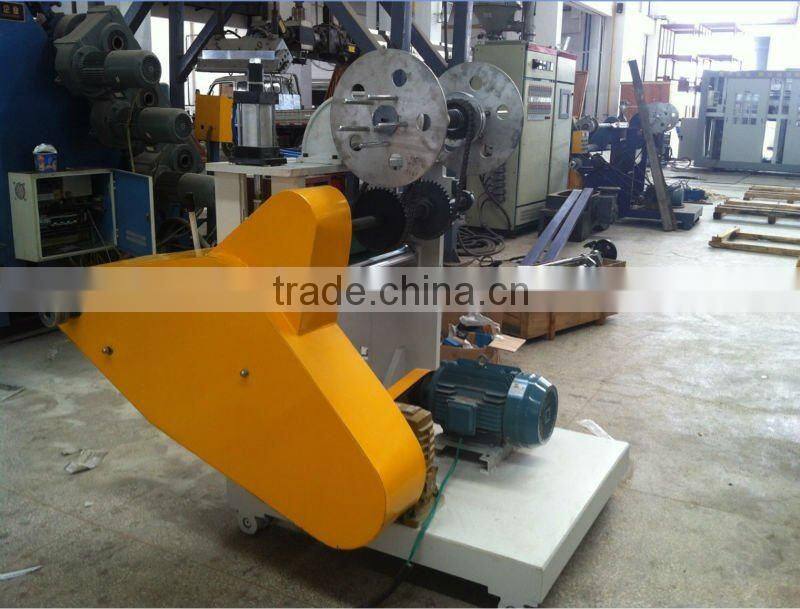

 IV: (Traction) part

 1)Rubber roller: diameter180×770mm (place of origin)

 2)Traction roller: diameter180×770mm (made in our factory)

 3)rewinding sheet roller: 2 pieces (industry standard)

 4)Lateral sheet rewinding device (two sides): 1 set

 5)Cutter: 1 group

 6)Motor: 3KW-6

 7)Speed reducer 100, speed ratio: 100-A (JIEPAI, made in hangzhou)

 8)Transition roller and sliding rollers altogether 7 pieces

 9)Traction speed: 21 m/min

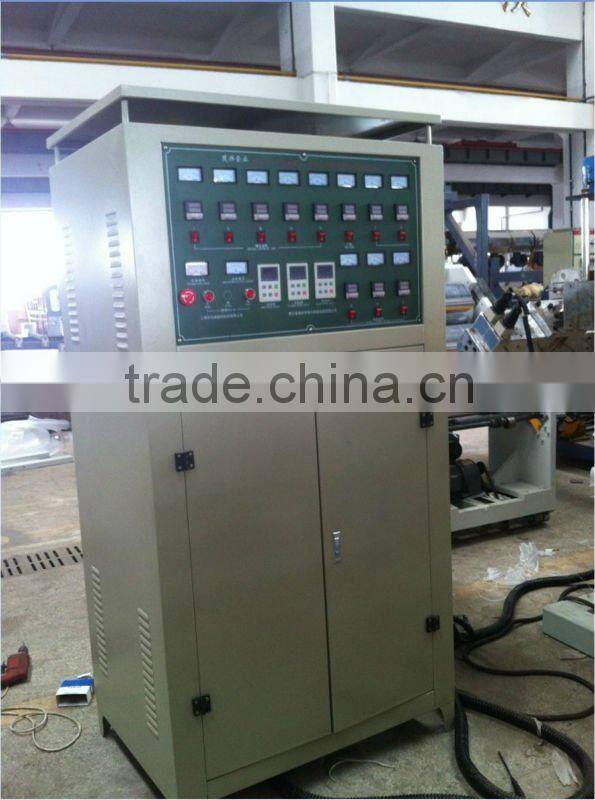

 V:Electrical Part

 1) Inverter: 55KW (1 set), 5.5KW (1 set) ,3.7kw(1set)

 2) Inovance inverter , made in Shenzhen)

 3)Solid state relay: Lanning (Sino-US joint venture)

 4)Breaker and A.C. contactor: LS, made in S. Korea

 5)Temperature: AISET, made in Shanghai

 6)Aviation plug: made in Beijing

 7)Other electrical components: CHINT, made in China

 8)Thermal tube radiator seat: made in Yueqing, Zhejiang

we also have production line:
1.MX-700L plastic sheet extruder:use to produce PP,PS sheet from raw material.
2.CK660-B thermoforming machine:feeding PP,PS sheet in this machine to produce cups,plates and other plastic container.
3.curling machine:curling the edge of cup.  It’s according to your sample.
4.cup stacking machine:use to stack the cup automatically. also you can choose worker to stack the cups.
5. F650 grinder/crusher: it is used for recycle the waste sheet.
6.Mixer:  mixing the new material and the recycle material
oling tower:  the sheet extruder MX-700L and MX660-B thermoforming machine running need the cool water for working.
8. Plastic cup lid making machine: use to produce cup lid.
9.cup printing machine:use to print picture/design on the cup.
10. counting and packing machine:use to counting and packing the cup in plastic bag. also you can choose worker to count and pack the cups.
11. Air compressor:extruder and thermoforming machine and stacking machine running need the air for working.
