Home > Products > Plastic bag production line > HD/ LD/LLDPE HIGH SPEED PLASTIC INFLATION MACHINE

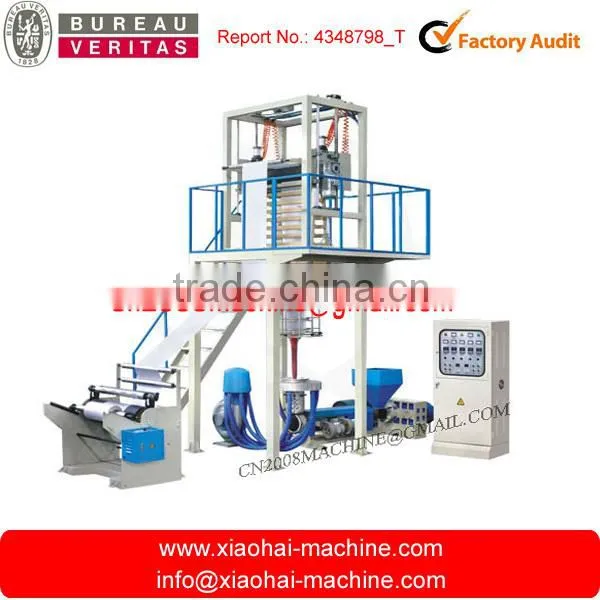

HD/ LD/LLDPE HIGH SPEED PLASTIC INFLATION MACHINE
Negotiable
/ Set
1 Set(Min.Order)
- 30 Set / Sets per Month
- Ningbo China
- Credit Card
You May Like
-
High speed Plastic bottle making 0.5L- 2L 6000BPH Automatic PET bottle blow blowing mold molding machine prices
-
Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine
-
Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine Price
-
custom design semi-automatic preform pet plastic bottle blowing blow molding machine high speed
-
Semi-automatic Two Cavity Bottle Making Machine Blow Molding Equipment
-
Plastic bottle blowing machine Beverage bottle blowing machine Medicine bottle blowing machine
Product Details
| Condition: | New | Application: | Film | Plastic Processed: | PE |
| Blow Moulding Type: | Extrusion Blow Moulding | Automatic: | Yes | Place of Origin: | Zhejiang, China |
| Brand Name: | Xiaohai | Model Number: | SJ-A | Voltage: | 380V |
| Power(W): | 18KW | Dimension(L*W*H): | 4800x1800x3600mm | Weight: | 1500KG |
| Certification: | CE | Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
It is used for blowing the plastic film of low density polyethylene(LDPE), high density polythylene(HDPE)HD/ LD/LLDPE HIGH SPEED PLASTIC INFLATION MACHINE
Usage:
1.It is used for blowing the plastic film of low density polyethylene(LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE) etc.

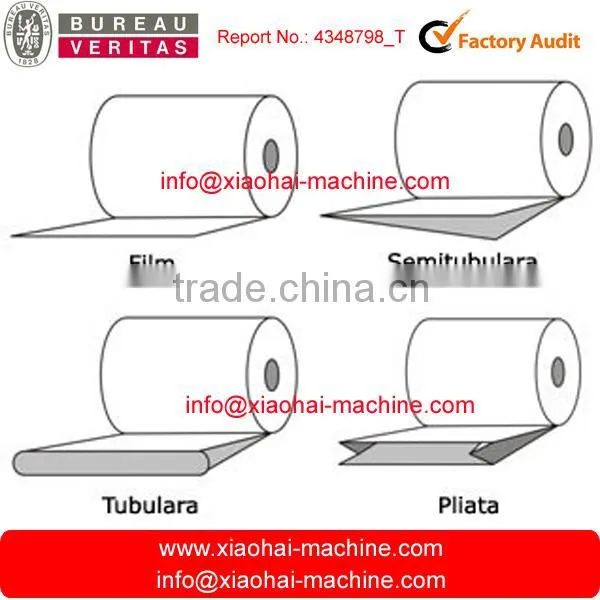

2.The film is widely used for packing bag,such as T-shirt bag,shopping bag,clothing bag,garbage bag and agriculture covering film etc
Specification:
Model No. | SJ-A50 | SJ-A55 | SJ-A60 |
Screw Diameter | 50mm | 55mm | 60mm |
Screw Ratio(L/D) | 28:1 | 28:1 | 28:1 |
Max.Folding Width of Film | 600mm | 800mm | 1000mm |
Single Side Thickness of Film | 0.008-0.10mm | 0.008-0.10mm | 0.008-0.10mm |
Power of Main Motor | 7.5KW | 11KW | 15KW |
Output | 30kg/h | 40kg/h | 50kg/h |
Total Power | 18Kw | 22Kw | 26Kw |
Weight of Machine | 1500kg | 1800kg | 2100kg |
Dimension(mm) | 4800x1800x3600 | 5000x2000x4000 | 5200x2200x4400 |
CONTACT US FOR MORE DETAILS.
Contact Us
- Wenzhou Xiaohai I/E Co., Ltd.
- Contact nameLinda Cheung
- Phone86-577-25693333 , 25693332, 25
- AddressRoom 402, Unit 3, Building 5, Huaxiang Garden, Luoyang Avenue
