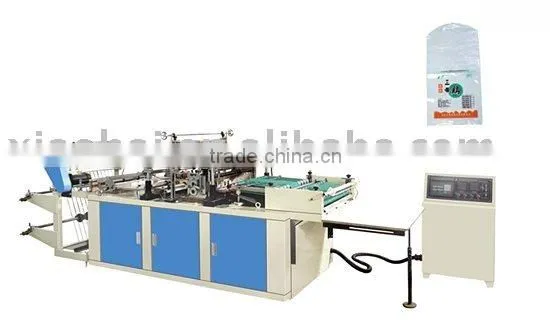

Help CenterPVC PE Arc Shaped Round Buttom Sealing Chicken Bag Making Machine
Related Products
-
Step Motor Driver HB-B3CUS$ 1 - 250MOQ: 1 Set -
Photopolymer or Rubber Resin Flexo Plates Making Machine In A4,A3.A2,A1 (Water Wash or Chemical Wash) for Printing Machine Quality ChoiceUS$ 1 - 2MOQ: 1 Set
-
Six Colors Flexography Printing MachineUS$ 1 - 1,111MOQ: 1 Set
-
LDPE Zip Lock Bag Making Machine For Medicine Quality ChoiceUS$ 1 - 111MOQ: 1 Set
-
Fully Automatic Rewinding Garbage Bag Making MachineNegotiableMOQ: 1 Set
Usage:

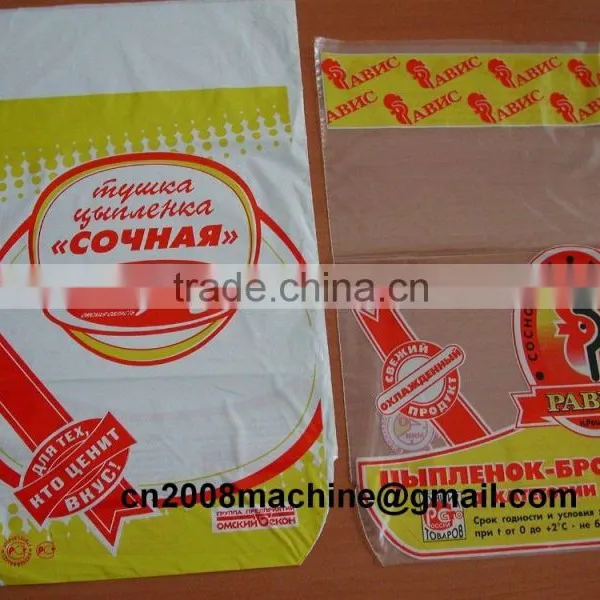

1. The machine can make PE (LDPE) arc-shaped bags for packing food and PVC heat shrinkable bags for packing other easily broken goods.
2. Adopt stepper motor, matched with the simple operation of micro-computer and the number controller with the numerical key, able to change various length of trans formation, economical manpower material resources.
3. The hair side waste can be sliced automatically. The finished product completes only in ones, insuring the stable quality, boosting the competitiveness.
4. The white bag can be worked in double line. It is equipped with the device which can collect and send the final products in piles.
5. The signed photoelectric eye can track bag printing quality.
Specification:
Model |
PVC PE-400 |
PVC PE-500 |
PVC PE-600 |
PVC PE-700 |
Max Width |
50-350mm |
50-450mm |
50-550mm |
50-650mm |
Max Length |
100-450mm |
100-450mm |
100-650mm |
100-700mm |
Error in Length |
0.5-1mm |
0.5-1mm |
0.5-1mm |
0.5-1mm |
Speed per Minute |
15-120pcs/min |
15-120pcs/min |
15-120pcs/min |
15-120pcs/min |
Width of Silica gel Board |
100*350mm |
100*450mm |
100*550mm |
100*650mm |
Total Power |
2.5kw |
2.5kw |
3kw |
3.2kw |
Weight of Machine |
700kg |
800kg |
900kg |
1000kg |
Overall Dimensions |
3300X850X1300mm |
3300X950X1300mm |
3300X1050X1300mm |
3300X1150X1300mm |
