MC-530 HIGH SPEED FULL AUTOMATIC PAPER DRINKING STRAW MAKING MACHINE 100PCS PER MINUTE
USE:

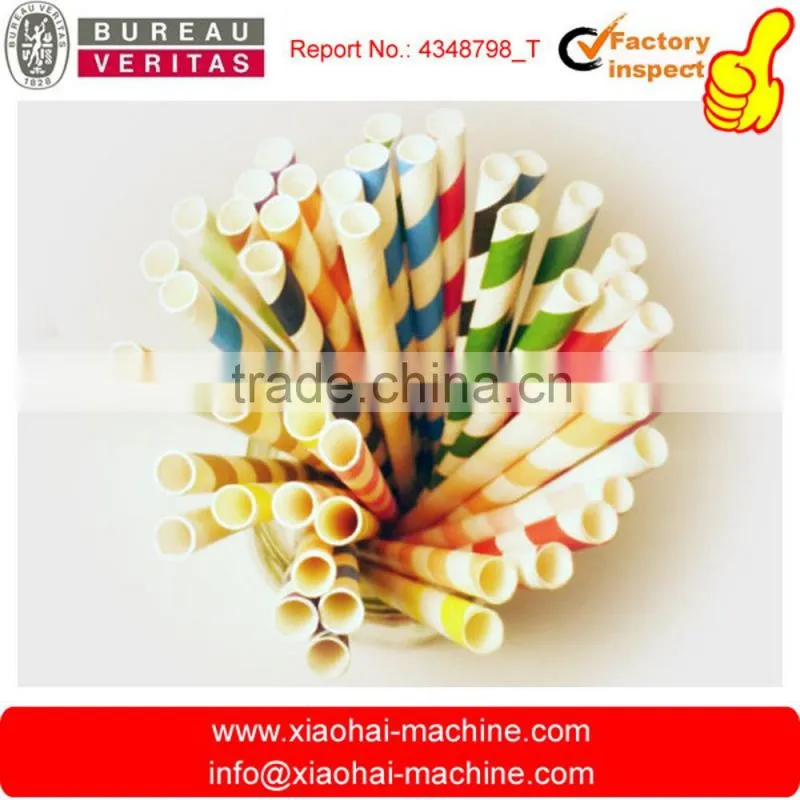

Suitable for small diameter (5-30 mm) paper tube production, such as paper straw, pen tube
FEATURE:
Numerical control servo cutter device, high precision cutting;
Automatically cut, automatically fall pipe, automatically change speed and revert;
Computer PLC control, touch screen man-machine interface operation;
Round knife cutting, incision more smooth, performance more stable;
Stainless steel gluing box, with polyurethane scraper and high carbon steel plastic knife, durable in use;
With online multi-cut blades, no need secondary cutting, save labor and time.
Paper tube diameter 5 mm, stable production 20 m/min, diameter 10 mm, stable production 30 m/min, it fill the blank of the industry and to be the world’s first.
Technical Parameter |
Control system |
|||
Number of roller |
1-5 layer |
PLC controller |
Delta DVP28SV |
|
Tube diameter |
5-30 mm |
Touch screen |
MCGS TPC7062 |
|
Tube wall-thickness |
0.5-2 mm |
Transducer |
YASKAWA 4.0 KW |
|
Core mould fixed way |
Flank chuck |
Electric part |
Schneider |
|
Winding head |
2 |
Single part |
Omron |
|
Cutting way |
Round knife |
Pneumatic part |
AIRTAC |
|
Gluing way |
Single / double sides |
Fix length way |
Optoelectronic switch/encode |
|
Operator |
1-2 person |
Equip device |
||
Winding speed |
3-60 m/min |
Paper shelf type |
Integral reel stand |
|
Speed control |
Transducer |
Auto fall tube shelf |
Have |
|
Driving system |
Glue shelf |
Have |
||
Main motor |
4 KW |
Belts |
2 |
|
Reducer type |
WPO120 JIACHENG |
Core mould |
2 |
|
Cutting motor |
Stepper motor |
Cut left-right control |
Z lead screw+ servo motor |
|
Glue pump |
1.5 KW |
|
||
Mainframe size & Weight | ||||
Mainframe size |
4000*1600*1450 mm |
Weight |
2000 KG |
|
Area space |
8000*6000 mm |
|||
The machine includes the following parts:
Paper reel stand and glue system
