Specifications
Wood Crusher1.CE, ISO certification
2.Manufacturer
3.Factory
4.payment of terms: TT

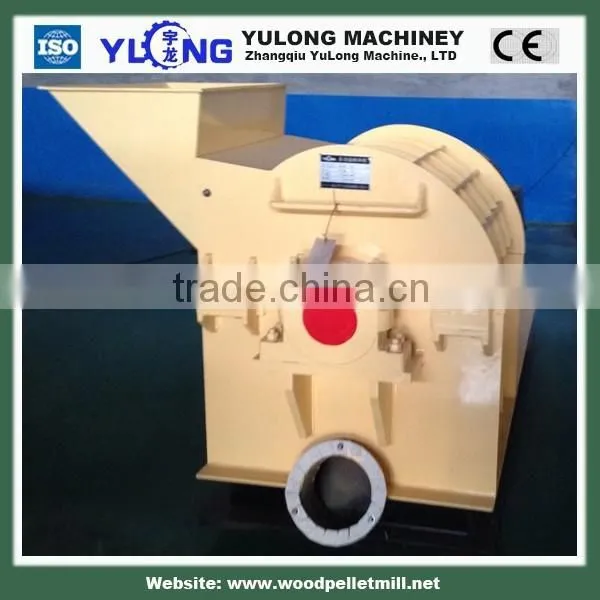

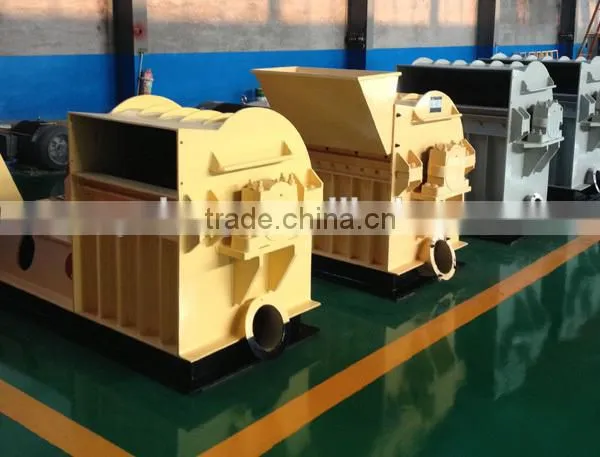

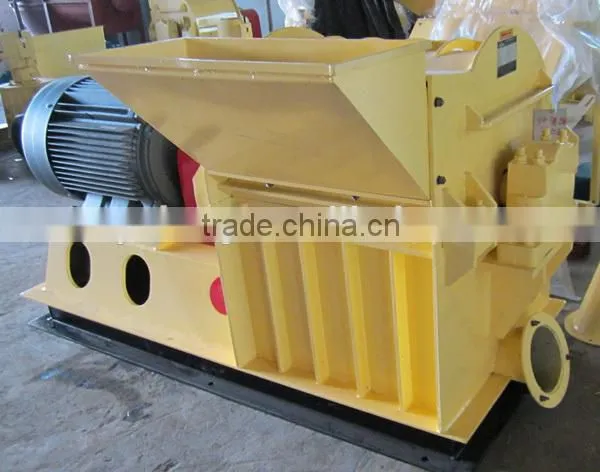

SG Yulong Wood Crusher Machine China explain
1. SG Yulong Wood Crusher Machine China chamber is of tear circle shape, effectively eliminating the circular flow in the grinding process and getting higher capacity;
2. The bottom of SG Yulong Wood Crusher Machine China grindering chamber is fitted with U-shape double grinding structure, further improving the capacity with evener particle size;
3. All of our rotors pass an accurate dynamic balancing test, resulting in low noise and smooth running.
4. Both coarse and fine grinding can be completed by adjusting the distance between the beater and the screen;
5. New type S-shape coupling directly connecting driving results in big offset travel and effectively avoid the heat from the bearing;
6. Beater blade edge is vacuum-welded by special alloy steel, resulting in long service life;
7. The imported components are used for key parts, resulting in long service life and low maintenance cost;
8. The moving full-wide operation door facilitates maintenance and replacing of beater;
9. It is widely used in various feed mills, oil plants, alcohol plants, citric acid plants, etc.
The SG Yulong Wood Crusher Machine China technology Parameter
Model |
SG40 |
SG50 |
SG65*27 |
SG65*55 |
SG65*75 |
SG65*100 |
Power |
7.5 kw |
15 kw |
22 kw |
37 kw |
55 kw |
90 kw |
Capacity(kg) |
500kg |
800kg |
1500kg |
2000kg |
3000kg |
4000kg |
Rotor width |
205 mm |
275 mm |
275 mm |
550 mm |
750 mm |
1000 mm |
Rotor speed (r/min) |
3400 |
3100 |
2950 |
2950 |
2950 |
1490 |
Screen Size (mm) |
675*200 |
750*270 |
940*270 |
540*1020 |
750*1020 |
1020*1000 |
Linear Velocity (m/s) |
71 |
81 |
92 |
100 |
100 |
101 |
Quantity of hammer |
12 |
16 |
24 |
48 |
72 |
90 |
Overall size(cm) |
131*80*107 |
138*80*101 |
150*100*110 |
170*100*110 |
210*100*110 |
240*100*110 |
Weight |
270kg |
450 kg |
1100 kg |
1500 kg |
1900 kg |
2300 kg |
Fan Power |
include |
include |
4kw |
5.5 kw |
11 kw |
15 kw |
The SG Wood Crusher Machine China and the operation specification(SG)
