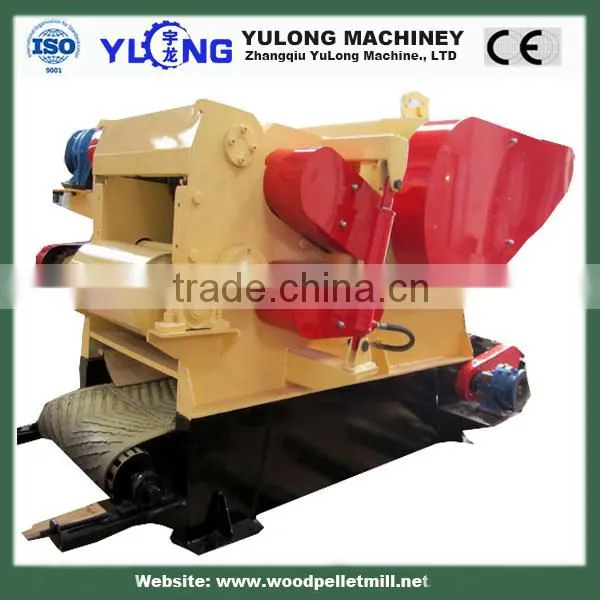

Help CenterDrum Wood Timber Chipper (23cm Logs)
Related Products
-
Automatic Log SplitterUS$ 800 - 250,000MOQ: 1 Set -
Wood Chipping Machine CEqualityUS$ 1,100 - 25,000MOQ: 1 Set
-
5T/H Wood Chipping Making Machine From YULONG FactoryUS$ 13,000 - 660,000MOQ: 1 Set
-
GX218 Wood Shredder Chipper for SaleUS$ 13,000 - 660,000MOQ: 1 Set
-
Large Capacity Drum Wood Chipper for the BoilerUS$ 13,000 - 160,000MOQ: 1 Set
Specifications
1.drum wood timber chipper 5-8t/h2.cruch big logs into small chip:2-5cm
3.CE,ISO9001
4.feed door:230*500mm
5.55+3+1.5kw
We produce biomass pellet making line machines, such as wood logs debarking machine, wood logs
splitter, wood sawdust making machine ,wood chipper, hammer mill, grass/straw cutter , straw bale
crusher ,pellet machine and briquette machine, dryer and cooler, screener, mixer , biomass pellet
boiler ,pellet packing machine and all conveyors e. c. t. for wood chipper, we have two types , one is
drum wood chipper, the other is disc wood chipper, for drum wood timber chipper details, as below :
1.drum wood timber chipper is mainly used to crush big wood logs or wood timber, plywood,
wood branches, furniture waste into small chips , the thickness of last chips is 1.5mm-3mm, length and width is about 20-50mm, it is wood chips not wood shavings. by adjusting knives gap ,outlet chips dimension will be
adjusted.
2.drum wood timber chipper contains 4m long feeding belt conveyor, when conveying logs, the speed
can be adjusted .also it can connect with outlet conveyor to transport away crushed wood chips. the
wood chipper can work on the ground-- outlet conveyor at the chipper bottom, then will no need to make foundation. Also can install outlet
conveyor at the behind of wood chipper , then just need to do foundation under the ground .
3.drum wood timber chipper knives can be renewer by knives grinder,which can grind knives newer
after certain time, no need to change knives often. The full unite contains 4m length feeding conveyor
,outlet conveyor, knives grinder, electrical control cabinet e.c .t
4.drum wood timber chipper has limit feeding door dimension ,for example GX216
feed door size is 230*500mm, means raw wood logs cross section area should be smaller than
23*50cm , but length no limit.
5.drum wood timber chipper is hot selling more than 12000sets per year , greatly welcome to ask me
for details, have big discount if order large quantity.
Model |
Gx215 |
Gx216 |
Gx218 |
GX2113 |
Rotate knives(pcs) |
2 |
2 |
2 |
2 |
Feeder size(mm) |
160*400 |
230*500 |
300*680 |
380*800 |
Power(kw) |
45+3+1.5 |
55+3+1.5 |
110+5.5+1.5 |
220+7.5*2+1.5 |
Capacity(t/h) |
3-5 |
5-8 |
8-15 |
15-20 |
Chip size(mm) |
20-50 |
|||
Work hard and make progress everyday
Contact person: Litearn Liu
M.P:86-18678866207
Tel: 86 531 83483996
fax:86-531-83483378
QQ:653753289
Send Inquiry to This Supplier
