Printed Brown Kraft Paper shopping bag Paper Bag Machine
1. Features:
Paper Bag Making machine can produce the square bottom paper bag in conjunction with overseas
advanced technology. The machine has many advantages such as high speed,high productive
efficiency and wide-rang adjustment.
It is an ideal machine for producing Square Bottom Shopping bags to pack gifts, cosmetic, etc.
2. Advantages:
1)Suited for 60-180gsm roll sheet paper.
2)Controls bag length through the human-machine interface.
3)PLC system for calculating parameters.
4)Equipped with an accurate photocell system.
5) Color mark error automatic alarming and stopping system
6)Automatic oil lubrication system and Automatic counting system
3.Technical Parameters:
Paper Weight |
60-180g/m2 |
Tube Length |
230-580mm |
|
Bag Length
|
155-505mm |
Bag Width |
220--460mm |
Bottom Width |
60-180mm |
Max Production Speed |
180pcs/min |
Total Power |
15KW |
Power Voltage |
380V,50/60HZ |
Machine Dimension(L*W*H) |
8600*3000*1800mm |
Total weight |
10000KG |

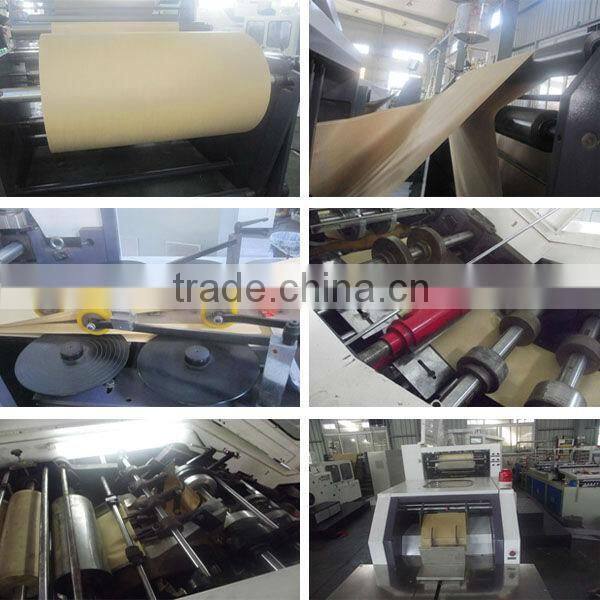

4.Machine Pictures:

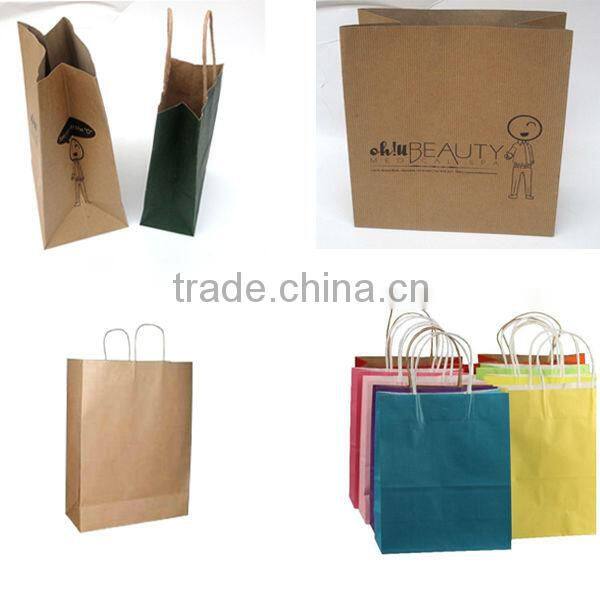

5. Sample Pictures:

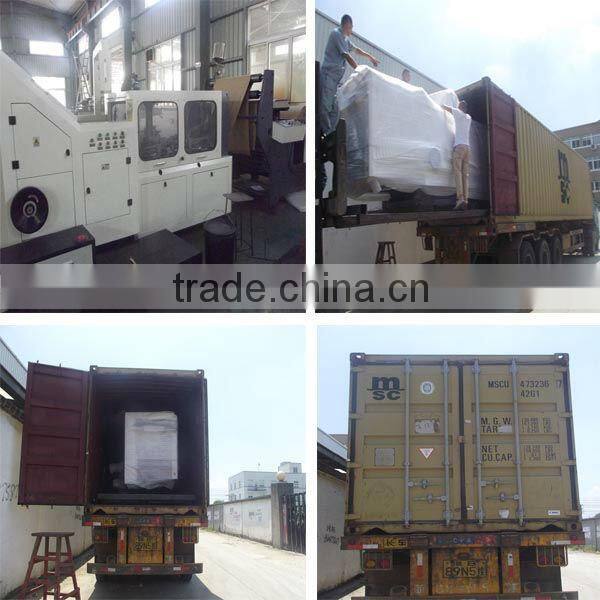

6. Machine Package Pictures:
Customer Bought This Machine,Also Have Interesting To Buy Following Machines:
- CY-180 SOS paper bag making machine
- Bread paper bag making machine with pp window
- Food paper bag making machine with printing unit
- shopping paper bag making machine
- shopping paper bag making machine with handle inline
- 4 Colors Flexo Printing Machine
- 2 Colors Flexo Printing Machine
- 6 Colors Flexo Printing Machine
- High Speed 150meter Wide Web Flexo Printing Machine
- 50meter per minute type flexo printing machine
- Flexo Plate Making Machine For Printing Machine
- Flexo Cylinder Plate Mounter Machine
- Ultrasonic Ceramic Anilox Roller Washing Machine
We are specializing in making paper bag making production line, including paper bag making
machine, flexo printing machine, rope making machine and handling making machine etc.
We have both paper bag making machine with roll feeder and sheet feeder.
1. Factory Show:
2. Advantages&Service
1)We have several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.
2)Machines with good quality in one year, life-long maintenance.
3)We have many machines can be monitored via the Internet, solve customer requirements in a timely manner.
4)We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.
5)Undertake various non-standard machinery, solve the customers' requirements.
