A300 Real Manufacturer Vehicle GPS Tracker GPS Car Tracker

Name: A300 Real Manufacturer Vehicle GPS Tracker GPS Car Tracker
Brand: Dingtek
Availability: InStock

FOB Price

US$ 78 - 85 / Piece

20 Pieces(Min. Order)

Port Beijing
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Gps Tracker	Use	Automotive
Screen Size	Other, No screen	Function	Other, Multifunction optional
Place of Origin	Beijing, China	Brand Name	Dingtek
Model Number	A300	Warranty	1 Years

Product Description

A300 Real Manufacturer Vehicle GPS Tracker GPS Car Tracker

Overview

The GPS Tracker A300 can connect with RS232 digital level sensor to detect fuel level in tank as well as camera to make photo. Also, it can work with cement drum sensor to realize cement drum rotation detection. Furthermore, it can stop fuel pump or starter to stop the vehicle. Of course, you should connect the tracker into the fuel pump line or starter line with relay while installation.

The tracker can real time monitoring and query historic data by our platform.

Specification

Dimension	766645mm
GPS	UBlox
Weight	200g
GSM/GPRS	EM310
Current	80MA@12VDC
Voltage	9-32VDC
Backup Battery	Yes, 2 hours
ACC Detection	Yes
SOS	Yes
Fuel pump stop/starter stop	Yes
RS232	1, for camera , level sensor, TTS or LCD, temperature sensor
Working temperature	-30~+75℃

System Diagram

Interface Definition

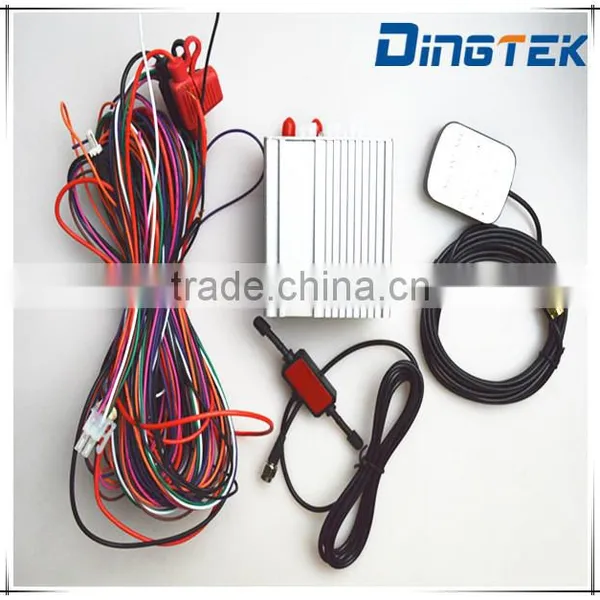

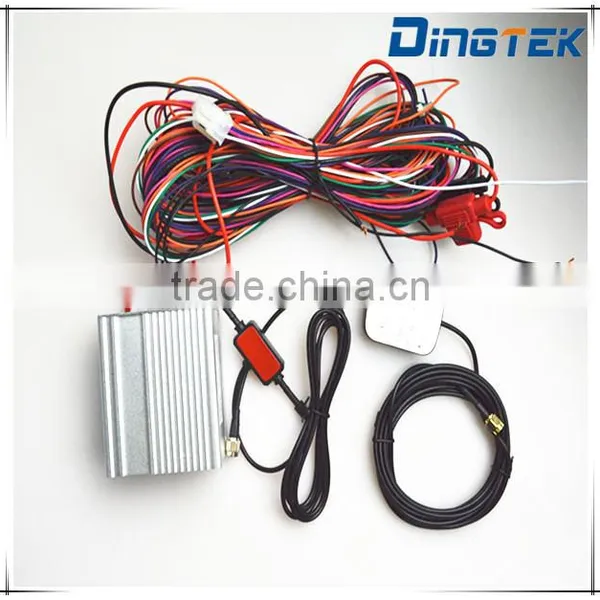

Part List

Part List
NO.	Item	Quantity	Remark
1	GPS Tracker Body	1	Silver
2	GPS Tracker SIM Card Cover	1	Usually already screwed with the body
3	Screw	4	Usually already screwed with the body
4	Power Cable	1	3 pin
5	GPS Antenna	1
6	GSM/GPRS Antenna	1
7	Double side stick	1
8 *	Relay	1	Optional
9*	4 pin connector	1	Optional for RS232 connection

Installation

Before installation, please check the part list. Make sure that you already have the total package of our tracker and one sim card which is enabled with GPRS data and sms.

Notes:The sms function is used to debug while tracker failed to be online, such as set the apn/user name/password.

Find Position to Install

Before installation, please check the vehicle to find the appropriate position to install the gps tracker body. Usually the tracker should be install under the dashboard which is hide to the driver or passenger. But make sure that the gps antenna should not be masked by metal and the side with label is facing to ground, otherwise gps will not be fixed.

The fuse box is one option for power to the gps tracker. But make sure that the inserting of gps tracker does not change the behavior of the fuse box. Please make sure the gps tracker power supply do not interfere with the security and safety system.

Insert SIM Card

Before insert or remove sim card, please make sure power off

1. Open the cover.

2. Unlock sim card slot.

3. Insert sim card. (The SIM card should be enabled with GSM/GPRS business.)

4. Lock sim card slot.

5. Restore the cover.

Wire Connection

Connect GPS antenna.

Connect GSM antenna.

Connect power line with GPS tracker.

Connect power line with battery or other power supply (12V or 24VDC).

Red wire: pin 1, +VCC (12/24VDC)

Black Thick wire: pin 6, GND

Black Thin wire: pin 2, vehicle ACC line.

(for test purpose or vehicle which is not easy to connect with ACC, please connect white wire to +VCC)

Check LED Status

After power on, please wait for about 1 mintue later, then watch the led status.

If red led slow flash, please send sms message to set ip, port ,apn.

If yellow led slow flash, please put gps antenna to opensky.

If any led always on or off, please power off and check sim card and antenna. If still same problem, please contact us for maintainance.

LED	Function	Status
LED	Function	always off	always on	slow flash (1s on, 3s off)	quick flash (1s on, 1s off)
Red	GSM/GPRS	Failure	Failure	GSM ok, GPRS fail	GSM ok, GPRS ok
Yellow	GPS	Failure	Failure	GPS not fixed	GPS fixed

SMS Configuration

Only if red led slow flash, sms configuration can be helpful.

Please make sure sim card is enabled with sms and gprs business.

Below format is the standard SMS to configure server, port, apn, tracker id and etc

Wire Routing and Restore

After installation, please restore the vehicle cover, use stick to fix the gps tracker with vehicle. And make sure that the gps antenna side with label is facing to ground. And the gps antenna is not masked by metal. Plastic or glass does not matter.

If you can monitor it on the tracker platform, then the installation is done.

GPS Platform

Usually the user account and password is send to you while we send out the package. If not, please contact with our sales agent or engineer about this info.

Fuel Info Configuration

If fuel level sensor is connected, the user should create the table between the fuel level and analog of tracker get, such as 0v--0liter, 1v---20 liter, 3v-50 liter.

Then input into the gps platform, after that the platform will show the fuel info.

package

Company Pictures

Company Profile

Dingtek Technology Group locates in china and has three branches in Beijing,Qingdao,and Hongkong.It has independent R&D center,production center and 24 hour quick response service network.

Since 2006,Dingtek has been focused on embedded system development,automation research and application.Our main business covers sensors design and manufacturing,embedded system design and development,complicated system integration and etc.the application covers automation,automotive,locomotive,new energy.

Besides the standard products,we also offer ODM/OEM for customers’ special requirement.Not only software design,but also hardware design.we provide not only products,but also satisfactory service!

Accessories

We warrants this quality product to be free of defects in material and workmanship for a period of 12 months from the date of purchase. During the period, we will repair or replace the product at no charge for parts or labor. But the shipment fee will be shared by the buyer (one party 50%).

The time period of this warranty starts from the date of the original purchase and expires on the first anniversary date of purchase.

No express or implied warranty is made for any defects in this product which result from accident, abuse, misuse, failure to operate the product in accordance with relevant instructions, neglect, immersion in or exposure to chemicals or liquids, extremes of climate, fungus, excessive wear and tear/cosmetic damage and defects resulting from other extraneous causes such as unauthorized disassembling, repair or notification.

This warranty shall not extend to any incidental or consequential damages arising from the purchase, use or inability to use this product .

The laws of some countries and some States thereof do not allow the limitation of incidental or consequential damages, so the above limitation or exclusion may apply to you.
