The GPS Tracker A300 can connect with RS232 digital level sensor to detect fuel level in tank as well as camera to make photo. Also, it can work with cement drum sensor to realize cement drum rotation detection. Furthermore, it can stop fuel pump or starter to stop the vehicle. Of course, you should connect the tracker into the fuel pump line or starter line with relay while installation.
The tracker can real time monitoring and query historic data by our platform.
Dimension |
76*66*45mm |
GPS |
UBlox |
Weight |
200g |
GSM/GPRS |
EM310 |
Current |
80MA@12VDC |
Voltage |
9-32VDC |
Backup Battery |
Yes, 2 hours |
ACC Detection |
Yes |
SOS |
Yes |
Fuel pump stop/starter stop |
Yes |
RS232 |
1, for camera , level sensor, TTS or LCD, temperature sensor |
Working temperature |
-30~+75℃ |
System Diagram

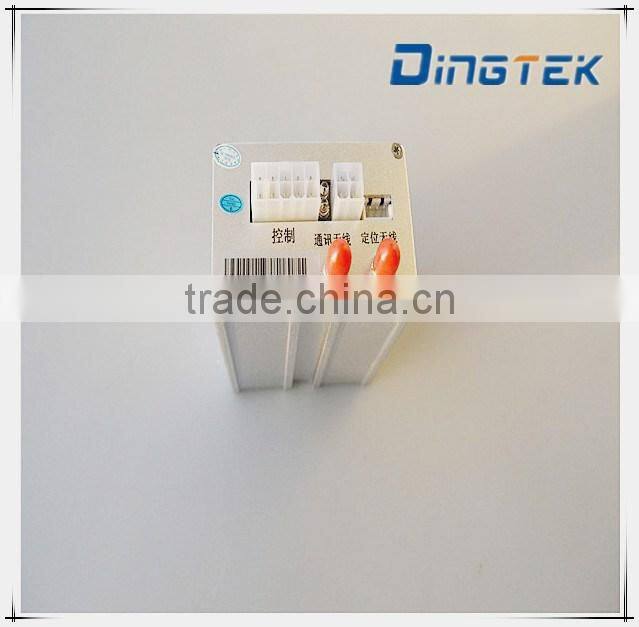

Interface Definition
Pin Definition
Pin 1: Thick Red, VCC (9-36VDC)
Pin 2: Thin Black, ACC
Pin 3: Black Green, Self-defined High level trigger input.
Pin 4: Brown Green, Self-defined Low level trigger input I.
Pin 5: While, Self-defined Low level trigger input II.
Pin 6: Thick Black, GND
Pin 7: Orange, SoS button.
Pin 8: Purple, Oil cut.
Pin 9/10: Reserved.
Pin 1: RX 232
Pin 2: TX 232
Pin 3: GND
Pin 4: 5V output.
Connection with F300 Level Sensor
F300 wire:
Red wire--------VCC
Black wire------GND-----A300 Pin3 of the 4 pin connector GND
Yellow wire RS232 TXD-------A300 Pin1 of the 4 pin connector RS232 RX
Green wire RS232 RXD-------A300 Pin2 of the 4 pin connector RS232 TX
Connection with F330 Level Sensor
F330 wire:
Red wire--------VCC
Black wire------GND-----A300 Pin3 of the 4 pin connector GND
Yellow wire RS232 TXD-------A300 Pin1 of the 4 pin connector RS232 RX
Blue wire RS232 RXD-------A300 Pin2 of the 4 pin connector RS232 TX
Connection with F500 Level Sensor
F500 wire:
Red wire--------VCC
Black wire------GND-----A300 Pin3 of the 4 pin connector GND
Yellow wire RS232 TXD-------A300 Pin1 of the 4 pin connector RS232 RX
Blue wire RS232 RXD-------A300 Pin2 of the 4 pin connector RS232 TX
Connection with F550 Level Sensor
F550 wire:
Red wire--------VCC
Black wire------GND-----A300 Pin3 of the 4 pin connector GND
Blue wire RS232 TXD-------A300 Pin1 of the 4 pin connector RS232 RX
Yellow wire RS232 RXD-------A300 Pin2 of the 4 pin connector RS232 TX
Connection with Fuel Pump/Starter
Relay wire:
Red wire--------VCC
Black wire------GND---------------A300 purple wire pin8 in the 10pin connectors .
Green wire insert into the fuel pump line, one end to power, one end to fuel pump.
Connection with Camera
If user connect the camera from us with our A300 tracker, just connect the 4 pin connectors together.

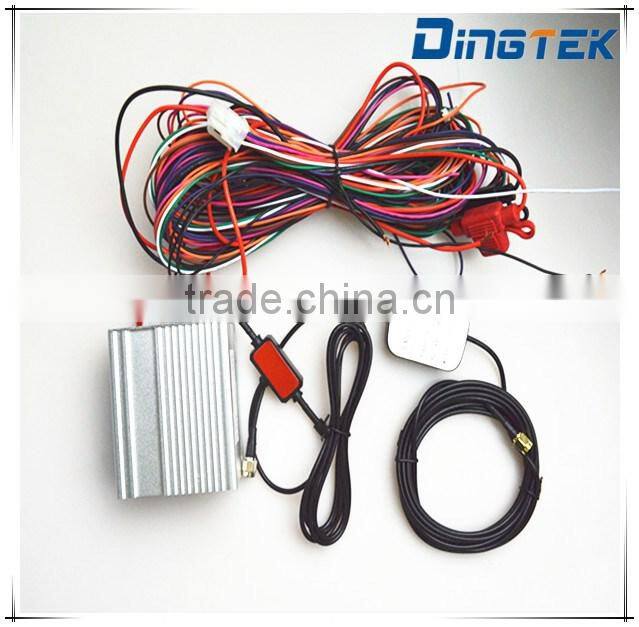

Part List
Part List | |||
NO. |
Item |
Quantity |
Remark |
1 |
GPS Tracker Body |
1 |
Silver |
2 |
GPS Tracker SIM Card Cover |
1 |
Usually already screwed with the body |
3 |
Screw |
4 |
Usually already screwed with the body |
4 |
Power Cable |
1 |
3 pin |
5 |
GPS Antenna |
1 |
|
6 |
GSM/GPRS Antenna |
1 |
|
7 |
Double side stick |
1 |
|
8 * |
Relay |
1 |
Optional |
9* |
4 pin connector |
1 |
Optional for RS232 connection |
Installation
Before installation, please check the part list. Make sure that you already have the total package of our tracker and one sim card which is enabled with GPRS data and sms.
Notes:The sms function is used to debug while tracker failed to be online, such as set the apn/user name/password.
Find Position to Install
Before installation, please check the vehicle to find the appropriate position to install the gps tracker body. Usually the tracker should be install under the dashboard which is hide to the driver or passenger. But make sure that the gps antenna should not be masked by metal and the side with label is facing to ground, otherwise gps will not be fixed.
The fuse box is one option for power to the gps tracker. But make sure that the inserting of gps tracker does not change the behavior of the fuse box. Please make sure the gps tracker power supply do not interfere with the security and safety system.
Insert SIM Card
Before insert or remove sim card, please make sure power off
1. Open the cover.
2. Unlock sim card slot.
3. Insert sim card. (The SIM card should be enabled with GSM/GPRS business.)
4. Lock sim card slot.
5. Restore the cover.

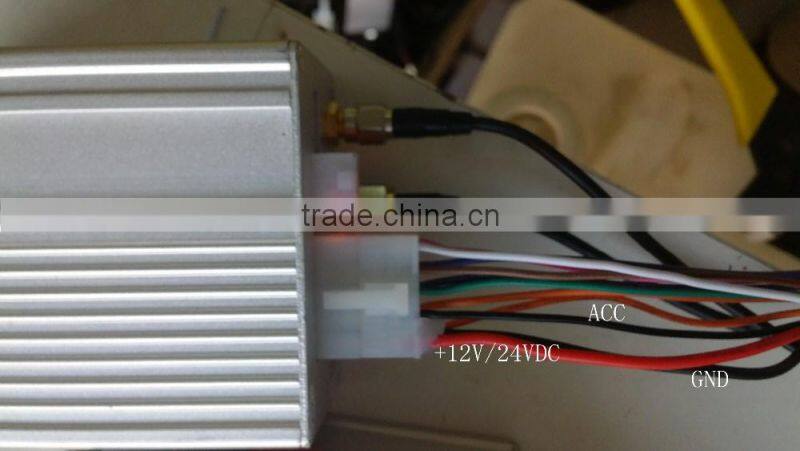

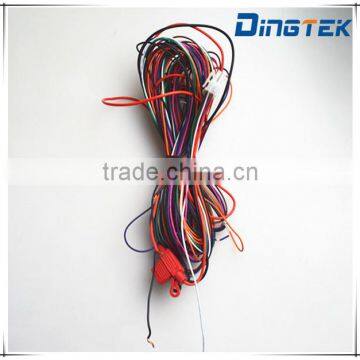

Wire Connection

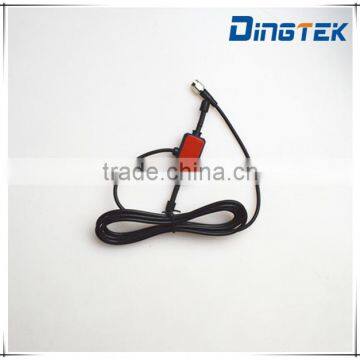

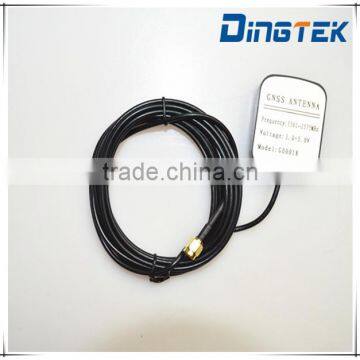

Connect GPS antenna.
Connect GSM antenna.
Connect power line with GPS tracker.
Connect power line with battery or other power supply (12V or 24VDC).
Red wire: pin 1, +VCC (12/24VDC)
Black Thick wire: pin 6, GND
Black Thin wire: pin 2, vehicle ACC line.
(for test purpose or vehicle which is not easy to connect with ACC, please connect white wire to +VCC)

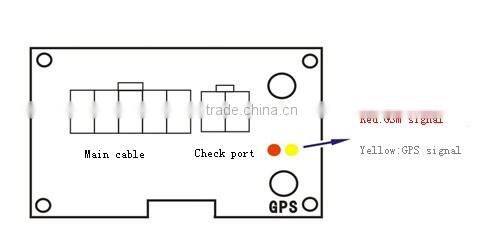

Check LED Status
After power on, please wait for about 1 mintue later, then watch the led status.
If red led slow flash, please send sms message to set ip, port ,apn.
If yellow led slow flash, please put gps antenna to opensky.
If any led always on or off, please power off and check sim card and antenna. If still same problem, please contact us for maintainance.
LED |
Function |
Status |
|||
always off |
always on |
slow flash (1s on, 3s off) |
quick flash (1s on, 1s off) |
||
Red |
GSM/GPRS |
Failure |
Failure |
GSM ok, GPRS fail |
GSM ok, GPRS ok |
Yellow |
GPS |
Failure |
Failure |
GPS not fixed |
GPS fixed |

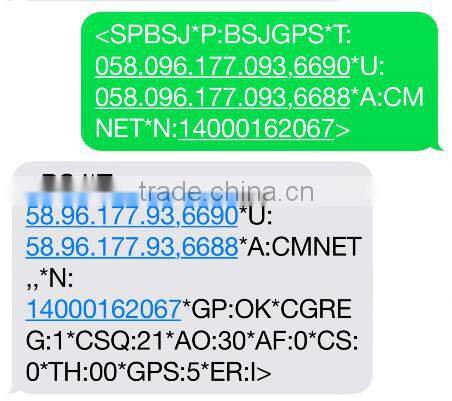

SMS Configuration
Only if red led slow flash, sms configuration can be helpful.
Please make sure sim card is enabled with sms and gprs business.
Below format is the standard SMS to configure server, port, apn, tracker id and etc
Wire Routing and Restore
After installation, please restore the vehicle cover, use stick to fix the gps tracker with vehicle. And make sure that the gps antenna side with label is facing to ground. And the gps antenna is not masked by metal. Plastic or glass does not matter.
If you can monitor it on the tracker platform, then the installation is done.
GPS Platform
Usually the user account and password is send to you while we send out the package. If not, please contact with our sales agent or engineer about this info.
Fuel Info Configuration
If fuel level sensor is connected, the user should create the table between the fuel level and analog of tracker get, such as 0v--0liter, 1v---20 liter, 3v-50 liter.
Then input into the gps platform, after that the platform will show the fuel info.
Dingtek Technology Group locates in china and has three branches in Beijing,Qingdao,and Hongkong.It has independent R&D center,production center and 24 hour quick response service network.
Since 2006,Dingtek has been focused on embedded system development,automation research and application.Our main business covers sensors design and manufacturing,embedded system design and development,complicated system integration and etc.the application covers automation,automotive,locomotive,new energy.
Besides the standard products,we also offer ODM/OEM for customers’ special requirement.Not only software design,but also hardware design.we provide not only products,but also satisfactory service!
We warrants this quality product to be free of defects in material and workmanship for a period of 12 months from the date of purchase. During the period, we will repair or replace the product at no charge for parts or labor. But the shipment fee will be shared by the buyer (one party 50%).
The time period of this warranty starts from the date of the original purchase and expires on the first anniversary date of purchase.
No express or implied warranty is made for any defects in this product which result from accident, abuse, misuse, failure to operate the product in accordance with relevant instructions, neglect, immersion in or exposure to chemicals or liquids, extremes of climate, fungus, excessive wear and tear/cosmetic damage and defects resulting from other extraneous causes such as unauthorized disassembling, repair or notification.
This warranty shall not extend to any incidental or consequential damages arising from the purchase, use or inability to use this product .
The laws of some countries and some States thereof do not allow the limitation of incidental or consequential damages, so the above limitation or exclusion may apply to you.
