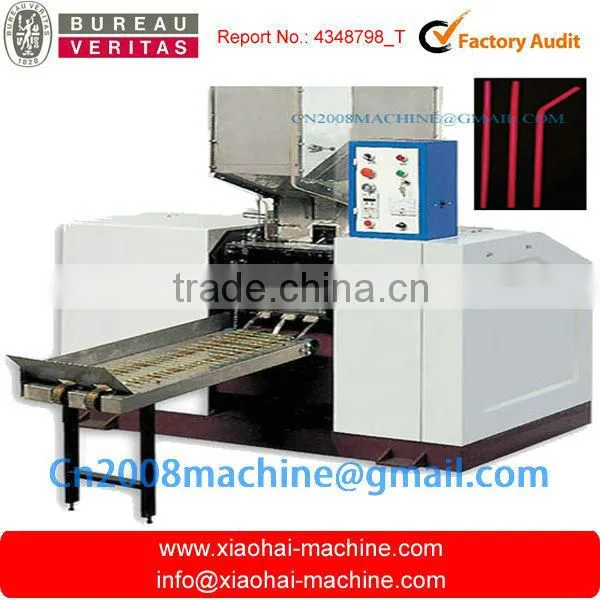

PP U-Shape Drinking Straw Making Machine for Juice

PP U-Shape Drinking Straw Making Machine for Juice thumbnail-1
PP U-Shape Drinking Straw Making Machine for Juice photo-1
US$ 1 - 111 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Plastic Pipe
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Wenzhou Xiaohai I/E Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Plastic Pipe
Place of Origin Zhejiang, China
Brand Name XH
Model Number WG
Voltage 220v
Power(W) 1.5kw
Dimension(L*W*H) 1500x1800x1600mm
Weight 800kg
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. FLEXIBLE drinking straw forming machine To make flexi end for the drinking straw
2. full automatic

FLEXIBLE drinking straw forming machine



PP U-Shape Drinking straw making machine for juice



Usage:
1.The machine is to make the straight straw to be flexible.

2.The entire operation, from product in-feed and forming to finished product out-feed, is automatically performed requiring the operator to add the material only.The straight straws supplied in the hopper at the top of machine, are fed one by one into the main drum of the machine and clamped by two mechanical catches. As the main drum rotates, the straw passes through two rotary dies to receive die-pressed effect, is then compressed with two catches to form flexible. And delivered to the output conveyor automatically.The main drum always carrying 12 straws in successive different operations. This development represents a giant step forword for higher production of flexible straws.

3.Highlight:
High efficiency and high production rate.
Automatic product counting.
Product quantity pre-set. Once the pre-set figue is reached, the machine will stop and an alarm will sound, allowing added convenience for quantity packing into bags.
Automatic machine stop in the event of straw jamming.


Specification:



Model No.
WG-38 WG-48 WG-58
Processing speed 200-300 pcs/min
Main motor 1.5kw (inverter)
Specifications of Straw Diameter 3.8mm 4.8mm 5.8mm
Length of straight straw 165-245mm 200-260mm 200-260mm
Length of flexible straw 150-230mm 185-245mm 185-245mm
Thickness of straw 0.2±0.02mm 0.15±0.02mm 0.15±0.02mm
Top section length 30-50mm
Length of flexible part 8-11mm
Machine dimension 1500×1800×1600mm
Machine weight 1000kg





Remark:

We also can make the machine according to your specifications.
