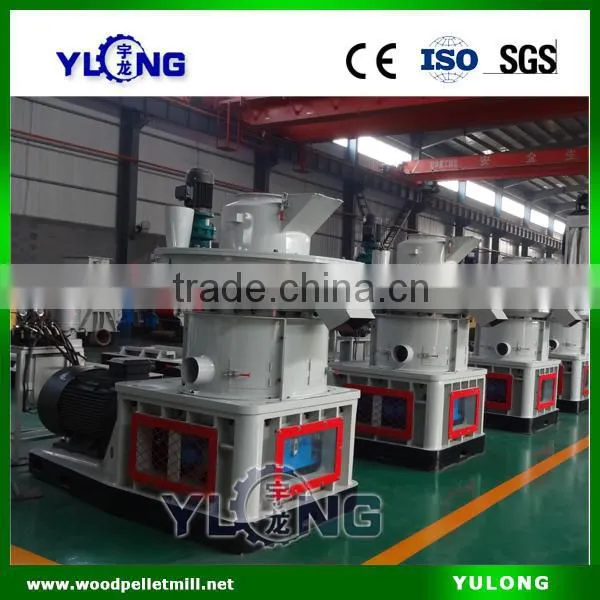

XGJ560 wood pellet press machine for sale
We are professional manufacturer of wood pellet press machine more than 18 years history, have got ISO, SGS certificate, all machines got CE certificate, and with many customer and sales agent in different countries, such as in Spain, Poland, Italy, Greece, Bulgaria, Romania, Russia…

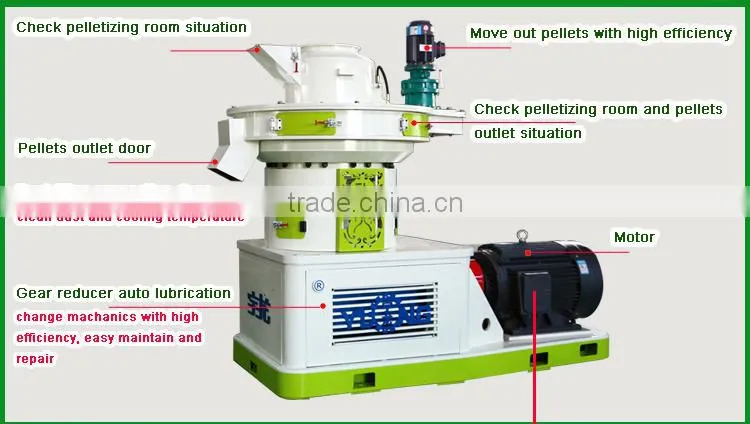

YULONG brand XGJ560 wood pellet press machine advantage:

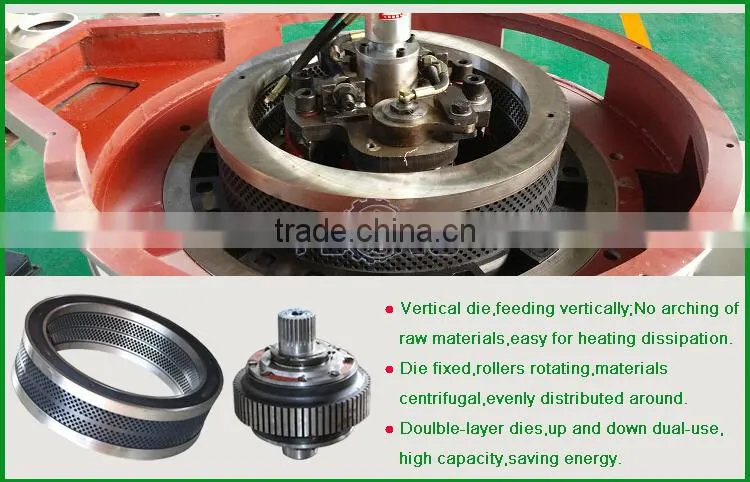

-Vertical ring die wood pellet press machine for wood sawdust , feeding vertically, the raw materials can follow to the pelleting room directly.
-Vertical ring die structure, easy for heating dissipation, which can keep the machine running continually.
-Ring die fixed, main axis vertically, main shaft and roller rotating , the roller only can rotating inside of the ring die, so no deflection, no shaking, machine running more stably.
-Vertical ring die fixed, roller rotating, with centrifugal force, making the materials evenly distributed around inside the die, also the centrifugal force will help improve the capacity.
-Double-layer stainless steel ring die, up and down side. One ring die can be using 2 times by turn it over. Cut down operating costs.
- Wood pellet press machine video on youtube for reference: http://youtu.be/J_94OnMHErU
Model |
Main power(KW) |
Capacity(TON/H) |
Weight(TON) |
Dimension(MM) |
XGJ560 |
90 |
1-1.5 |
6.1 |
2600*1300*2300 |
XGJ720 |
160 |
1.5-2.5 |
9.5 |
2900*1300*2400 |
XGJ850 |
220 |
2.5-3 |
14.5 |
3300*1400*3100 |
XGJ920 |
315 |
3-4 |
18 |
3800*1680*3400 |
XGJ1050 |
450 |
5-6 |
23 |
3980*2060*3450 |
Product name |
Hot sale wood sawdust straw pellet mill |
Manufacturer |
Zhangqiu YULONG Machine Co., Ltd |
Model No. |
XGJ560 |
Capacity |
1000-1500KG/H |
Mainly motor |

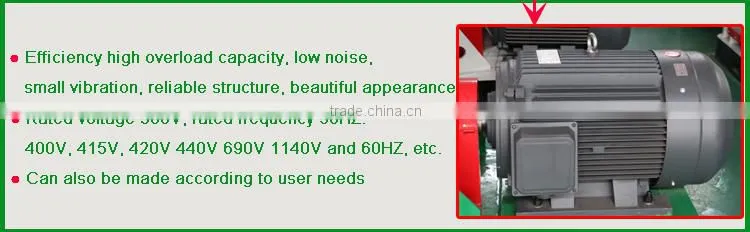

90 KW |

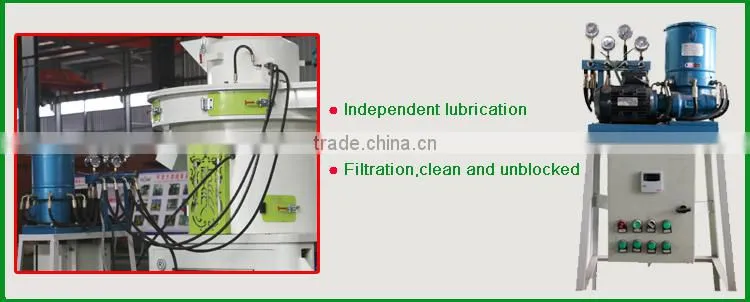

Lubrication pump motor |
0.37KW |
Cutter motor |
1.5KW |
Cooling motor |
1.5KW |
Type |
Vertical ring die |
Dimension of machine |
2600x1300x2300mm |
Weight of machine |
6100KG |

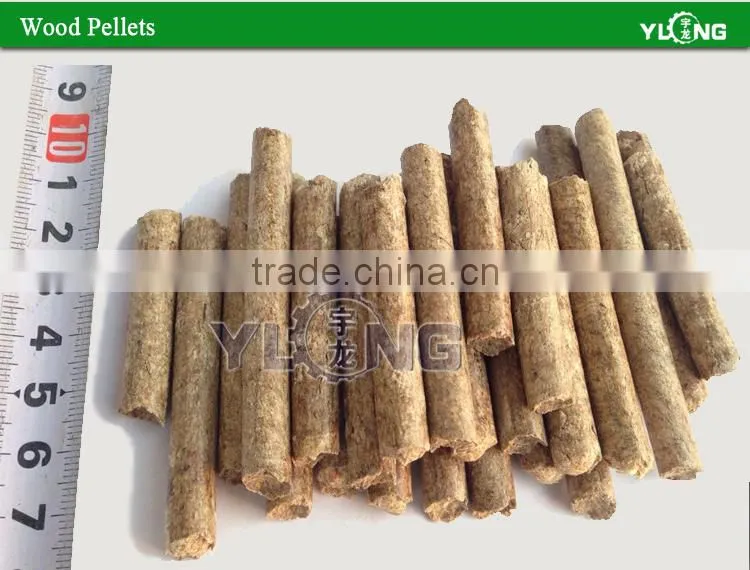

Output pellets diameter |
4mm, 6mm, 8mm, 10mm |
Length of pellets |
1-10cm |
Pellets density |
1.0-1.4g/cm3 |
Suitable materials |
Wood, Sawdust, Rice husk, EFB, Palm fiber, Sunflower husk, Stalk, Grass…. |

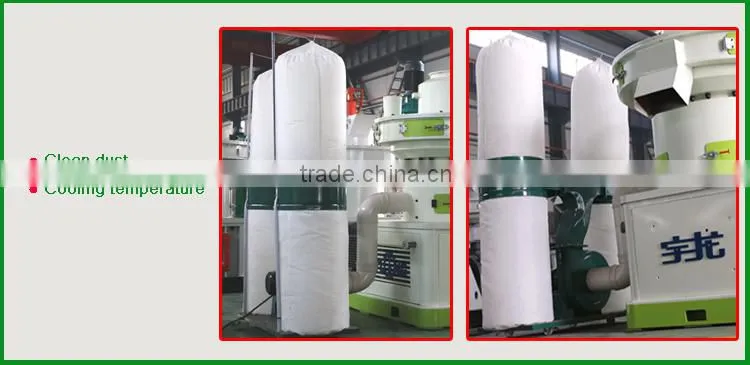

Bug dust filter |
Yes |
Electrical control cabinet |
Yes |
-We specialize in pellet machine manufacture,which are superior quality with competitive price.Technology research and development for 18 years, CE and ISO9001 are certificated;
-We have branch office in Malaysia, have sales agent in Thailand, Spain, Poland, Russia, Bulgaria..., can supply best quality service.
-After-sales service team
-Independent R & D team
-Quality control system
-Customized service, provide personalized solutions for you
1. Q: General questions to design the production line for you?
A: What is your raw materials? (to confirm mould pressure ratio of machines )
B. What is the moisture content of your raw material?
C. How many output capacity do you want per hour / month/ year?
Note: If the moisture is high, you need a dryer, becuase the suitable moisture content to enter pellet machine is 13-15%. And please provide us above detailed information, then we would design the most suitable production line with reasonble offers.
2. Q: How long is your guarantee?
A: 12 months warranty but except quick waering parts.
3. Q: Will you send engineers to install the machines?
A: Of course. Our company has professional installation engineers team and specialized after-sale service team. When the machines arrive your factory, we will send our installation engineers to your factory Our engineers will Guide you to install the machines and training your workers how to operate the machines and maintain the machine.
4. Q: Voltage requirement ?
A: Our machines can use 380V, 220V, 240V, 415V, 480V, and 50Hz, 60Hz.
