Sick of the inconvenience of the so called "Portable Solar Power System" which currently dominates the market?

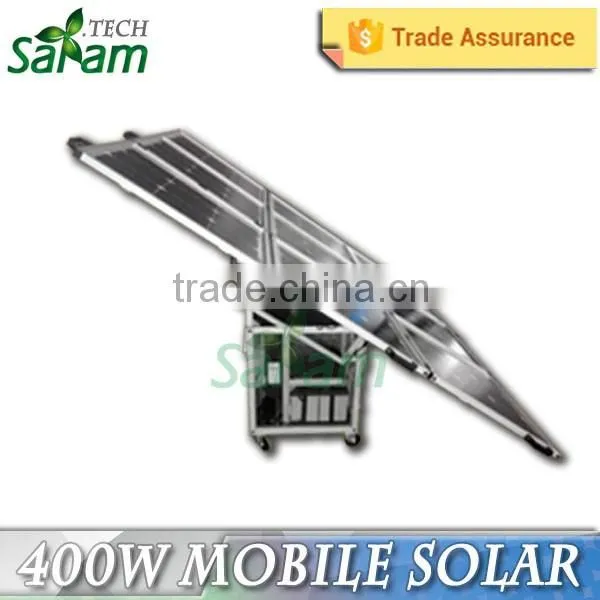

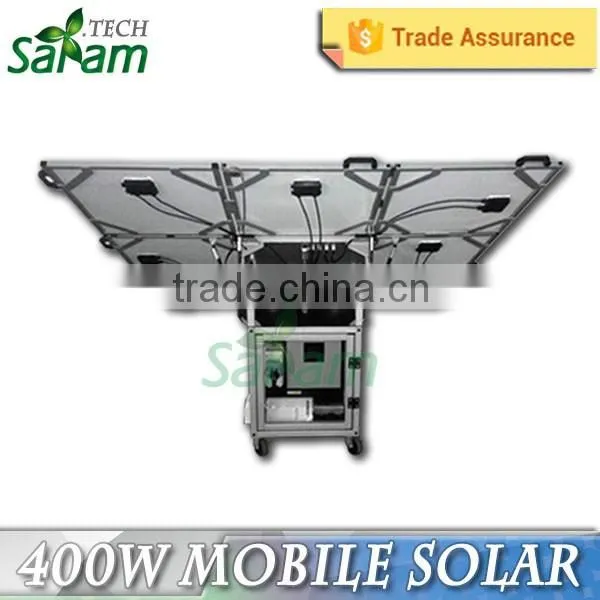

Now, SAIAM has made it a history. With the advancing design concept, we've brought solar power system into a new era. Emerging all the possibilities to make the product realistically portable, we present to the world the brand-new portable PV electric generator - SAIAM POWER M-Cube.
Ever imagined using a portable PV electric generator to power your demands like using a mobile charger to power your mobile phone? With SAIAM M-Cube, now your "Plug and Play" imagination has come true. This magical box needs no trivial installating, configurating, once you buy it, you use it.
Featuring Mobility and Foldability SAIAM M-Cube satisfies you with its convenience of "ALL-IN-ONE". All you need to do is to move the portable PV electric generator to an ideal place, fix the trundles, unfold the panels, plug it, then press the button and enjoy!
What occasions does the M-Cube fit?
.Camping
.Marine power supply
.Army traning
.Outdoor construction
.Mobile communication
...

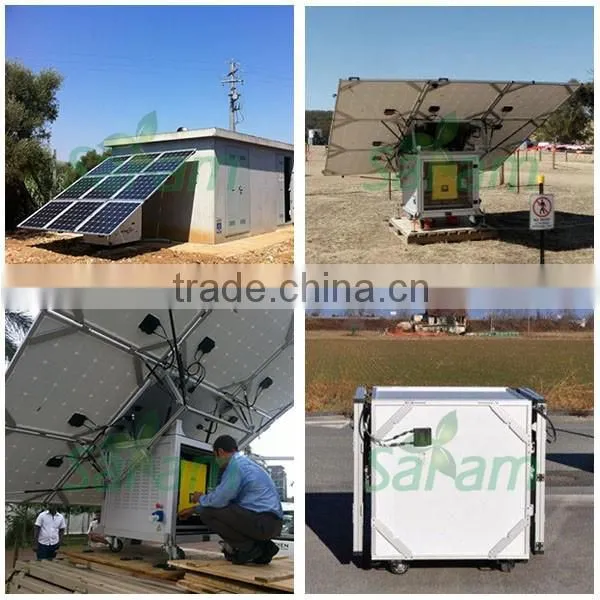

Actually, by far, we've supported many projects of many clients' with this portable PV electric generator.
Tech Specification
| S50 Portable PV Electric Generator | |
| PV Power (Poly) | 360W |
| Inverter Power | 800W |
| Battery | 2pcs 12V 110Ah |
| Battery Capacity | 2640W (24V 110Ah) |
| Dimension Closed | 70*70*70H cm |
| Dimension Opened | 141*165*120H cm |
| Weight | 120kg |
| Optional Tweaks |
1.6KW inverter DC output 5V 12 V 24V 48V AC output 110V 60Hz Remote monitor control |
| Battery Duration | |
| In the total absence of sunlight, how many working hours are remaining? This chart gives a clear indication. | |
| Power | Time |
| 100W | 30.9h |
| 500W | 4.3h |
| 800W | 2.4h |
| 1000W | 2.5h |
| 1500W | 1.5h |
| 2000W | 1h |
| Daily Production | |||||
| S50 | Los Angeles | Capetown | Dubai | Sydney | |
| January | 0.91 | 2.5 | 1.24 | 1.82 | |
| April | 2.05 | 1.32 | 2 | 1.1 | |
| July | 2.32 | 0.87 | 2.03 | 0.83 | |
| October | 1.37 | 1.98 | 1.71 | 1.7 | |
| Average anual | 1.66 | 1.66 | 1.76 | 1.36 | |
| S50 Solar Panel 40W | |
| Solar module type | SPM-40 |
| Power tolerance | ±3% |
| Max power | 40W |
| Voltage at Pmax | 4.35V |
| Current at Pmax | 8.98A |
| Open circuit voltage | 4.87V |
| Short circuit current | 9.57A |
| 6V 225Ah | |
| Cells per unit | 6 |
| Voltage per unit | 12 |
| Capacity | 110Ah @10hr-rate to 1.8V per cell @25ºC |
| Weight | Approx. 33kg (±2%) |
| Max discharge current | 1100A (5sec) |
| Internal resistance | Approx. 5mΩ |
| Operating temperature range |
Discharge: -20ºC~60ºC Charge: 0ºC~50ºC Storage: -20ºC~60ºC |
| Normal operating temperature range | 25ºC±5ºC |
| Float charging voltage | 13.6 to 13.8 VDC/unit @25ºC on average |
| Recommended max charging current | 33A |
| Equalization and cycle service | 14.6 to 14.8 VDC/unit @25ºC on average |
| Self discharge | The Valve Regulated Lead Acid (VRLA) battery can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge the battery before using |
| Terminal | Terminal F9 |
| Container material | A.B.S. UL94-HB, UL94-V0 optional |

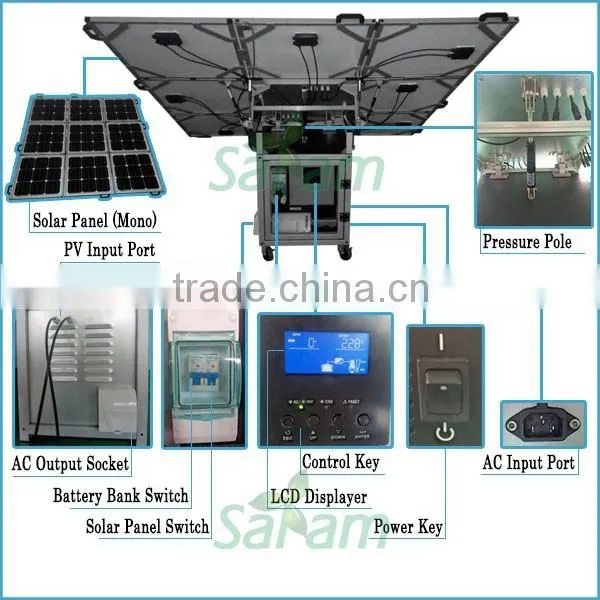

Details
Exploded View
System Wiring Diagram
PS: When the system completely discharges off the electricity, system output would be shut down or convert to the state grid, when the portable PV electric generator charges the amount in half, the system will automatically restore power supply again. Please turn-off the machine when you are not using it to conserve energy.
Packing
| S150 Packing | |
| The entire portable PV electric generator is fully assembled before packing, then packed into a plywood case. | |
| Package type | Plywood case |
| Quantity per package | 1pc/case |
| Dimension | 82*82*89cm |
| Gross weight | 170kg |
| Loadability | 14pcs/20'GP; 30pcs/40'GP; 45pcs/40'HQ |
| |
Alibaba Trade Assurance
GOOD NEWS: SAIAM has been verified as a gold supplier with TRADE ASSURANCE service, which means your purchase here directly through our web is perfectly secured by Alibaba. You're highly recommended to order via TRADE ASSURANCE!
