Home > Products > All products > Cheap System1500w China pv Solar Panel Price

Cheap System1500w China pv Solar Panel Price

Name: Cheap System1500w China pv Solar Panel Price
Brand: SAIAM Power
Availability: InStock

FOB Price

US$ 4,700 - 5,100 / Piece

1 Piece(Min. Order)

Port Xiamen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	SAIAM Power
Model Number	S150	Specification	Normal
Output Voltage (V)	220V
Load Power (W)	Adjustable	Solar Power (W)	1395
Work Time (h)	Depands on load power

Product Description

REASONS TO BUY

Sick of the inconvenience of the so called "Portable Solar Power System" which currently dominates the market?

Now, SAIAM has made it a history.

With the advancing design concept, we've brought solar power system into a new era. Emerging all the possibilities to make the product realistically portable, we present to the world the brand-new mobile solar energy system - SAIAM POWER M-Cube.

Ever imagined using a solar power system to power your demands like using a mobile charger to power your mobile phone? With SAIAM M-Cube, now your "Plug and Play" imagination has come true.

This magical box needs no trivial installating, configurating, once you buy it, you use it.

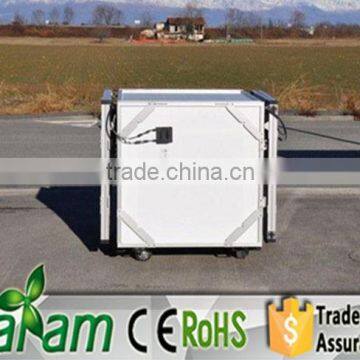

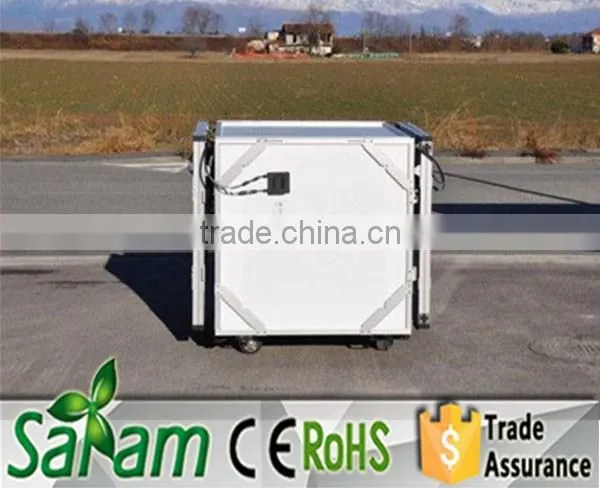

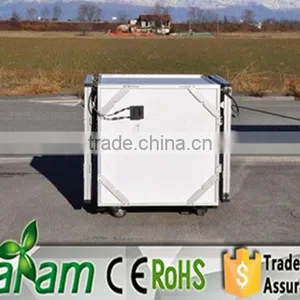

Featuring Mobility and Foldability SAIAM M-Cube satisfies you with its convenience of "ALL-IN-ONE". All you need to do is to move it to an ideal place, fix the trundles, unfold the panels, plug it, then press the button and enjoy!

What occasions do the M-Cube fit?

.Home use

Camping

.Marine power supply

.Army traning

.Outdoor construction

.Mobile communication

...

Actually, by far, we've supported many projects of many clients' with this new product.

M-CUBE ANALYZING

Tech Specification

S150 Mobile Solar Power System
PV Power (Poly)	1395W
Inverter Power	3200W
Battery	8pcs 6V 225Ah
Battery Capacity	10800W (48V 225Ah)
Dimension Closed	127127120H cm
Dimension Opened	256313227H cm
Weight	515kg
Optional Tweaks	21.6KWh Enhanced Battery DC Output 5V 12V 24V 48V AC Output 110V 60Hz Remote Monitor Control System Add Recharge from Wind Turbine

Battery Duration
In the total absence of sunlight, how many working hours are remaining? This chart gives a clear indication.
Power	Time
100W	170h
500W	24h
800W	13.2h
1000W	10h
1500W	6.1h
2000W	4.3h
3000W	2.6h

Daily Production
S150		Los Angeles	Capetown	Dubai	Sydney
	January	3.52	9.69	4.81	7.04
	April	7.94	5.1	7.73	4.26
	July	8.99	3.38	7.87	3.23
	October	5.31	7.66	6.64	6.57
	Average anual	6.41	6.44	6.82	5.28

S150 Solar Panel 155W
Electrical Characteristics
At standard test-conditions (STC): 1000W/m³, cell temperature 25ºC, AM1.5
Max power at STC	155W
Voltage at max power	18.59V
Current at max power	8.34A
Open circuit voltage	22.26V
Short circuit current	9.12A
Power tolerance	0~3W
V DC max system voltage	1000V
Mechanical Characteristics
Panel cell type	Poly, 156156mm, 36pcs (66)
Glass	3.2mm high transmission, low iron, tempered glass
Frame	Anodized Aluminum Alloy
Junction box	IP65, 700mm (IP65, 400mm)
Dimension	9869864mm
Weight	8kg
Warranty and certification
5 years of process quality assurance
90% of peak power rating after 10 years
80% of peak power rating after 25 years
With CE certificate

6V 225Ah
Cells per unit	3
Voltage per unit	6
Capacity	225Ah @10hr-rate to 1.8V per cell @25ºC
Weight	Approx. 32kg (±2%)
Max discharge current	2250A (5sec)
Internal resistance	Approx. 1.7mΩ
Operating temperature range	Discharge: -20ºC~60ºC Charge: 0ºC~50ºC Storage: -20ºC~60ºC
Normal operating temperature range	25ºC±5ºC
Float charging voltage	6.8 to 6.9 VDC/unit @25ºC on average
Recommended max charging current	67.5A
Equalization and cycle service	7.3 to 7.4 VDC/unit @25ºC on average
Self discharge	The Valve Regulated Lead Acid (VRLA) battery can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge the battery before using
Terminal	Terminal F14
Container material	A.B.S. UL94-HB, UL94-V0 optional

Details

Exploded View

System Wiring Diagram

PS: When the system completely discharges off the electricity, system output would be shut down or convert to the state grid, when the solar system charges the amount in half, the system will automatically restore power supply again. Please turn-off the machine when you are not using it to conserve energy.

PACKING & SHIPPING

Packing

S150 Packing
The entire system is fully assembled before packing, then packed into a plywood case.
Package type	Plywood case
Quantity per package	1pc/case
Dimension	144146146cm
Gross weight	585kg
Loadability	4pcs/20'GP; 8pcs/40'GP; 9pcs/40'HQ
