Perfect design 1.5KW mobile solar power supply
- 200 Piece / Pieces per Month
- Shanghai
- T/T
- Economic price 100w 200w 300w 400watt ABS Housing Solar Cell All In One Integrated Solar Street Light
- Wall Mounted Lifepo4 51.2v 100ah 200ah Lfp battery for Solar System
- 10kwh 20kwh Home Solar Lithium 48v 200ah LiFePO4 Battery
- Residential 5kw Complete Solar Panel Kit For Home Solar Power System With Lithium Or Lead Acid Battery
- Home Hybrid Solar 10KW 40KW 50KW Whole Set Kit Solar Energy System Home Hybrid Solar Power System
- TENTEK TON-5150S stackable solid-state Lithium battery
Product Details
Place of Origin: | Fujian, China | Brand Name: | SAIAM Power | Model Number: | S150 |
Specification: | Normal | Output Voltage (V): | 110/120/220/230V | ||
Load Power (W): | rated 3200W | Solar Power (W): | 1395 | Work Time (h): | 10 Hours for 1000W loads |
Product Description
New generation mobile solar energy system
SAIAM POWER M-Cube
Ever imagined using a solar power system to power your demands like using a mobile charger to power your mobile phone? With SAIAM M-Cube, now your "Plug and Play" imagination has come true. This magical box needs no trivial installating, configurating, once you buy it, you use it.

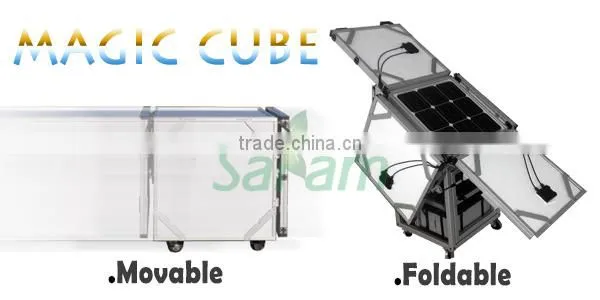

Featuring Mobility and Foldability SAIAM M-Cube satisfies you with its convenience of "ALL-IN-ONE". All you need to do is to move it to an ideal place, fix the trundles, unfold the panels, plug it, then press the button and enjoy!
What occasions does the M-Cube fit?
.Camping
.Marine power supply
.Army traning
.Outdoor construction
.Mobile communication
...
Actually, by far, we've supported many projects of many clients' with this solar power system.
Tech Specification
S150 Mobile Solar Power System | |
PV Power (Poly) | 1395W |
Inverter Power | 3200W |
Battery | 8pcs 6V 225Ah |
Battery Capacity | 10800W (48V 225Ah) |
Dimension Closed | 127*127*120H cm |
Dimension Opened | 256*313*227H cm |
Weight | 515kg |
Optional Tweaks | 21.6KWh Enhanced Battery DC Output 5V 12V 24V 48V AC Output 110V 60Hz Remote Monitor Control System Add Recharge from Wind Turbine |
Battery Duration | |
In the total absence of sunlight, how many working hours are remaining? This chart gives a clear indication. | |
Power | Time |
100W | 170h |
500W | 24h |
800W | 13.2h |
1000W | 10h |
1500W | 6.1h |
2000W | 4.3h |
3000W | 2.6h |
Daily Production | |||||
S150 | Los Angeles | Capetown | Dubai | Sydney | |
January | 3.52 | 9.69 | 4.81 | 7.04 | |
April | 7.94 | 5.1 | 7.73 | 4.26 | |
July | 8.99 | 3.38 | 7.87 | 3.23 | |
October | 5.31 | 7.66 | 6.64 | 6.57 | |
Average anual | 6.41 | 6.44 | 6.82 | 5.28 |
S150 Solar Panel 155W | |
Electrical Characteristics | |
At standard test-conditions (STC): 1000W/m³, cell temperature 25ºC, AM1.5 | |
Max power at STC | 155W |
Voltage at max power | 18.59V |
Current at max power | 8.34A |
Open circuit voltage | 22.26V |
Short circuit current | 9.12A |
Power tolerance | 0~3W |
V DC max system voltage | 1000V |
Mechanical Characteristics | |
Panel cell type | Poly, 156*156mm, 36pcs (6*6) |
Glass | 3.2mm high transmission, low iron, tempered glass |
Frame | Anodized Aluminum Alloy |
Junction box | IP65, 700mm (IP65, 400mm) |
Dimension | 986*986*4mm |
Weight | 8kg |
Warranty and certification | |
5 years of process quality assurance | |
90% of peak power rating after 10 years | |
80% of peak power rating after 25 years | |
With CE certificate |
6V 225Ah | |
Cells per unit | 3 |
Voltage per unit | 6 |
Capacity | 225Ah @10hr-rate to 1.8V per cell @25ºC |
Weight | Approx. 32kg (±2%) |
Max discharge current | 2250A (5sec) |
Internal resistance | Approx. 1.7mΩ |
Operating temperature range | Discharge: -20ºC~60ºC Charge: 0ºC~50ºC Storage: -20ºC~60ºC |
Normal operating temperature range | 25ºC±5ºC |
Float charging voltage | 6.8 to 6.9 VDC/unit @25ºC on average |
Recommended max charging current | 67.5A |
Equalization and cycle service | 7.3 to 7.4 VDC/unit @25ºC on average |
Self discharge | The Valve Regulated Lead Acid (VRLA) battery can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge the battery before using |
Terminal | Terminal F14 |
Container material | A.B.S. UL94-HB, UL94-V0 optional |

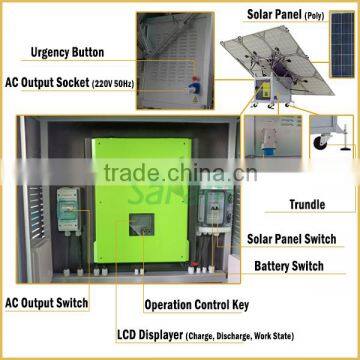

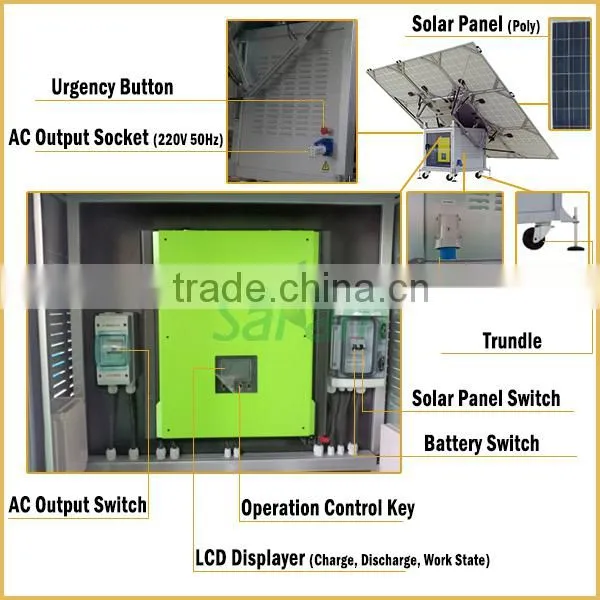

Details
Exploded View
System Wiring Diagram
PS: When the system completely discharges off the electricity, system output would be shut down or convert to the state grid, when the solar power system charges the amount in half, the system will automatically restore power supply again. Please turn-off the machine when you are not using it to conserve energy.
S150 Packing | |
The entire system is fully assembled before packing, then packed into a plywood case. | |
Package type | Plywood case |
Quantity per package | 1pc/case |
Dimension | 144*146*146cm |
Gross weight | 585kg |
Loadability | 4pcs/20'GP; 8pcs/40'GP; 9pcs/40'HQ |
