Introduction
Wind turbine generator 5kw 220v generates electricity and charge into storage battery group. Through the multi-voltages power supply system, the electricity can be changed into DC and AC used for illumination, home appliances, communication devices and electric tools.
Feature
- Excellent power output performance during the common wind speed between 5m/s and 9m/s
- Equipped with high quality NSK brand sealed bearing
- Cast steel body with anti-corrosion treatment for working well in harsh environment
- Direct drive, gearless, maintenance-free permanent magnet generator
- Multi-protection methods ensure system in high reliability and safety during high wind speed operation (mechanical yawing + electromagnetic brake + manual brake)
Specification
| Performance | |
| Rated power | 5000W @10m/s |
| Peak power | 8000W |
| Start-up wind speed | 3m/s |
| Working wind speed | 3.5-35m/s |
| Survival wind speed | 40m/s |
| Rotor | |
| Rotor diameter | 5.5m |
| Swept area | 23.75m2 |
| Blade | 3pcs reinforced fiber glass |
| Blade length | 255cm |
| Shell material | precision steel |
| Rated RPM | 260 |
| Weight | 310KG |
| Others | |
| Generator type | 3-phase AC PM, gearless |
| Speed regulation & protection | yawing + electromagnetic brake + manual brake |
| Controller rated voltage | DC 48-360V |
| Suggested battery capacity | 8pcs 250AH/12VDC |
| Tower type |
8-12m guyed cable/
9-18m free standing
|
| Working temperature | -40-60°C |

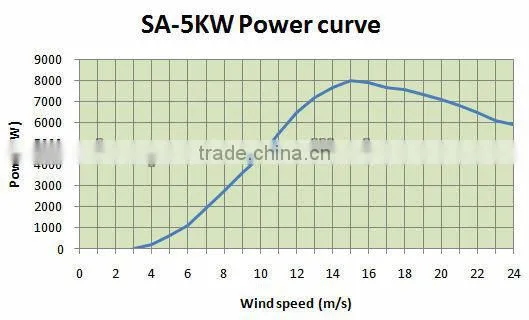

| Power curve for Wind turbine generator 5kw 220v | |
| |

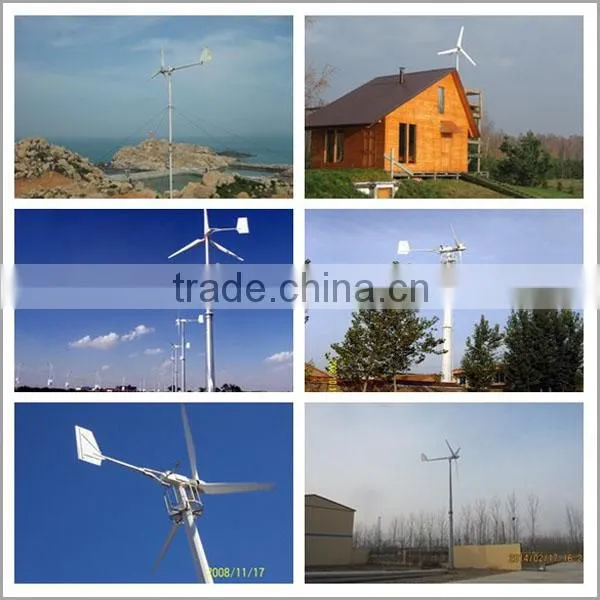

Application

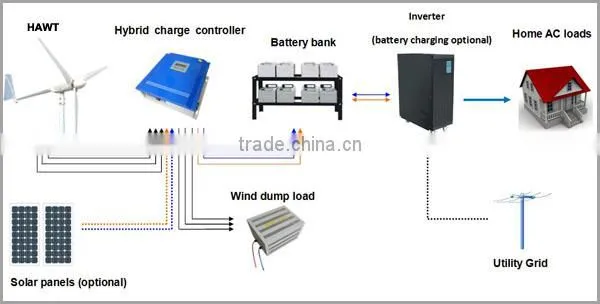

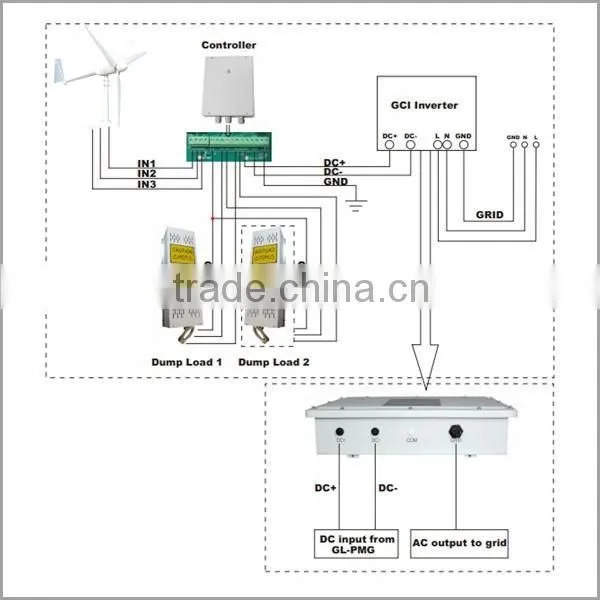

1. Hybrid wind and solar power system for home AC loads.

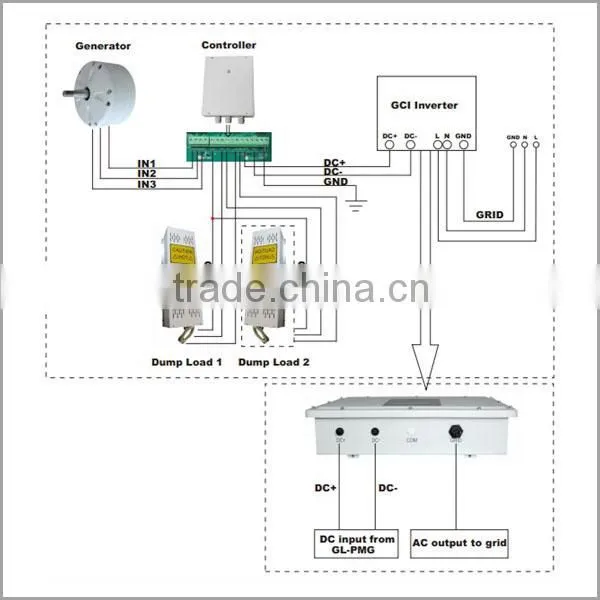

2.On grid wind power system

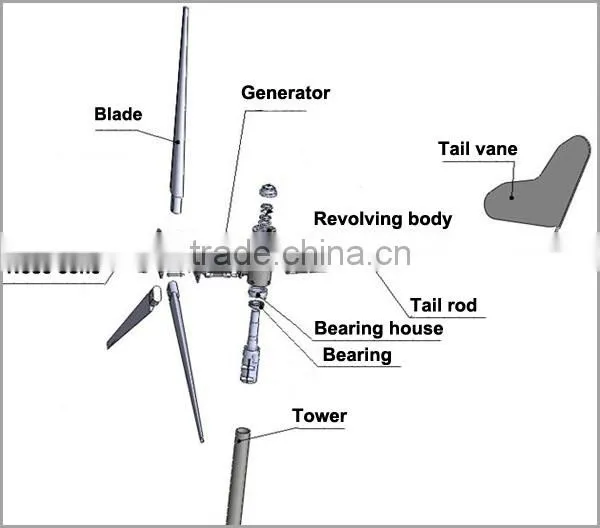

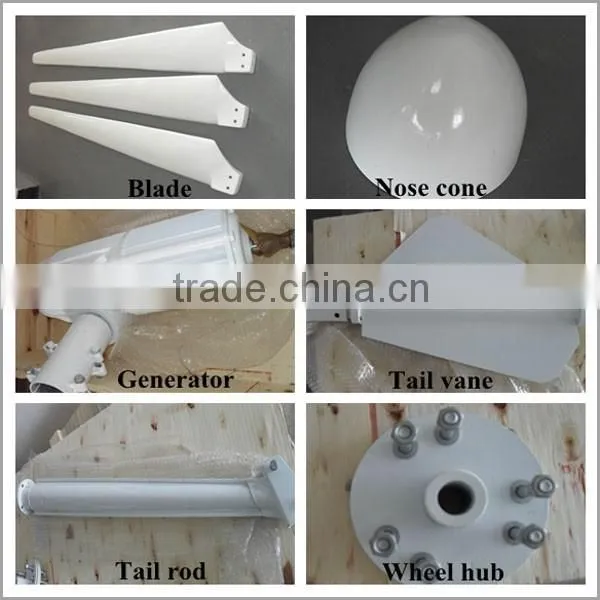

Deatils

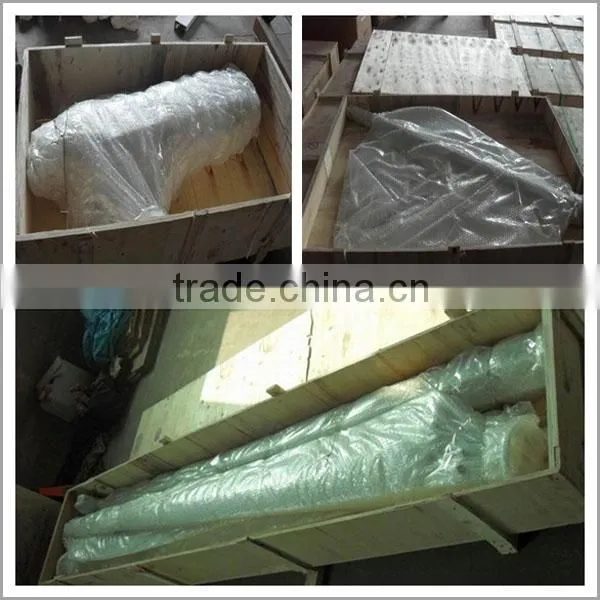

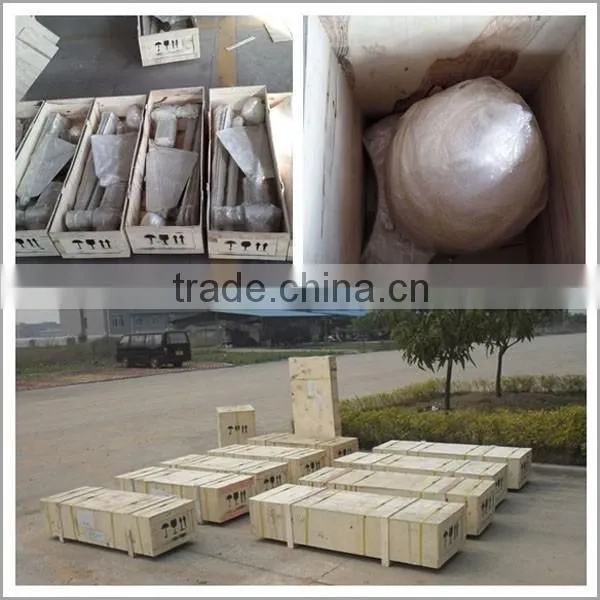

Packaging & Shipping
- Each wind turbine generator 5kw 220v was packed into 4 plywood cases;
- Packing dimension of each case:11x74x53cm, 300x43x40cm/,142x92x12cm, 50x50x60cm;
- Total N.W/G.W: 310KG/341.5KGS.
Shipping method
Sample order is acceptable and recommended to send via LCL sea shipment or air shipment. Please contact our sales to get the detail shipment suggestion.
Q1: Is the wind turbine price listed above include the charge controller and others? If
not,where I can purchase the controller and inverter?
A: The listed price is just for wind turbine only (generator + blades), no including
controller, inverter and other parts. Please contact our sales for the controller, inverter
and other system parts for on grid and off grid application.
Q2: What is the working voltage of your HAWTs for my battery bank or grid utility?
A: Please find our recommended working voltage as below:
SA-1KW --- 24V/48V (off grid) / 220V (on grid)
SA-2KW --- 48V/96V (off grid) / 220V (on grid)
SA-3KW --- 48V/96V/120V (off grid) / 220V (on grid)
SA-5KW --- 96V/120V/240V (off grid) / 220V (on grid)
SA-10KW --- 120V/240V/360V (off grid) / 380V (on grid)

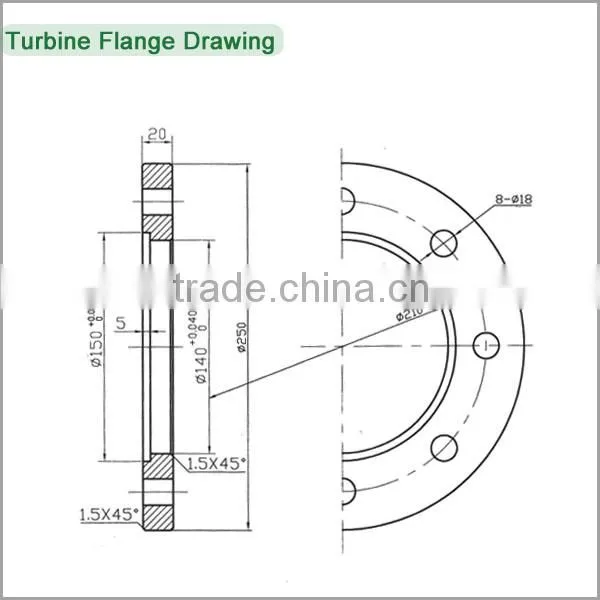

Q3: What thickness of pole would we use for your horizontal wind turbine and what would be
the height approximately of the section that we would add on to your unit?
A: We recommend to use 3mm-5mm thickness, 6-12m height guyed cable tower or 5mm-8mm
thickness, 6-15m height free standing tower for our HAWT 1KW-10KW. Please contact our sales
to get more tower information.
Q4: How is your HAWTs to realize the security protection during heavy winds?
A: There are multi security protection to ensure our HAWTs speed regulation and protection
during high wind: yawing + electromagnetic brake (by controller) + manual brake (available
on HAWT 5KW and 10KW models).
