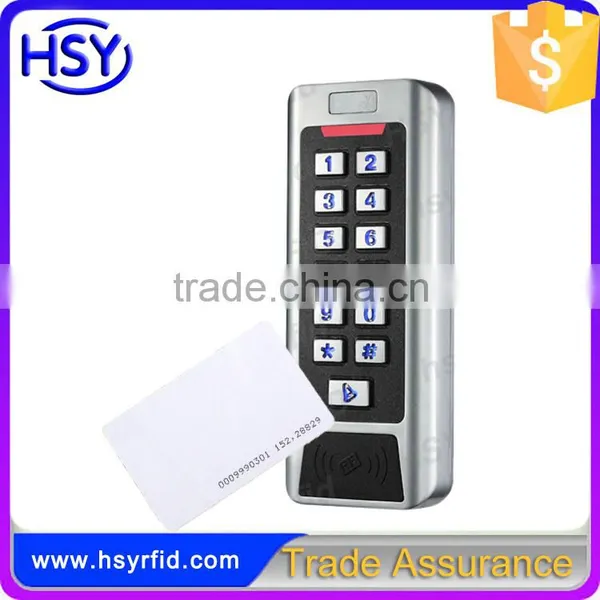

HSY-S215W 125khz EM Card Waterproof Metal Shell 2 Door Controller RFID Stand-alone Reader with 2 Relays
Advantage:
1. OEM/ODM orders are welcome;
2. Professional techniques support help you slove the issue when testing;
3. Friendly software,SDK for free to OEM/ODM customers;
4. Highly quality products with competitive price.
Features:
1. Pure Zinc alloy case; waterproof conform to IP 68
2. Built-in 125KHz
3. Perfect digital backlit key, the back light can be set to Normal ON, Normal OFF or Human-Approach ON
4. With anti-tamper Alarm, door contact Alarm, Anti-duress Alarm function
5. Add and delete card user quickly With Manager cards
6. Can register and delete user via keypad
7. Master can open the door when entering the setting status
8. Multi working modes: reader, one door, two door, interlock, anti-passback and so on, suitable for many occasions
Support 7 type working mode:
1.Wiegand Reader,
2.Standalone for single door,
3.standalone for two doors,
4.with external reader for two doors
5.two units interlocked for two doors,
6.Anti-passback for single door,
7.Anti-passback for two door.
Besides, it also supports 1 Master code,2 Manager card, 2 Anti-duress Card users and 2 Anti-duress PIN users, providing users with easy operations and safety reliability
2 Door Controller RFID Stand-alone Reader Specification:
Input Voltage : AC/DC 12V
Idle Current<25mA
Lock output load<1A
Alarm output load<1A
Ring bell load<1A
Card reading distance 40mm Max
Card Frequency: 125KHz for EM
Card transmission format 26-37 bit wiegand
Keypad transmission format:4bit,8bit and Virtual card number
Operating Temperature:-45°C~55° C
Operating Humidity:0%~95%.
2 Door Controller RFID Stand-alone Reader Sample shows:
Installation:
1).Remove the back cover from the keypad using the supplied special screw driver
2) Drill 2 holes on the wall for the Self tapping screws and I hole for the cable
3)Put the supplied rubber bungs to into the two holes
4)Fix the back cover firmly on the wall with 2 Self tapping screws
5)Thread the cable through the cable hole
Attach the keypad to the back cover.
Wiring diagram:
Sound and light indication:
Working mode diagram:
Q1: What is the Warranty for products ?
A1: We have Professional technical Departments,Our Warranty:1 years' product warranty, A lifetime technical support .
Q2: How to make payment ?
A2: We can accept transfer by T/T, Paypal, Westerm Union and Escrow.
Q3: What is MOQ and price ?
A3: We support sample and bulk order, Will offer best price based on your order.
Q4: Do you support after-sales service ?
A4: Yes, we have an international professional team offer 24h*7 after-sales service.
