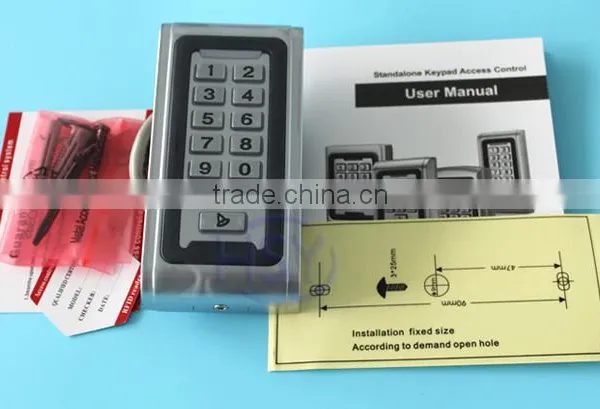

HSY-S212W Metal Shell Waterproof Wiegand26 RFID Card System Access Door Controller With Keypad

US$ 22.9 - 48.17 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HSY

Model Number:

HSY-S212W

Shenzhen HSY Security Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HSY

Model Number HSY-S212W

HSY-S212W Metal Shell Waterproof Wiegand26 RFID Card System Access Door Controller with Keypad

Product Description

Access Door Controller with Keypad Introduction:

The product is Contact-less inductive card Metal Password Access Controller,According to the model,

respectively support ID or IC cards.

It is one of the most advanced stand alone access controller.

It uses unique metal exterior design, Dexterity keyboard panel operation,

Built-in high-grade microprocessors, Strong anti-interference ability,

Safety and reliability is extremely high, can provide a powerful security for 2,000 users.

It has strong functions, such as low power consumption, Luminous keyboard,

independent passwords, wiegand output, the output short circuit protection,

door magnetic alarm, prevent demolition alarm, exit button, the doorbell interface,

level of security Settings, etc.

Widely used in home, office, residential area and other public places.

Access Door Controller with Keypad Spec:

Product Parameters:
Model No:	HSY-S212 (waterproof)
Low power consumption:	less than 30mA standby current
Luminous keyboard:	the night can also operate keyboard
User capacity:	support 2,000 users
Independent password:	can use password which irrelevant with the card to open the door
User modification password:	Users can revise the door password
Search speed:	charge to open the door time less than 0.1 S.
Output short circuit protection:	electric lock or alarm output circuit within 100 μS when shut down automatically output
Wiegand output:	With Wiegand output interface,Wg26 card number or Wg4 buttons output
Usable keyboard delete card number:	After card is lost, usable keyboard delete card, Thoroughly eliminate safety lapses
The demolition alarm:	Illegal dismantling machine, built-in alarm sound buzzer
The bell button and interface:	key and circuit segregation, external any the doorbell.
Technical parameters:
Working frequency	125khz or 13.56mhz
Standard interface	Wiegand 26 input
Work Voltage:	DC9-28V
Static Current:	≤30mA
Reading Range:	3~8cm
Waterproof degree:	IP68 rating
Ambient Temperature:	-25~60 Degree
Ambient Humidity:	10%~90%
Electricity lock output:	≤3A
Alarm output:	≤20A
Output short circuit protection time:	≤100μS
Open time:	0 ~ 99 seconds (adjustable)
Size:	120(L) x 59(W) x 22(H) mm
