new energy Natural gas generator set

FOB Price

USD $1,000 - $100,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port QINGDAO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	LH
Model Number	LHNG1000	Condition	New
After-sales Service Provided	Overseas service center available

Product Description

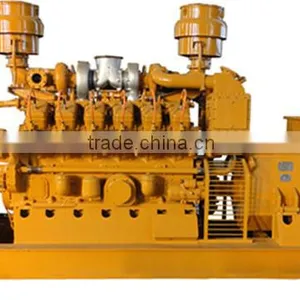

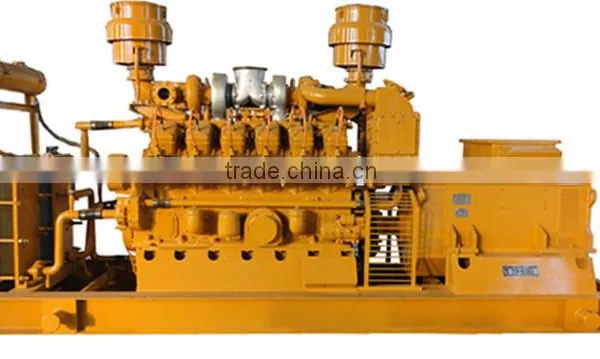

Natural gas generator set

Natural Gas---its main component is CH4,which takes 90% of the whole content. Thermal efficiency of conversion is 65%, which is same to the LPG and higher than Coal; Calculated on the same calorific value, the price of natural gas is lower than the price of coal and petroleum. Natural gas is used by civil use, generation, industrial chemicals and industrial fuel etc. it's a good substitute of coal and petroleum. It can take instead of civil coal gas; it can be used as nitrogenous fertilizer instead of coal and petroleum; it can be used as ethylene instead of naphtha; it can be used as the car engine fuel instead of petroleum.

Natural Gas Generator, fueled mainly by natural gas and LPG, is widely used in regions or areas with abundant oil field and natural gas. Global electrical power demand will be 80% higher by 2040, with gas becoming a key energy source for EP generation. The unit starts quickly, be operated easily, with complete set of safety system, and can be as power device and electricity device for oil field and local companies.

Technical Parameters of Natural Gas Generator

Rated Voltage	400V/230V	Heat Consumption	≤11.38mj/kw.h
Phase	3 phase,4 wire	Pressure	3-20kpa
Rated Frequency	50Hz	Intake Model	natural intake
Power Factor	0.8	Sparking Mode	sparking pl
Voltage Regulating Range	95-105%	Voltage Regulation Mode	automatic
Voltage Steady State	≤±2%	Speed Regulation Mode	Electronic speed regulate
Voltage Transient State	≤±10%	Lubricating Mode	pressure and splash
Voltage Settling	≤1s	Cooling Mode	circulating water cooling
Voltage Volatility	≤±0.5%	Starting Mode	24V electric motor
Frequency Steady State Regulation Rate	≤0.5%	Overhaul Time	≥30000h
Frequency Transient State Regulation Rate	≤±10%	Noise	≤105db(A)
Oil Consumption	≤±1.0g/kw.h	Exhaust temperature	≤650℃

small-medium power series Natural Gas gen-set

Gen-set Model	Engine model	Alternator Brand	Rated Power	Rated Speed	Cylinder No.	*BoreStroke(mm**)	Displacement(L)
LHNG20	LH4100	Stanford, Marathon, Engga	20	1500/1800RPM	4	100*115	3.61
LHNG60	LH4135	Stanford, Marathon, Engga	60	1500/1800RPM	4	135*150	8.6
LHNG100	LH6135	Stanford, Marathon, Engga	100	1500/1800RPM	6	135*150	12.9
LHNG120	LH12V135	Stanford, Marathon, Engga	120	1500/1800RPM	12	135*150	25.8
LHNG140	LH12V135	Stanford, Marathon, Engga	140	1500/1800RPM	12	135*150	25.8
LHNG150	LH12V135	Stanford, Marathon, Engga	150	1500/1800RPM	12	135*150	25.8
LHNG180	LH12V135	Stanford, Marathon, Engga	180	1500/1800RPM	12	135*150	25.8
LHNG200	LH12V135	Stanford, Marathon, Engga	200	1500/1800RPM	12	135*150	25.8

Technical Parameters Natural Gas Gen-set

Gen-set Model	Engine model	Alternator Brand	Rated Power	Rated Speed	Cylinder No.	Bore*Stroke(mm)	Displacement(L)
LHNG250	LH12V138	Stanford, Marathon, Engga	250	1500/1800RPM	12	135*150	25.8
LHNG300	LH6190	Siemens, Stanford	300	1000/1200RPM	12	190*210	71.4
LHNG350	LH12V190	Siemens, Stanford	350	1000/1200RPM	12	190*210	71.4
LHNG400	LH12V190	Siemens, Stanford	400	1000/1200RPM	12	190*210	71.4
LHNG500	LH12V190	Siemens, Stanford	500	1000/1200RPM	12	190*210	71.4
LHNG600	LH12V190	Siemens, Stanford	600	1000/1200RPM	12	190*210	71.4
LHNG1000	LH16V190	Siemens, Stanford	1000	1000/1200RPM	16	190*210	95.2
LHNG1100	LH16V190	Siemens, Stanford	1100	1000/1200RPM	16	190*210	95.2
