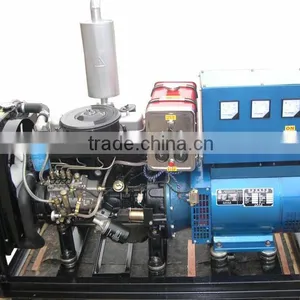

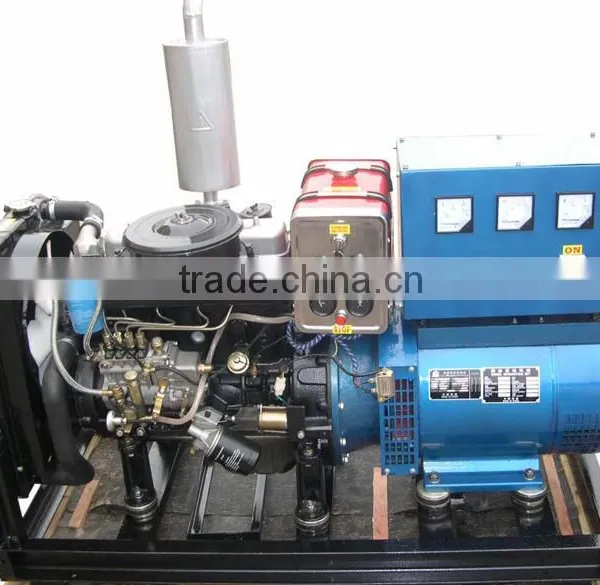

Diesel Generator
Negotiable
1 (Min. Order)
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | gold bull |
Product Description
Specifications
diesel generator with EPA approvalSPECIFICATION OF 10-200KW DIESEL GENERATOR | ||
WITH EPA APPROVAL | ||
MODEL OF GEN-SET | 12KW | 15KW |
Model of Engine | YD385D | YD485D |
Type | Vertical,water-cooling,four-stocke,vertical | Vertical,water-cooling,four-stocke,vertical |
Number of cylinders | 3 | 4 |
Bore(mm) | 85 | 85 |
Stroke (mm) | 90 | 90 |
Compression ratio | 22:1 | 22:1 |
Total displacement(L) | 1.532 | 2.043 |
Firing order | 1-3-2 | 1-3-4-2 |
Rated power(12h,KW) | 13.6 | 21 |
Rated speed(r/min) | 1800 | 1800 |
Max.torque(N.m) | ≥84 | ≥112 |
Min.specific fuel consumption at full load(g/kW.h) | ≤267.9 | ≤267.9 |
Specific lube oilconsumption(g/kw.h) | 2.72 | 2.72 |
Advance angle of supply fuel/speed(before TDC)()/r/min | 10±1/3000(with Advance Device) 18±1/2800 16±1/2600 15±1/2400 | 10±1/3000(with Advance Device) 18±1/2800 16±1/2600 15±1/2400 |
Injection Pressure | 13.2±0.5 | 13.2±0.5 |
Direction of crankshaft rotation(facing to flywheel) | Counterclockwise | Counterclockwise |
Cooling method | Forced water Cooling | Forced water Cooling |
Starting method | Electric | Electric |
Model of alternator | ST-12 OR TFW-12 | ST-15 OR TFW-15 |
Rated power | 12KW | 15KW |
Rated voltage | 120/240V | 120/240V |
Rated current | 50 | 62.5A |
Rated frequency | 60Hz | 60Hz |
Rated speed(r/min) | 1800r/min | 1800r/min |
Power factor | 1 or 0.8 | 1 or 0.8 |
Phase connection | 1 or 3 | 1 or 3 |
Winding Connection | 3 or 4 -wire | 3 or 4 -wire |
Exciation | Brush or brushless | Brush or brushless |
Insulation class | B or F(For TFW-12KW Brushless) | B or F(For TFW-15KW Brushless) |
Voltage regulation method | AVR | AVR |
Steady-state-voltage | IP23 | IP23 |
Control Panel | V-meter,A-meter,Frequency meter,circuit breaker,transfer | V-meter,A-meter,Frequency meter,circuit breaker,transfer |
switch,light,etc. | switch,light,etc. | |
Net mass(kg) | 420 | 450 |
Overall dimensions(L×W×H)(m) | 1.36*0.70*0.98 | 1.50*0.70*0.98 |
