RS232/485 Wiegand34/26 RFID Long Range Card Reader with 1 M Reading Distance
Advantage:
1.16 years experience professional in RFID products
2. OEM/ODM orders are welcome;
3. Professional techniques supports;
4. Best quality,Best price,Best Service.
Introduction:

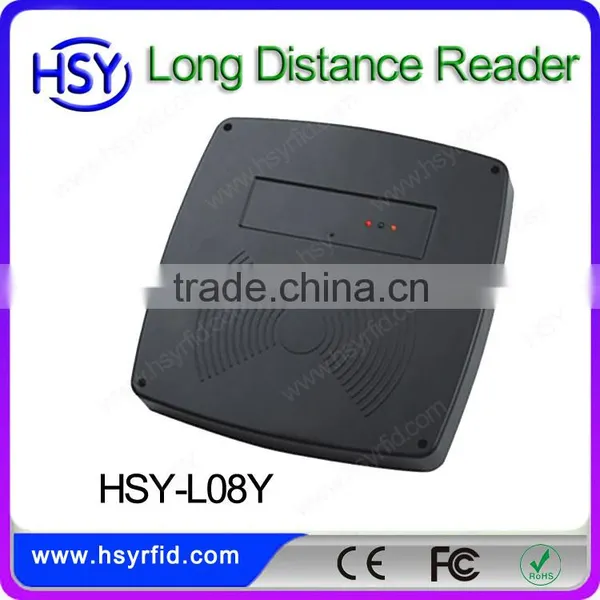

HSY-L08Y with high performance,without software, lower price long range 125KHZ RFID reader, reader distance up to 100cm,widely used for RFID Radio Frequency Identification system and project, such as Automated parking management system,Personal identification, Access controller, Production Access control, etc.
RFID Long Range Card Reader 1 M Spec.:
| Parameters: | |
| Model No. | HSY-L08Y |
| Standard interface | Standard with Wiegand 26bits or Wiegand34bits interface. |
| Optional interface | RS232 or RS485 communication is optional. |
| Working frequency | 125khz |
| Response Speed | Less than 0.2 second |
| Reading distance | 70cm-100cm Proximity Range dependence on Cards Quality |
| Reading card type | Support EM 125Khz ID card or compatible with it |
| Ambient Temperature | -25 degree to +75 degree |
| Ambient Humidity | 10%-90% |
| Built-in Antenna | Yes |
| Built-in LED | (Double Color LED) |
| Buzzer | Built-in Loud Speaker |
| Working Voltage | DC 12V, 70mA Working Current |
| Communication Distance | 100 CM |
| Real Time Data Transfer | Yes |
| Color | Black Color |
| Material | ABS Case,IP65 waterproof degree |
| Product Size: | 260*260*35 (mm) |
| Package | 1pcs per box,10pcs per carton |

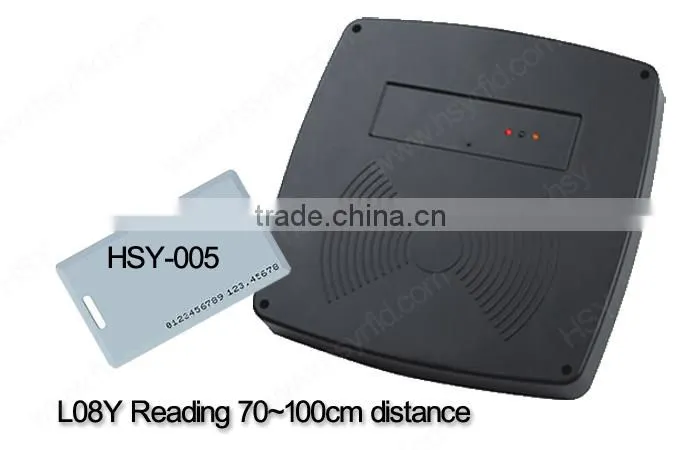

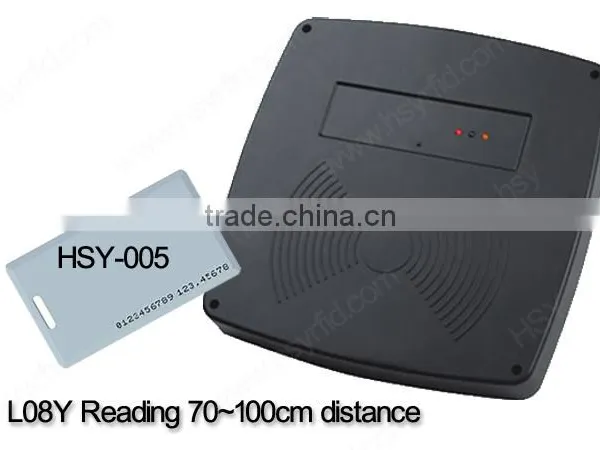

RFID Long Range Card Reader 1 M Sample shows:

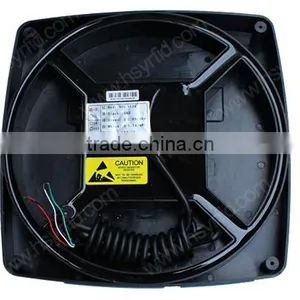

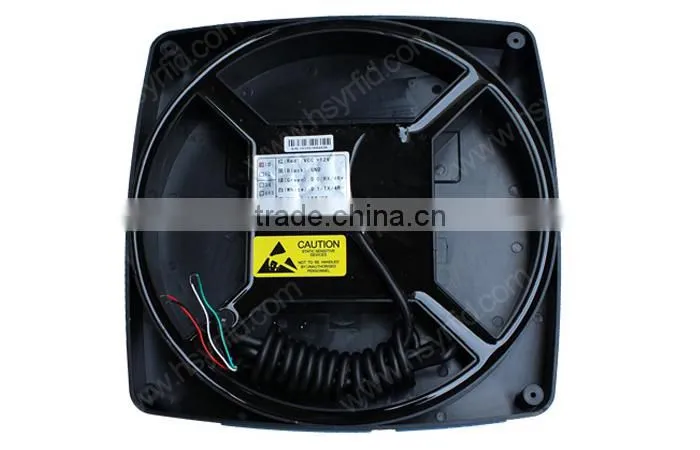

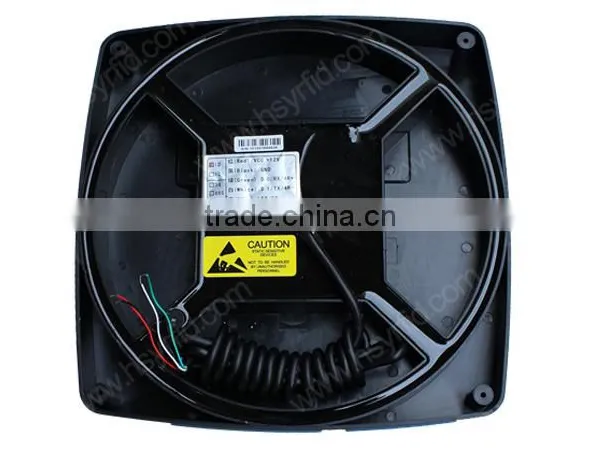

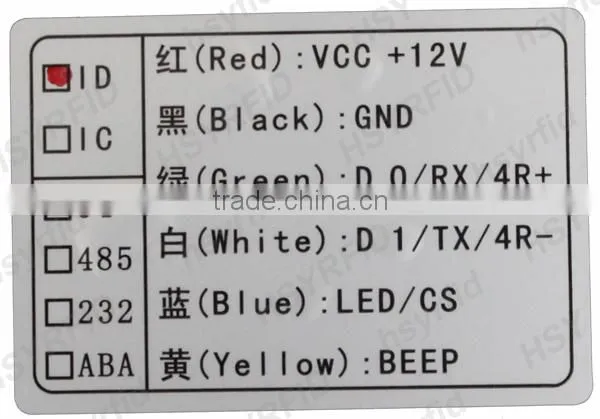

HSY-L08Y Wire connection:
Packaging:
1pcs per box, 10pcs per carton.
1Carton Gross weight around 21kgs.
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door service;
2. By Air or by Sea for bulk goods, for FCL; Airport/ Port receiving;
3. Support Customers specifying freight forwarders or selected shipping methods!
4. Delivery Time: 2~7 working days. Accurate deliver based on your quantity .
