HSY-R130 Contactless 13.56MHZ Waterproof c# Code RFID Card Reader for Security System

  HSY-R130 Contactless 13.56MHZ Waterproof c# code RFID Card Reader for security system

Advantage:

1.16 years experience professional in RFID products

2. OEM/ODM orders are welcome;

3. Professional techniques supports;

4. Best quality,Best price,Best Service.

HSY-R130 Introduction:

RFID card reader is a standard Wiegand26 bit output format and an off-contact high performance reader. Its main use is as a supplementary reading device for the controller which has the wiegand interface. It characters with exquisite appearance, convenient installation and stable characteristics.

c#code rfid card reader Specification:

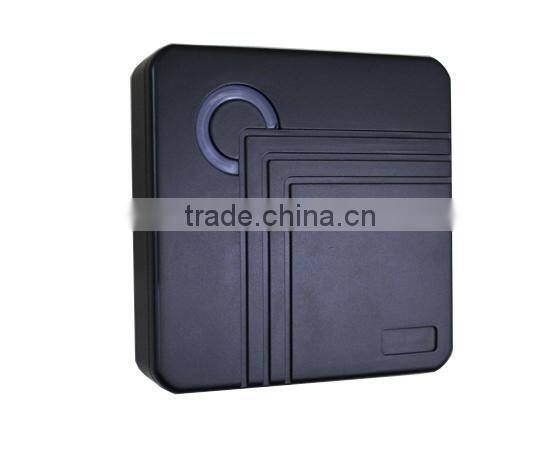

c#code rfid card reader Sample shows:

Wire Connection:

Red :+12V

Black Wire: GND

Blue Wire :DATA1

White Wire :DATA0

Green Wire:LED

Brown Wire:Buzzer

Installation:

Using “+”type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Notice!!!

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply

2. When external Power is used, make sure sharing the power with Controller Box or using the same GND

3. The wire connects reader to controller, advise use 8 cores stranded twisted pair cable(among them, three strands are spare, if no need reader show illegal card s by sound and light, LED wire can not be used, data wire Data1 Data0 are twisted pair would be better, we suggest sectional area are 0.22 square millimeter at least. The length should not exceed 100meters.
