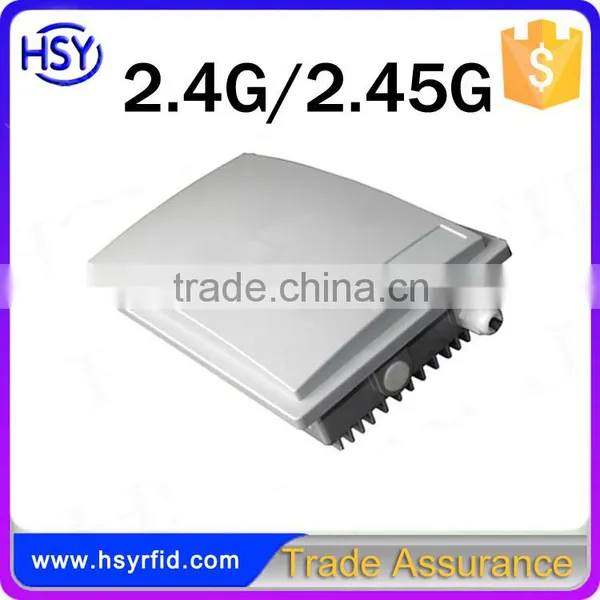

2.4G/2.45G Active Chip Card Long Range RFID Reader/Writer
Features:
HSY-L012 RFID reader is a type of direction reader, applying in wide alleyway,
far distance,quick identification, meeting the special demand of identification,
tracking and positioning among many tags simultaneously.
1. Alleyway management: open door control management system, including about intelligent resident district, mansion parking-lot charge, freeway ETC, safety-inspection from port or custom.
2. Personnel management: quick attendance administration, conference signature system, student safety note system, security patrol system.
3. Cargo management: storage and data collection, system, moving goods control and trace, container automatic identification.
4. Prevention management: personnel positioning ,tracing and inquiry, goods anti-fake and test.
5. Public management: city traffic intelligent platform, vehicle control and operation, train automatic numbering.
6. Manufacture management: work flow management, control spare parts in the course of process.
7. Transportation management: road, railway management, and container transfer control tracking management.
Long Range RFID Reader/Writer Specification:
| Model No. | HSY-L012 |
| Communication Mode | dynamically encrypt mode |
| Frequency | 2.4GHz-2.5M ISM Microwave band |
| Wireless Transmission Rate | 1MBps |
| Signal Modulation mode | GFSK |
| Operation Mode | Read tag only |
| Microwave Communication Error Detection | CRC8cycled redundance checkout |
| Identify Mode | Directional identification, level 60 Degree, vertical 60 degree |
| Receipting Sensitivity | -90dbm |
| Indentify Range | Longest 80m,distance adjustable |
| Indentify Speed | >100 cards at one time |
| Data Interface |
Standard: RS232, RS485,Wiegand available Other function can be added: WIFI or others |
| Power Adapter | DC+9V |
| Dimension | 285*205*77mm |

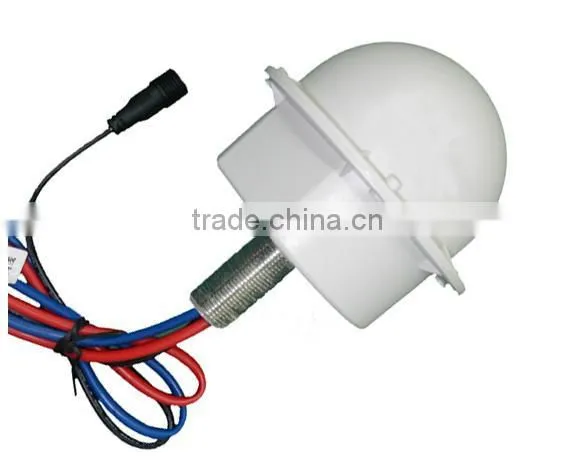

Other Cheap Active Reader Sample shows:

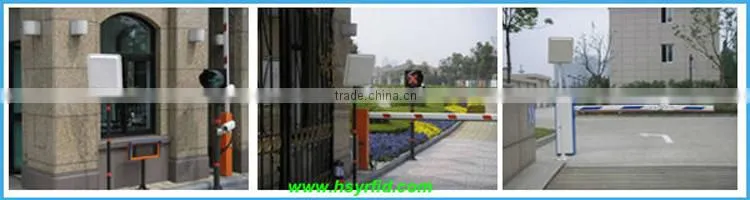

Application:
2.4G/2.45G Active Chip Card Long Range RFID Reader/Writer Maker
2.4G/2.45G Active Chip Card Long Range RFID Reader/Writer Maker
Welcome to your enquiry ! ^ _ ^
