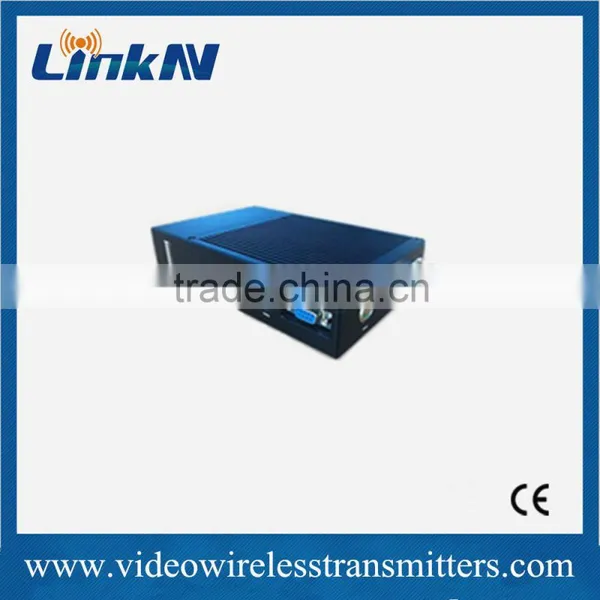

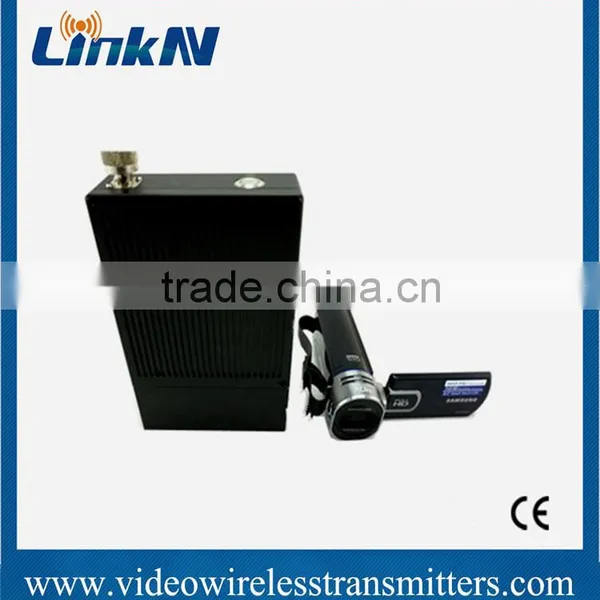

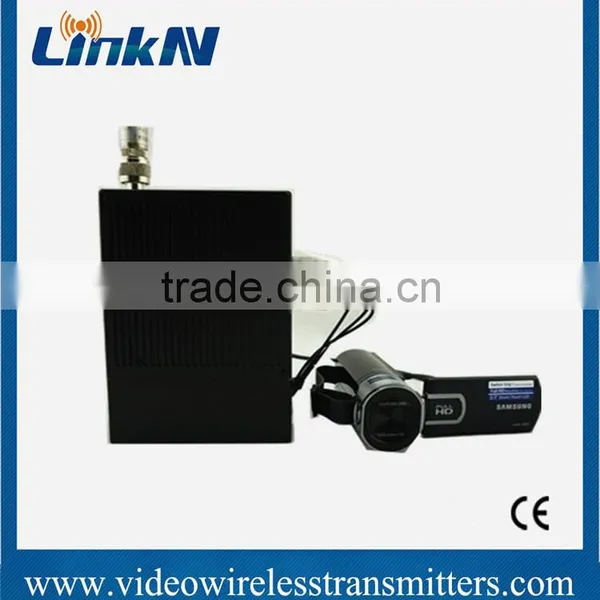

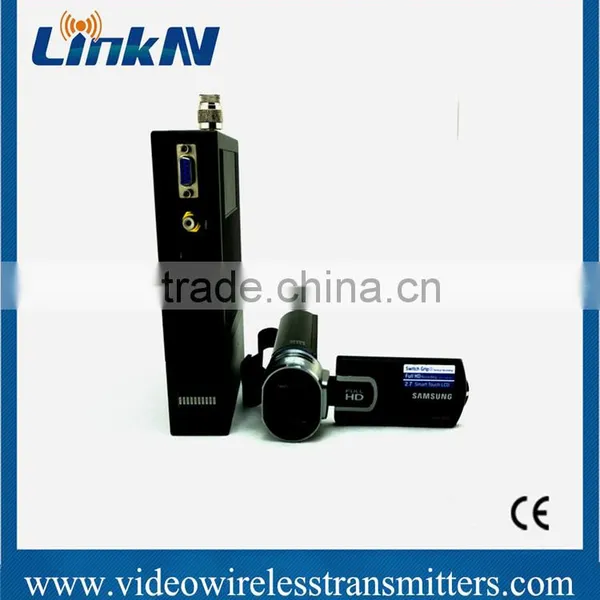

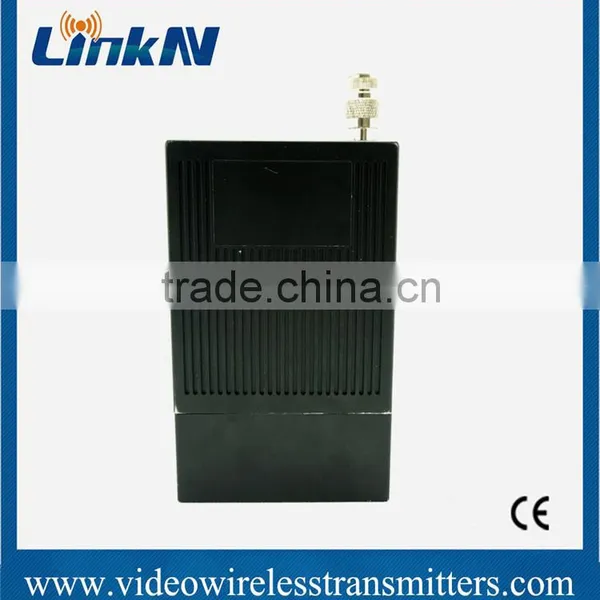

Help CenterLinkAV-T321S-1W TDD Bi-directional Wireless Long Range Transmitter System
Related Products
-
LinkAV-T321S-1W Bi-directional Wireless Long Range Transmitter SystemUS$ 1 - 2MOQ: 1 Piece -
Vehicle - Mountable 10 Watts TDD Wireless Car Transmitter for ProtectionNegotiableMOQ: 1 Piece
-
20W Car Mountable COFDM Wireless HD Video Transmitter and ReceiverUS$ 5,000 - 9,000MOQ: 1 Pair
-
Outdoor NLOS COFDM Wireless Video Transmitter ReceiverNegotiableMOQ: 1 Piece
-
UAV Super Mini COFDM Transmitter for Wireless TransmissionNegotiableMOQ: 1 Piece
- Long range transmission distance
- Real-time transmission systems
- Delay time very short less than 500ms
- Perfect image quality, brighter colors and image smoothness.
(we will support video to demonstration it if you sent inquiry)
Product Features:
- Modularized, three proof, low-power consumption design;
- Support system with frequency or inter frequency networking; automatic roaming
- Stable power, adjustable dynamic power rate;
- Encryption: AES 128 bit, can set user’s password;
- IP NLOS transparent data transmission;
Technical Parameters:
Item |
Description |
Working Frequency |
300~800MHz(Customized) |
RF Bandwidth |
2 / 4 / 8MHz |
Modulation Type |
TDD-OFDM |
Communication Method |
TDMA Full Duplex |
Power Output |
≤30dBm |
Band Flatness |
≤ ±0.5dB |
Spurious Spectrum |
≤ -36dBm |
Third-order IMD |
≤ -36dBC |
Receiving Sensitivity |
≤ -100dBm |
Anti-adjacent Frequency Interfere |
≥ 40dB |
Synchronization Control |
GPS |
Network Protocol |
IP/TCP,UDP,HTTP,SMTP etc |
Video Compression |
H.264 |
Video Format |
CIF/D1/720P |
Video Encoding |
64Kbps G.711 |
Audio Input |
Two-channel 12dBm |
Work Temperature |
-30 ~ +70°C |
Battery(12V/7800mA) |
Over 5 Hours |
Power Input |
DC:10V ~ 16V |
Power Consumption |
15 ~ 30W |
Size |
54*128*220(mm) |
Net Weight |
1.7Kg |
Audio Interface |
BNC video Input ,3.5mm Standard headset, 2.5mm output audio |
Control system data connection |
RS232 |
RF Antenna Terminal |
RF Head |
Network Interface |
RJ45 |

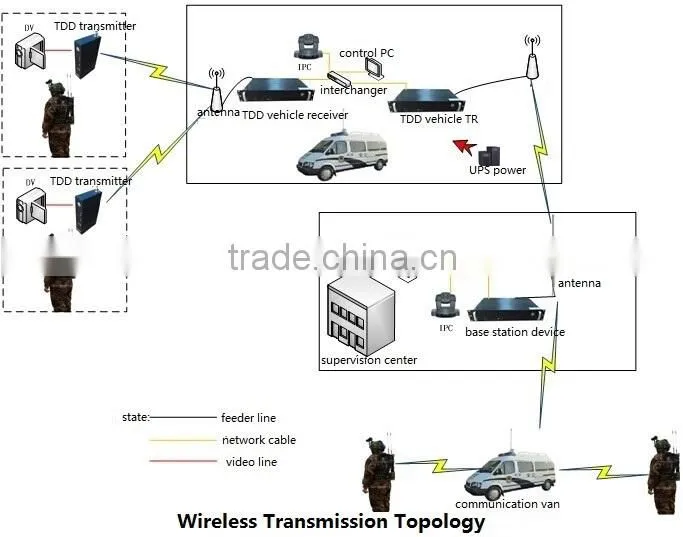

It has been widely used in many fields such as: Police Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Police Technical Support Units, Special Forces, Military Command and Control Posts, Airport, Border Control, Major Incident Support etc.
Our service:
1. we accept all terms of trade
2. we provide professional system design and construction
3. Lifelong maintenance
4. 24-hour technical support
5. we have 10 years experience in wireless transmission area, we are professional factory, so we can provide you:high quality products,better product pre-sales and after-sales service,attractive prices,shorter delivery.
