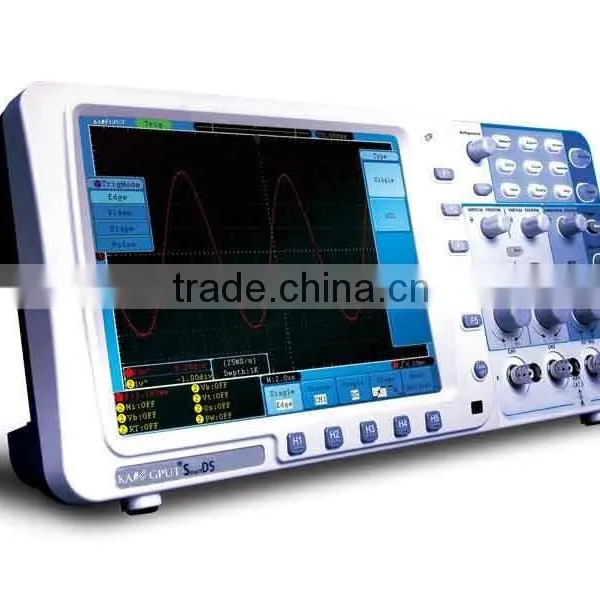

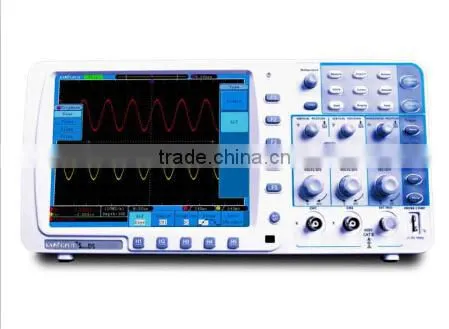

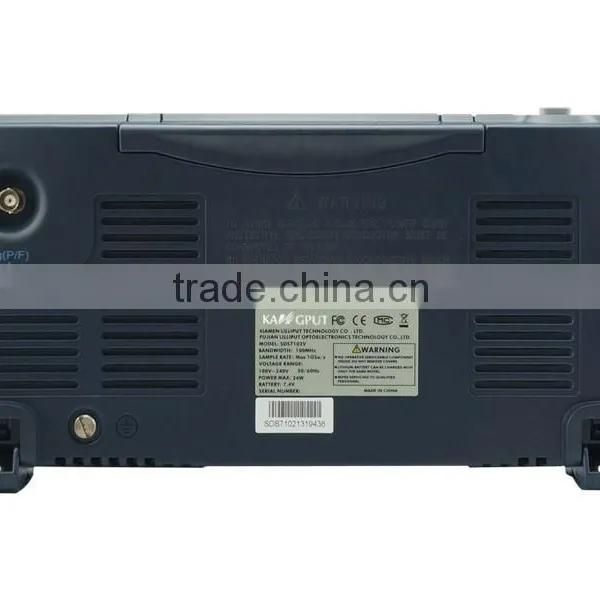

Kangput SDS :Smart DS Series Deep Memory Digital Storage Oscilloscope
Applications:
electronic circuit debugging circuit testing design and manufacture
education and training automobile maintenance and testing
Performance Specifications
Model |
SDS6062 |
|
Bandwidth |
60MHz |
|
Sample Rate |
500MS/s |
|
Horizontal Scale (s/div) |
5ns/div~100s/div,step by 1~2~5 |
|
Rise Time |
≤5.8ns |
|
Display |
8”color LCD, 800 x 600 pixels, 65535 colors |
|
Channel |
2 + 1 (external) |
|
Record Length |
10M |
|
Input Coupling |
DC, AC, and GND |
|
Input Impedance |
1MΩ ± 2%, in parallel with 10pF ± 5pF |
|
Channel Isolation |
50MHz : 100 : 1, 10MHz : 40 : 1 |
|
Max Input Voltage |
400V (PK - PK) (DC + AC, PK - PK) |
|
DC Gain Accuracy |
±3% |
|
DC Accuracy |
average≥16 : ±(3% reading + 0.05 div) for V |
|
Probe Attenuation Factor |
1X, 10X, 100X, 1000X |
|
LF Respond (AC, -3dB) |
≥10Hz (at input, AC coupling, -3dB) |
|
Sampling Rate / Relay Time Accuracy |
±100ppm |
|
Interpolation |
sin (x) / x |
|
|
Interval (T) Accuracy (full bandwidth) |
Single:±(1 interval time + 100ppm × reading + 0.6ns); Average>16 : ±(1 interval time + 100ppm × reading + 0.4ns) |
|
Vertical Resolution (A/D) |
8 bits (2 channels simultaneously) |
|
Vertical Sensitivity |
2mV/div~10V/div |
|
Trigger Type |
Edge, Pulse, Video, Slope, Alternate |
|
Trigger Mode |
Auto, Normal, Single |
|
Trigger Level |
±6 divisions from screen center |
|
Acquisition modes |
Sample, Peak Detect, and Average |
|
Line / Field Frequency (video) |
NTSC, PAL and SECAM standard |
|
Cursor Measurement |
V, and T between cursors |
|
Automatic Measurement |
Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B, Delay A→B, +Width, -Width, +Duty, -Duty |
|
Waveform Math |
+, -, ×, ÷, invert, FFT |
|
Waveform Storage |
15 waveforms |
|
|
Lissajous Figure |
Bandwidth |
full bandwidth |
Phase Difference |
±3 degrees |
|
Communication Interface |
USB, USB flash disk storage, Pass / Fail, LAN, VGA (optional), or RS232 (optional) |
|
Cymometer |
available |
|
Power Supply |
100V - 240V AC, 50/60Hz, CAT Ⅱ |
|
Power Consumption |
< 24W |
|
Fuse |
2A, T class, 250V |
|
Battery (optional) |
7.4V, 8000mA |
|
Dimension (W × H × D) |
340 × 155 × 70 (mm) |
|
Weight (without package) |
1.80 kg |
|

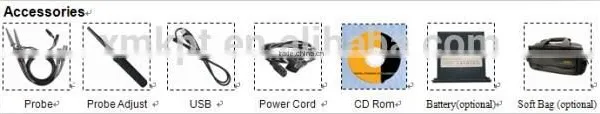

Features:
Bandwidth : 60MHz - 300MHz with dual-channel;
Sample rate : 500MS/s - 3.2GS/s;
10M record length for each channel;
Multi-function : auto-scale, Pass / Fail, and current-measuring;
Supported SCPI;
LAN remote control;
Smart design with easy portability;
Large 8 inch 800 x 600 pixels display;
Optional battery available.
>>Skype:kangput2
